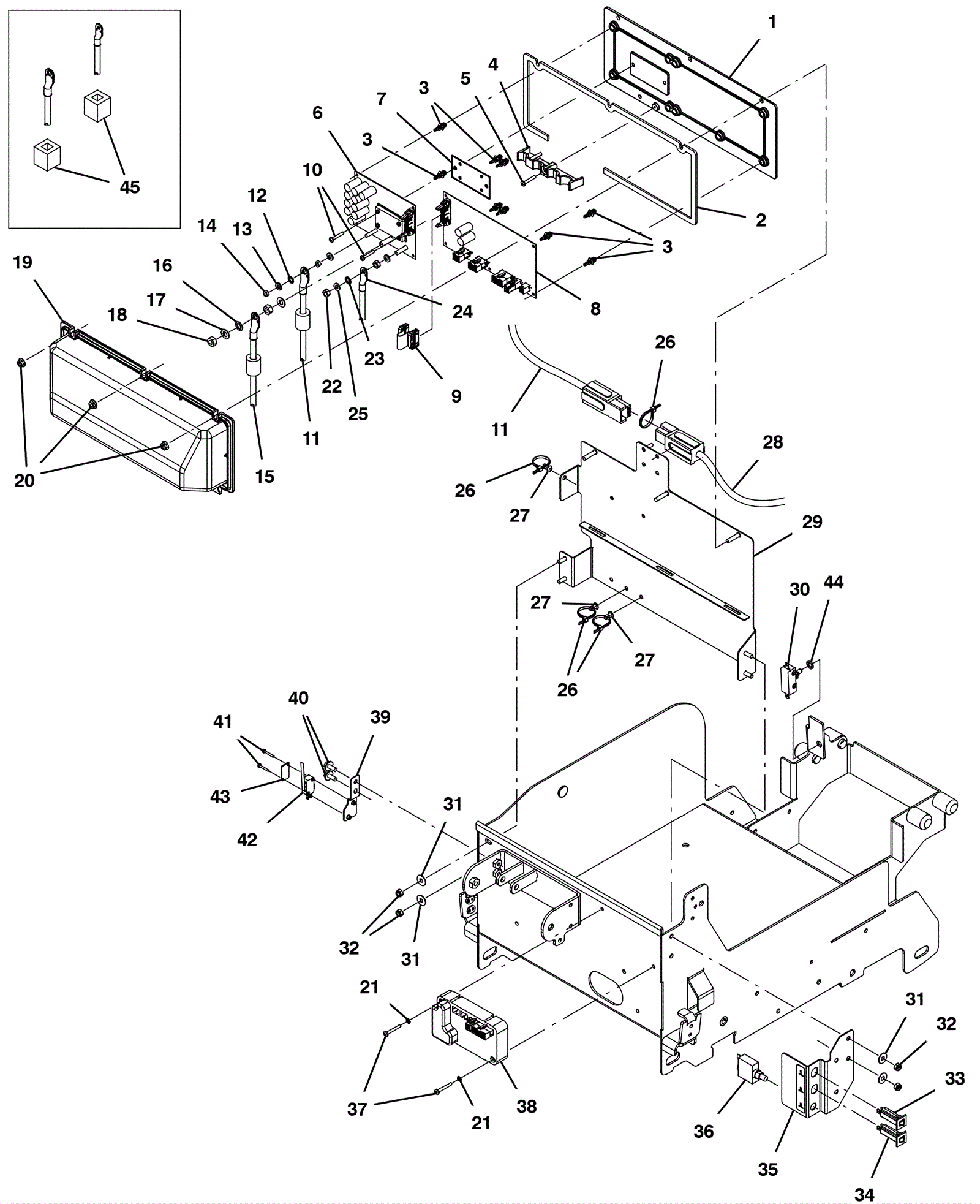

B7 Electrical Components Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-5463 Mounting panel $83.49 1 usually ships 1-5 days
2 275-5464 Circuit board cover gasket $10.12 1 usually ships 5-16 days
3 275-5465 Standoff $1.43 9 usually ships 5-16 days
4 275-5466 Terminal spacer $7.15 1 usually ships 5-16 days
5 275-4705 Screw M4-.7 x25mm pan head phillips $3.96 1 ships same day
6 275-5467 Circuit board bridge kit $705.87 1 (includes 7) ships same day
7 275-5468 Circuit board pad $7.92 1 ships same day
8a 275-5469 Circuit board base kit $393.58 1 (for models with mechanical pad pressure and passive dust control) ships same day
8b 275-5470 Circuit board optional kit $583.11 1 (for models with automated pad pressure and/or active dust control) usually ships 5-16 days
9 275-5471 Ribbon cable assembly $17.60 1 usually ships 5-16 days
10 275-4705 Screw M4-.7 x25mm pan head phillips $3.96 2 ships same day
11a 275-5460 100amp fuse cable assembly $225.72 1 (SPEEDGLEAM 5 and B5) usually ships 5-16 days
11b 275-5462 100amp fuse cable assembly $425.01 1 (B7) ships same day
12 175-4544 Washer M6 locking $4.62 1 ships same day
13 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
14 275-5473 Nut M5 x .8 hex brass $1.54 1 usually ships 1-5 days
15 275-5474 Cable (blue) $39.49 1 usually ships 5-16 days
16 999-1053 Washer 5/16 internal star lock stainless steel $0.99 1 ships same day
17 275-5475 Washer M8-.4 x 1.6mm brass $2.42 1 usually ships 1-5 days
18 275-5476 Nut M8 x 1.25 hex brass (Tennant Industrial) $5.01 1 usually ships 5-16 days
19 275-5477 Control board cover $54.23 1 usually ships 1-5 days
20 999-6694 Nut M6-1 hex serrated flange stainless steel $0.99 3 ships same day
21 999-1083 Washer #8 internal star lock stainless steel $0.99 2 ships same day
22 275-5479 Nut M6 x 1 (Tennant Industrial) $2.17 1 usually ships 5-16 days
23 175-4544 Washer M6 locking $4.62 1 ships same day
24 275-5441 Cable assembly $151.47 1 usually ships 5-16 days
25 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
26 175-7795 Cable tie $3.85 4 ships same day
27 275-5370 Clip $1.43 3 (SPEEDGLEAM 5 and B5) usually ships 1-5 days
28 275-5459 Cable (red) $72.82 1 usually ships 5-16 days
29 275-5481 Panel mounting weldment $116.60 1 (SPEEDGLEAM 5 and B5) usually ships 1-5 days
30 275-5482 Push switch $25.19 1 usually ships 5-16 days
31 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 (SPEEDGLEAM 5 and B5) ships same day
32a 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 (SPEEDGLEAM 5 and B5) ships same day
32b 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 (B7) ships same day
33 275-5483 2.5amp circuit breaker $12.76 1 usually ships 5-16 days
34 175-5969 15amp circuit breaker (Tennant Industrial) $7.52 1 ships same day
35 275-5484 Circuit breaker bracket $9.68 1 usually ships 1-5 days
36 175-2151 30amp circuit breaker $15.18 1 ships same day
37 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel $0.99 2 usually ships 11-24 days
38 275-5485 Drive controller $705.87 1 (requires Tennant True service or an authorized Tennant service provider) usually ships 5-16 days
39 375-0047 Switch bracket $13.97 1 usually ships 5-16 days
40 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
41 999-1040 Screw M3-.5 x 20mm pan head $0.99 2 ships same day
42 275-5433 Switch $9.35 1 ships same day
43 175-1200 Switch backing plate $12.87 1 ships same day
44 999-0201 Washer 3/8 internal star lock $0.99 1 ships same day
45a 275-5460 100amp fuse cable assembly $225.72 2 usually ships 5-16 days
45b 275-5474 Cable (blue) $39.49 2 (includes ferrite) usually ships 5-16 days
