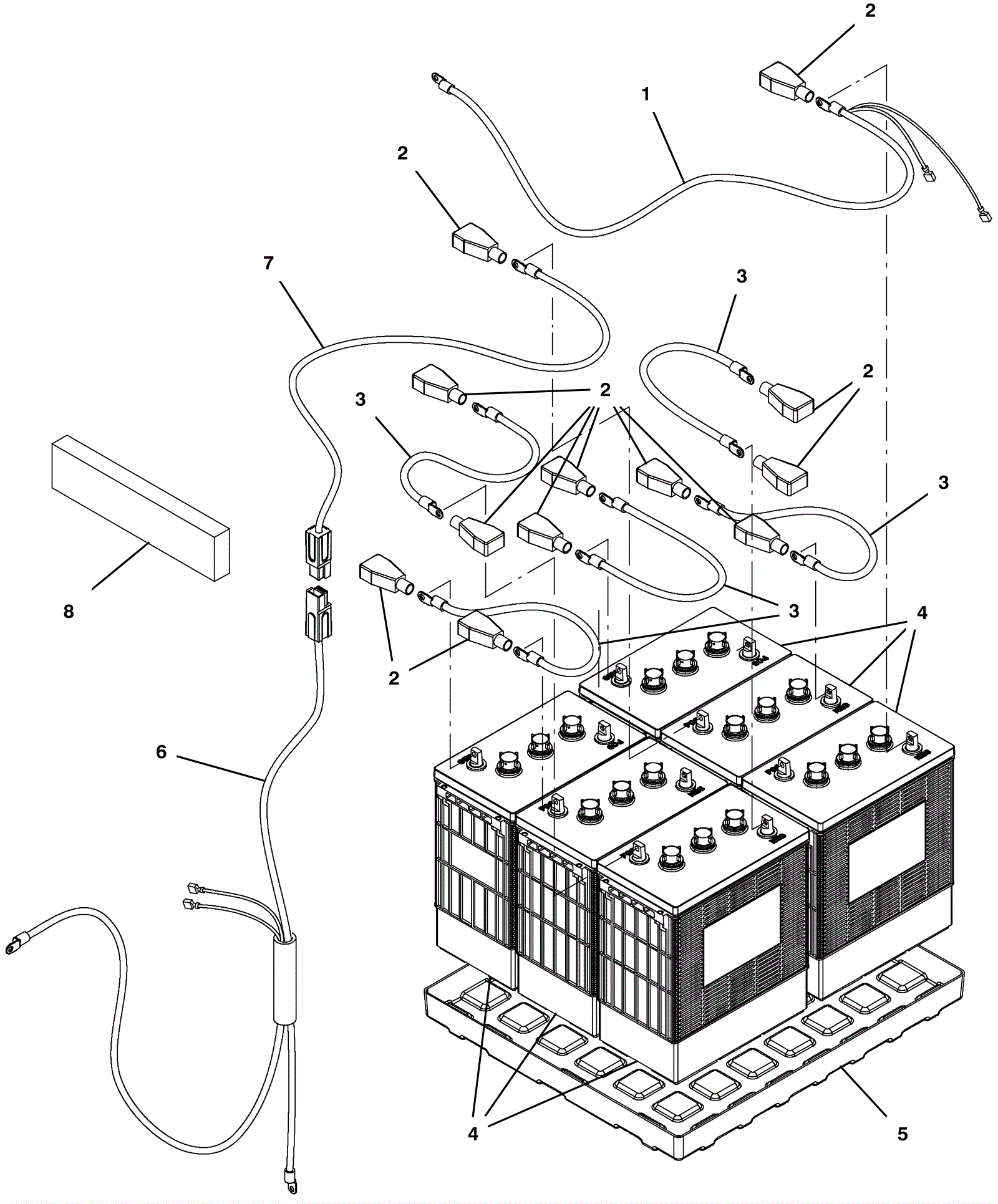

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-5441
|
Cable assembly |
1 |
|
|
2 |
275-7113
|
Terminal boot (black) |
12 |
|
|
3 |
275-5457
|
Battery jumper cable |
5 |
|
|
4a |
162-0003
|
6V 225Ah wet battery (SNSR) |
6 |
|
|
4b |
162-0005
|
6V 305Ah wet battery (SNSR) |
6 |
|
|
4c |
162-0046
|
6V 335Ah AGM battery (Group J305) (SNSR) |
6 |
|
|
5 |
275-5461
|
Battery tray |
1 |
|
|
6 |
275-5462
|
100amp fuse cable assembly |
1 |
|
|
7 |
275-5459
|
Cable (red) |
1 |
|
|
8 |
175-1352
|
Battery insert |
2 |
(AGM sealed) |
|
N/S |
275-5948
|
Battery terminal cover (black) |
12 |
|
|
