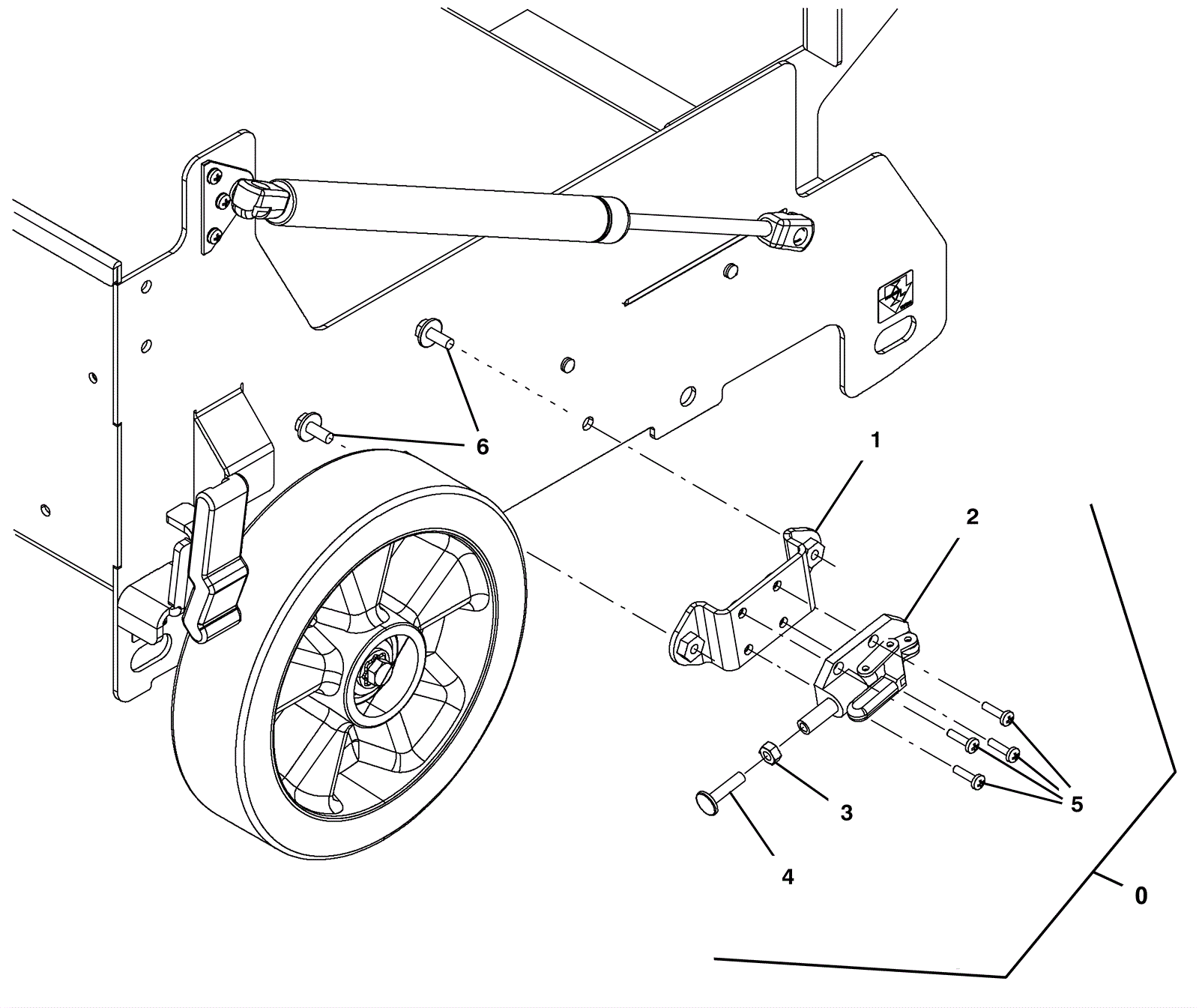

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
275-5416
|
Parking brake kit |
1 |
(includes 1-6) |
usually ships 1-5 days |
1 |
275-5417
|
Brake weldment (OBSOLETE) |
1 |
|
usually ships 1-5 days |
2 |
275-5960
|
Parking brake clamp |
1 |
|
usually ships 1-5 days |
3 |
999-1308
|
Nut M6-1 hex stainless steel |
1 |
|
usually ships 11-14 days |
4 |
275-1444
|
Screw M6 x 25mm stainless steel |
1 |
|
usually ships 16-21 days |
5 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
4 |
|
usually ships 11-14 days |
6 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
usually ships 8-9 days |
