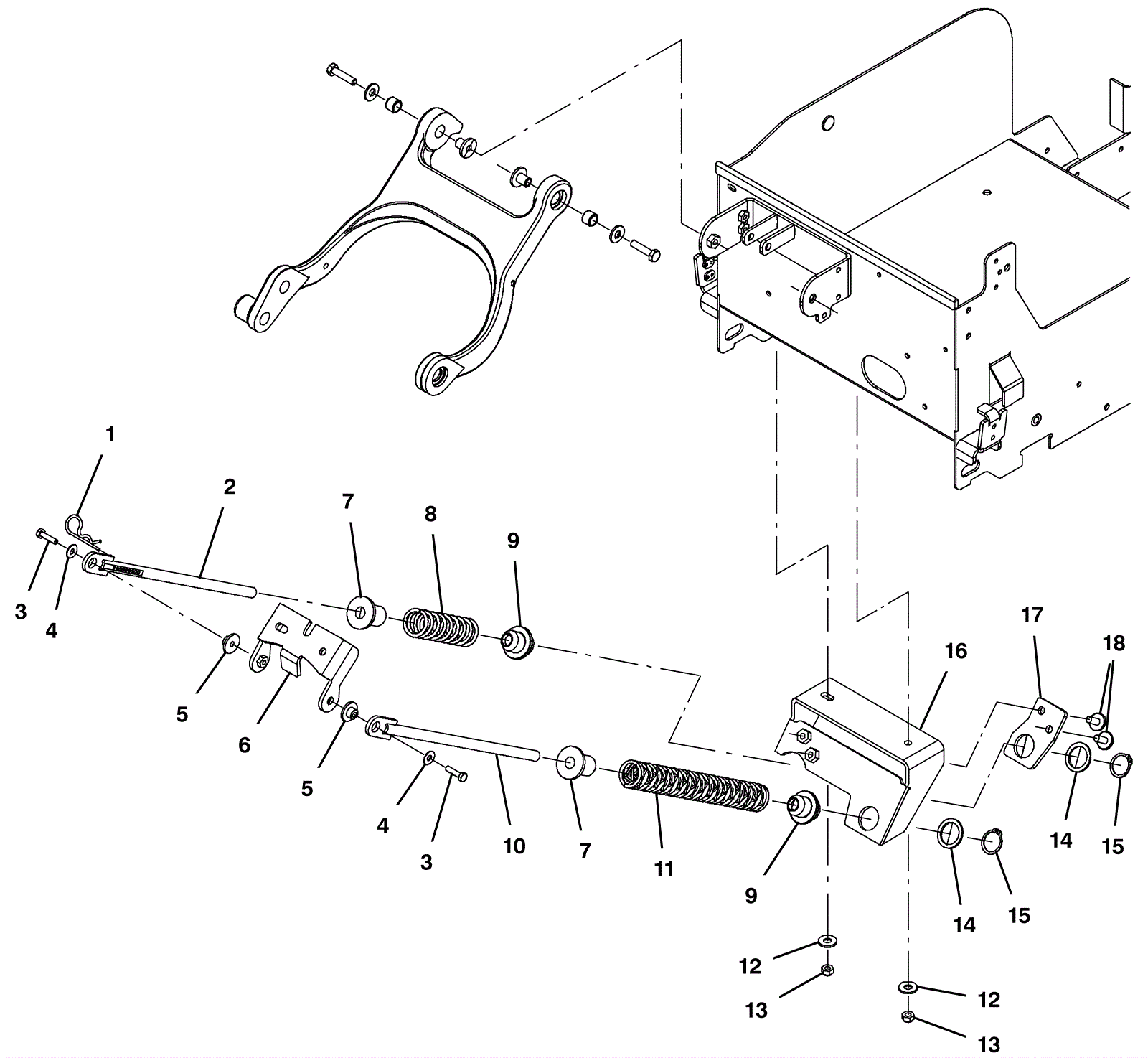

B7 Down Pressure Assembly - Mechanical

#PartDescriptionPriceReqNotesAvailability
1 175-2106 Cotter hair pin $3.30 1 ships same day
2 275-5405 Adjustable guide rod $107.36 1 usually ships 5-16 days
3 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 2 ships same day
4 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
5 275-5376 Bushing $3.96 2 ships same day
6 275-5391 Guide weldment $43.12 1 usually ships 5-16 days
7 275-5397 Spring bushing $9.79 2 ships same day
8 375-1659 Compression spring $27.17 1 usually ships 5-16 days
9 275-5395 Guide bushing $8.03 2 ships same day
10 275-5398 Guide rod $30.69 1 ships same day
11a 275-5401 Spring $37.62 1 (B5 and SPEEDGLEAM 5) usually ships 5-16 days
11b 475-1442 SPRING, CMPR, 1.35OD .156WIR 11L[PURPLE] $38.28 1 (B7) (24 inch) usually ships 5-16 days
11c 375-1384 Compression spring $45.21 1 (B7) (27 inch) usually ships 5-16 days
12 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
13 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 usually ships 11-24 days
14 275-5399 Flat nylon washer $2.42 2 ships same day
15 275-5400 Retaining ring $1.43 2 ships same day
16 275-5402 Rod bracket weldment $75.02 1 usually ships 5-16 days
17 275-5406 Spring plate $11.99 1 usually ships 5-16 days
18 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 2 ships same day
