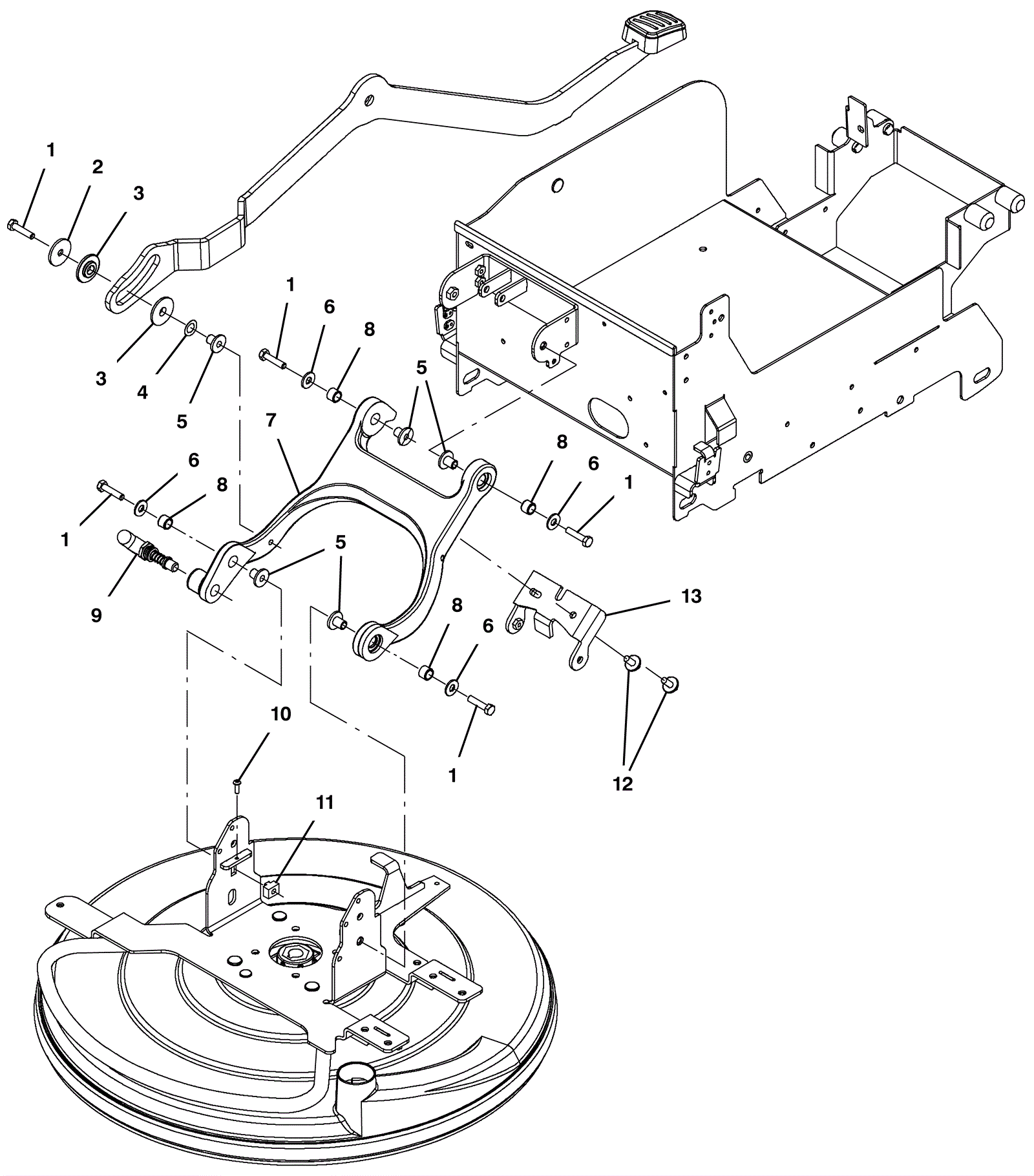

B7 Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 5 ships same day
2 275-5384 Flat washer (Tennant Industrial) $9.50 1 usually ships 10-13 days
3 275-5385 Roller $10.01 2 usually ships 10-13 days
4 999-6674 Washer 5/16 x 1 1/2 wave stainless steel $6.41 1 ships same day
5 275-5386 Bushing $8.03 5 usually ships 10-13 days
6 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
7 275-5387 Lifting arm $220.22 1 (includes 8) ships same day
8 275-5388 Bearing kit (pkg of 4) $90.75 1 usually ships 10-13 days
9 275-5389 Spring pin $55.77 1 usually ships 10-13 days
10 999-1403 Screw M8 x 16mm torx head $2.90 1 ships same day
11 375-1348 Nut M8 x 1.25mm $11.55 1 usually ships 10-13 days
12 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 2 ships same day
13 275-5391 Guide weldment $47.08 1 usually ships 10-13 days
