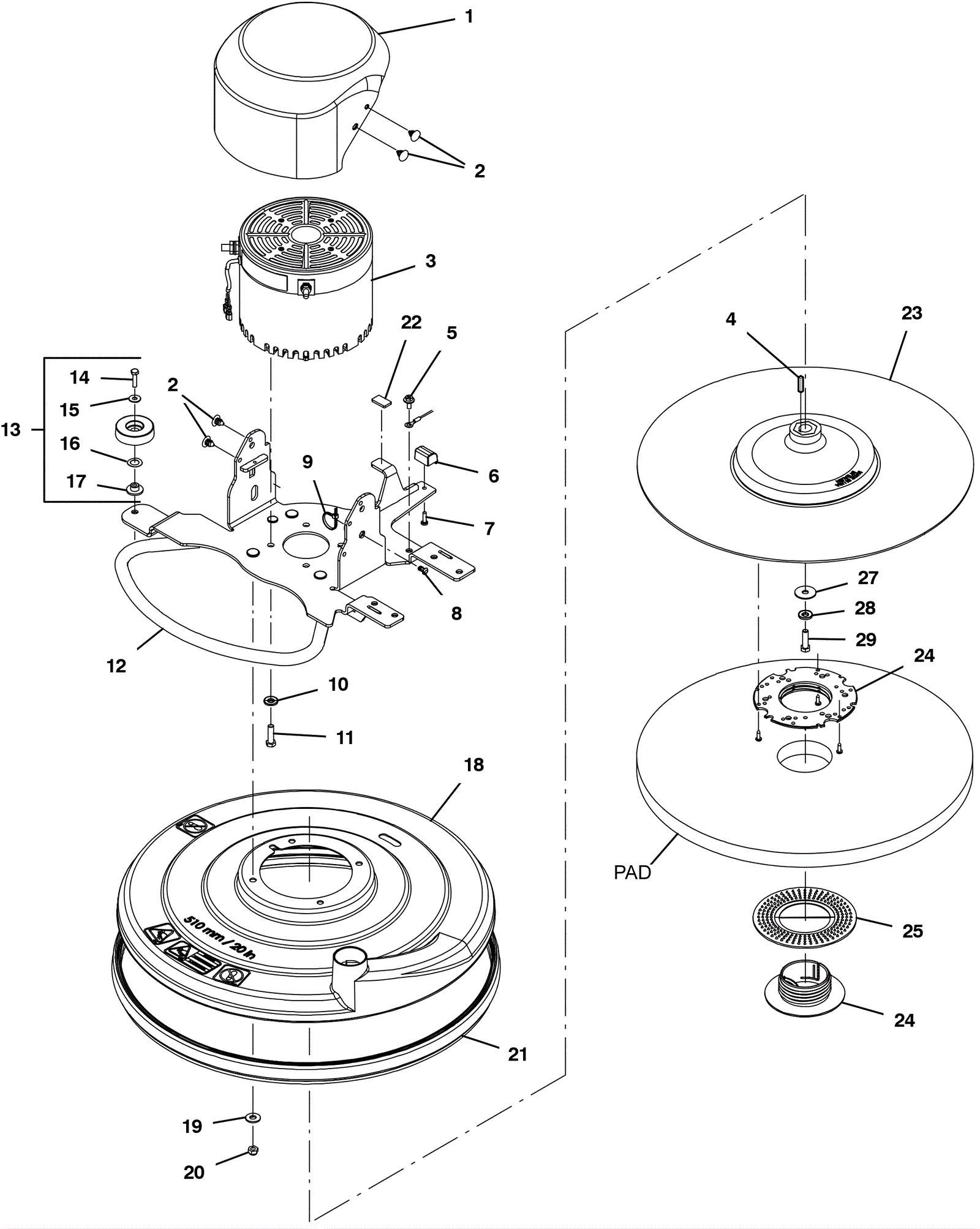

B5 Head Assembly

#PartDescription ReqNotesAvailability
1a 175-4197 Motor cover 1 (SPEEDGLEAM 5 before SN 11044942) usually ships 16-21 days
1c 275-5365 Motor cover 1 (B5 and B7 before SN 11044940) usually ships 16-21 days
2 991-5122 1/4 nylon tree push-in rivet 4 usually ships 13-17 days
3a 275-5366 Motor 1 (includes 3c) (SPEEDGLEAM 5 and B5) usually ships 16-21 days
3b 275-5367 Motor 1 (includes 3c) (B7) usually ships 16-21 days
3c 275-5368 Carbon brush assembly 1 usually ships 16-21 days
4 175-5356 Square keyway 1 usually ships 16-21 days
5 999-1383 Screw M6-1 x 16mm hex head stainless steel 1 usually ships 8-9 days
6 275-5369 Roller guide 1 usually ships 16-21 days
7 175-7660 Screw #10-14 x .675 shoulder self-tapping 1 usually ships 16-21 days
8 275-5370 Clip 1 usually ships 1-5 days
9 175-7795 Cable tie 1 usually ships 16-21 days
10 999-1407 Washer 5/16 belleville 4 usually ships 11-14 days
11 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel 4 usually ships 11-14 days
12a 375-0045 20 inch motor weldment 1 (SPEEDGLEAM 5 and B5) usually ships 16-21 days
12b 475-2475 24 inch motor weldment 1 (B7) (after SN 10729500) usually ships 16-21 days
12c 275-5372 24 inch motor weldment 1 (B7) (before SN 10729501) usually ships 1-5 days
12d 475-2455 27 inch motor weldment 1 (B7 after SN 10729500) usually ships 16-21 days
12e 275-5381 27 inch motor weldment 1 (B7 before SN 10729501) usually ships 16-21 days
13 275-5373 Bumper wheel kit 1 (includes 14-17) usually ships 16-21 days
14 999-1087 Bolt M6-1 x 25mm hex head stainless steel 1 usually ships 11-14 days
15 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1 usually ships 11-14 days
16 999-6674 Washer 5/16 x 1 1/2 wave stainless steel 1 usually ships 11-14 days
17 275-5376 Bushing 1 usually ships 16-21 days
18a 275-5377 20 inch (500mm) dust shroud 1 (SPEEDGLEAM 5 and B5) usually ships 16-21 days
18b 275-5378 24 inch (600mm) dust shroud 1 (B7) usually ships 16-21 days
18c 275-5382 27 inch (680mm) dust shroud 1 (B7) usually ships 16-21 days
19 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4 usually ships 11-14 days
20 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4 usually ships 11-14 days
21a 275-7528 20 inch skirt assembly 1 (SPEEDGLEAM 5 and B5) usually ships 16-21 days
21b 275-7008 24 inch (600mm) skirt assembly 1 (B7) usually ships 16-21 days
21c 275-7015 27 inch (680mm) skirt assembly 1 (B7) usually ships 16-21 days
22 175-2869 Gasket 1 usually ships 16-21 days
23a 275-7527 20 inch (500mm) pad driver assembly 1 (includes 24-25) (SPEEDGLEAM 5 and B5) usually ships 16-21 days
23b 275-5379 24 inch (600mm) pad driver assembly 1 (includes 24-25) (B7) usually ships 16-21 days
23c 275-7525 27 inch (680mm) pad driver assembly 1 (includes 24-25) (B7) usually ships 16-21 days
24 175-0182 Universal center lock 1 usually ships 16-21 days
25 275-7012 Locking collar 1 usually ships 16-21 days
27 999-1407 Washer 5/16 belleville 1 usually ships 11-14 days
28 999-0617 Washer 3/8 x 1 flat stainless steel 1 usually ships 11-14 days
29 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel 1 usually ships 11-14 days
