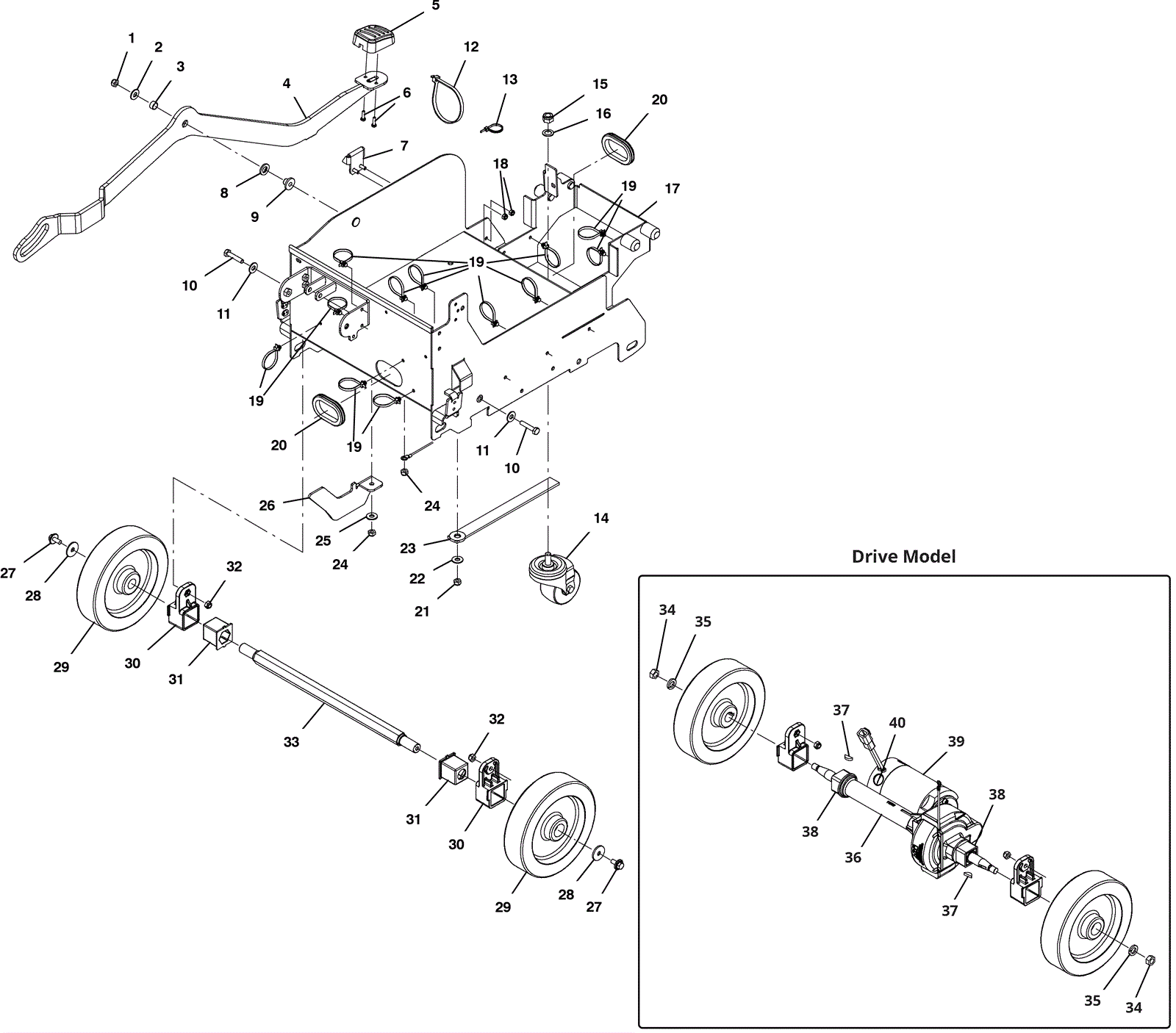

B7 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 usually ships 11-24 days
2 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
3 275-5191 Bearing $10.12 1 usually ships 5-16 days
4a 275-5192 Pedal weldment $76.01 1 (SPEEDGLEAM 5 and B5) usually ships 5-16 days
4b 275-5361 Pedal weldment $139.26 1 (B7) ships same day
5 275-5193 Pedal cover $12.87 1 ships same day
6 175-7660 Screw #10-14 x .675 shoulder self-tapping $4.18 2 ships same day
7 175-7883 Foot pedal locking bracket $53.90 1 usually ships 5-16 days
8 999-9214 Washer M8 flat nylon $0.99 1 usually ships 11-24 days
9 275-5194 Bushing $10.12 1 usually ships 5-16 days
10 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 2 ships same day
11 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
12 175-2226 Nylon wire tie $3.30 1 ships same day
13 175-7795 Cable tie $3.85 1 ships same day
14 275-5195 Caster wheel kit $112.86 1 (includes 15-16) usually ships 5-16 days
15 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 2 ships same day
16 175-1825 Washer $3.85 2 ships same day
17a 275-5196 Main frame weldment $1,551.44 1 (SPEEDGLEAM 5 and B5 before SN 11047953) usually ships 5-16 days
17b 375-9323 Frame weldment $1,637.21 1 (SPEEDGLEAM 5 and B5 after SN 11047952) usually ships 5-16 days
17c 275-5362 Main frame weldment $1,578.06 1 (B7 before SN 11049836) usually ships 5-16 days
17d 375-9314 Frame weldment $1,868.02 1 (B7 after SN 11049835) usually ships 5-16 days
18 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
19 275-5197 Fir tree clip $1.65 15 usually ships 5-16 days
20 275-9295 Rubber grommet $4.68 2 usually ships 1-5 days
21 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 3 usually ships 11-24 days
22 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
23 275-9261 Static strip with grommet $25.74 1 usually ships 5-16 days
24 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 usually ships 11-24 days
25 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
26a 275-5198 Bracket $26.07 1 (SPEEDGLEAM 5 and B5) usually ships 5-16 days
26b 475-0757 BRACKET, FOLLOWER, HEAD $10.12 1 (B7) usually ships 5-16 days
27 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 2 (push) ships same day
28 275-7133 Washer .34B x 1.25D x .11 flat stainless steel $4.95 2 (push) ships same day
29a 275-5199 Wheel $289.54 2 (SPEEDGLEAM 5 push and B5 push before SN 11047953) ships same day
29b 375-3176 Wheel with bearing $157.63 2 (SPEEDGLEAM 5 push and B5 push after SN 11047952) ships same day
29c 275-1449 Wheel with taper $165.11 2 (SPEEDGLEAM 5 drive, B5 drive and B7 before SN 11049836) ships same day
29d 375-3173 Wheel with taper $149.60 2 (SPEEDGLEAM 5 drive, B5 drive and B7 after SN 11049835) ships same day
29e 991-7142 Wheel with taper (Obsolete) $101.57 2 (NON-OEM) usually ships 5-16 days
30 275-5900 Axle mount $14.96 2 usually ships 5-16 days
31 275-5901 Grommet $8.03 2 (push) usually ships 5-16 days
32 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 usually ships 11-24 days
33 275-5360 Axle $109.34 1 (push) usually ships 1-5 days
34 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 2 (SPEEDGLEAM 5 drive, B5 drive and B7 drive) ships same day
35 175-1825 Washer $3.85 2 (SPEEDGLEAM 5 drive, B5 drive and B7 drive) ships same day
36a 275-5363 Transaxle $1,358.83 1 (includes 37-40) (SPEEDGLEAM 5 drive and B5 drive) usually ships 5-16 days
36b 275-5364 Transaxle $1,514.15 1 (includes 37-40) (B7) usually ships 5-16 days
37 275-1448 Square keyway $3.30 2 (SPEEDGLEAM 5 drive, B5 drive and B7 drive) ships same day
38 175-3660 Transaxle sleeve $10.12 2 (SPEEDGLEAM 5 drive, B5 drive and B7 drive) usually ships 5-16 days
39 175-4018 24V transaxle motor $783.64 1 (includes 40) (SPEEDGLEAM 5 drive, B5 drive and B7 drive) usually ships 5-16 days
40 175-4019 Carbon brush kit (pkg of 4) $125.62 1 (SPEEDGLEAM 5 drive, B5 drive and B7 drive) usually ships 5-16 days
