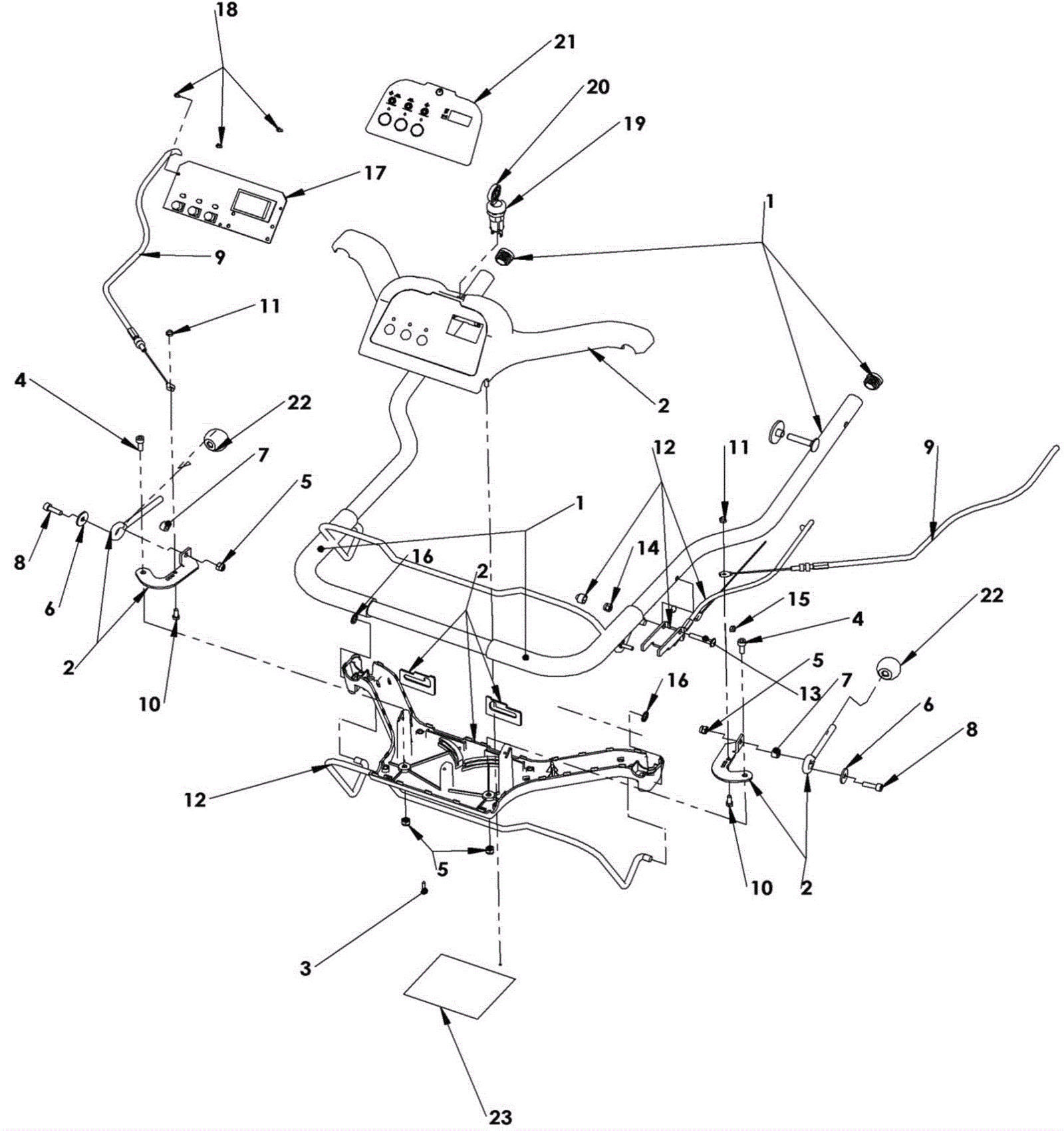

S9 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-6547 Handle kit $346.39 1 usually ships 5-16 days
2 275-6548 Instrument panel kit $158.95 1 (includes 3-8) ships same day
3 999-1040 Screw M3-.5 x 20mm pan head $0.99 6 ships same day
4 999-1268 Screw M6-1 x 12mm socket head stainless steel $0.99 2 ships same day
5 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 4 ships same day
6 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
7 N/A Not available Call for price 2 (sleeve) (only available with 2) usually ships 3-26 days
8 999-1320 Screw M6-1 x 20mm socket head stainless steel $0.99 2 ships same day
9 375-1465 Side brush lift and propel cable kit $476.74 1 (includes 10-11) ships same day
10 999-1322 Screw M5-.8 x 20mm hex head stainless steel $0.99 2 ships same day
11 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 2 ships same day
12 275-6519 Propel bail and cable kit $281.05 1 (includes 13-16) usually ships 5-16 days
13 N/A Not available Call for price 2 (screw M6-1 x 35 lens head) (only available with 12) usually ships 3-26 days
14 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
15 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 1 ships same day
16 N/A Not available Call for price 2 (retaining ring) (only available with 12 and 275-6735) usually ships 3-26 days
17 275-6549 Controller kit $1,036.97 1 (includes 18) ships same day
18 999-1665 Screw M2.9 x 13mm pan head phillips thread cutting $0.99 3 usually ships 1-5 days
19a 175-7872 Key switch with 2 keys $53.13 1 (includes 20) usually ships 1-5 days
19b 991-5161 Key switch with key and ring $16.04 1 (NON-OEM) ships same day
20 991-1634 Key (pkg of 2) $8.54 1 usually ships 3-10 days
21 275-6551 Instrument panel decal $49.72 1 usually ships 5-16 days
22 275-6523 Knob kit $110.55 1 ships same day
23 275-6533 Decal kit $186.78 1 usually ships 1-5 days
