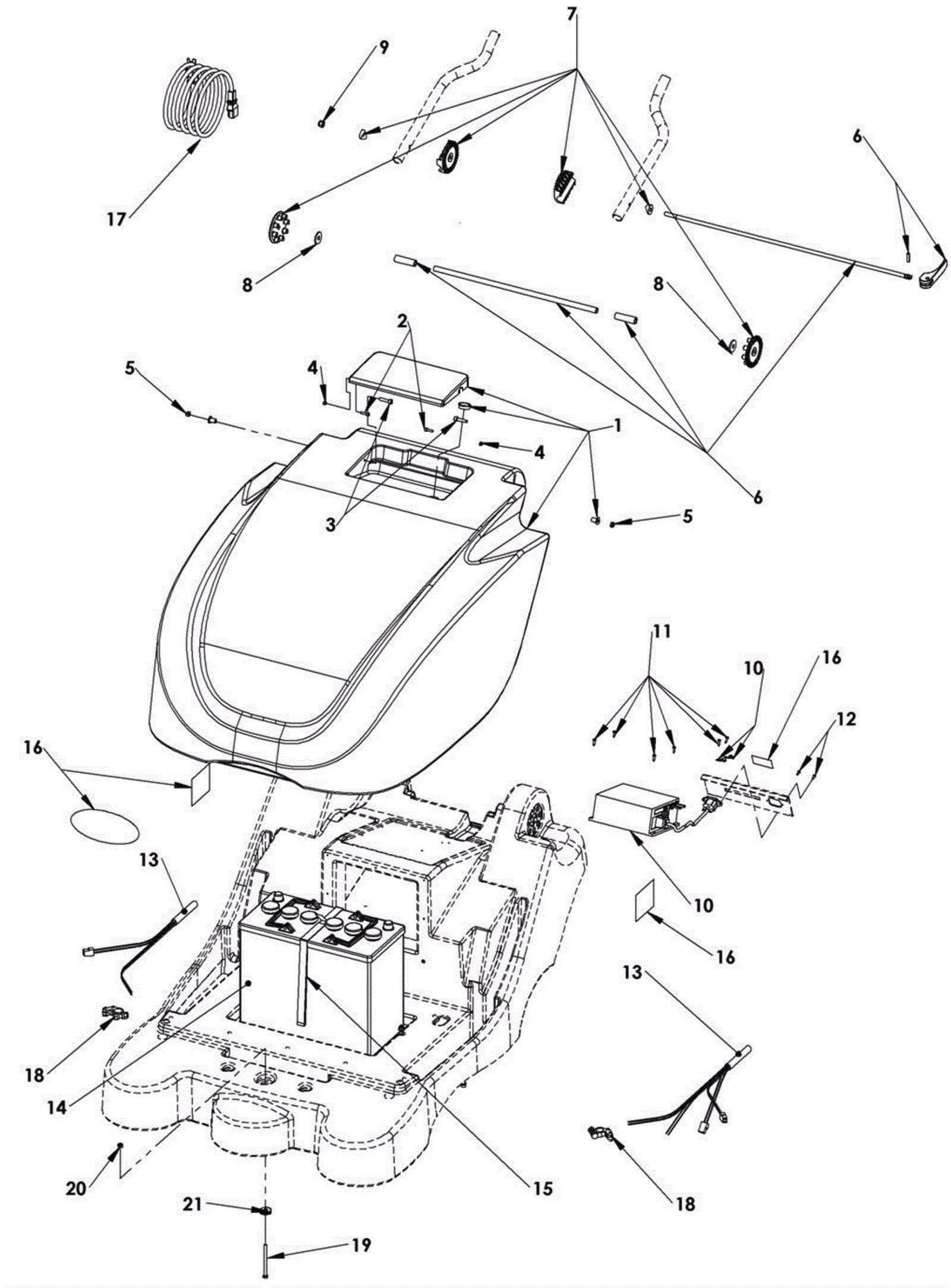

S9 Cover and Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-6540 Front cover kit $819.28 1 (includes 2-5, 20-21) usually ships 1-5 days
2 999-1660 Screw M4-.7 x 16mm socket head stainless steel $0.99 2 ships same day
3 999-1300 Screw M6-1 x 25mm socket head stainless steel $1.10 2 usually ships 1-5 days
4 999-0955 Nut M4-.7 hex nylon lock $1.52 2 ships same day
5 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
6 275-6541 Handle rod and lever kit $90.97 1 usually ships 5-16 days
7 275-6542 Handle pivot disc kit $82.83 1 (includes 8-9) usually ships 5-16 days
8 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
10 275-6543 Charger kit $1,035.76 1 (includes 11-12) usually ships 5-16 days
11 999-1661 Screw M3-.5 x 13mm pan head thread cutting $0.99 6 usually ships 1-5 days
12 999-1662 Bolt M3-.5 x 8mm hex head stainless steel $0.99 2 usually ships 1-5 days
13 275-6544 Wiring harness kit $590.26 1 usually ships 1-5 days
14 162-0042 12V 115Ah AGM battery (Group 31) $500.50 1 usually ships 4-19 days
15 275-6513 Battery and fan bracket kit $869.77 1 usually ships 5-16 days
16 275-6533 Decal kit $186.78 1 (includes 1 Tennant logo decal, 2 S9 decals, 1 warning decal, 2 side brush decal, 2 main brush decal and 1 shaker decal) usually ships 1-5 days
17 275-6488 16/3 power cord 8 foot $49.39 1 usually ships 5-16 days
18 275-6546 Battery terminal clamp kit $33.88 1 usually ships 5-16 days
19 999-1609 Bolt M6-1 x 90mm hex head stainless steel $3.75 1 ships same day
20 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 1 ships same day
21 N/A Not available Call for price 1 (knurled knob M6) (only available with 1 and 275-6523) usually ships 3-26 days
