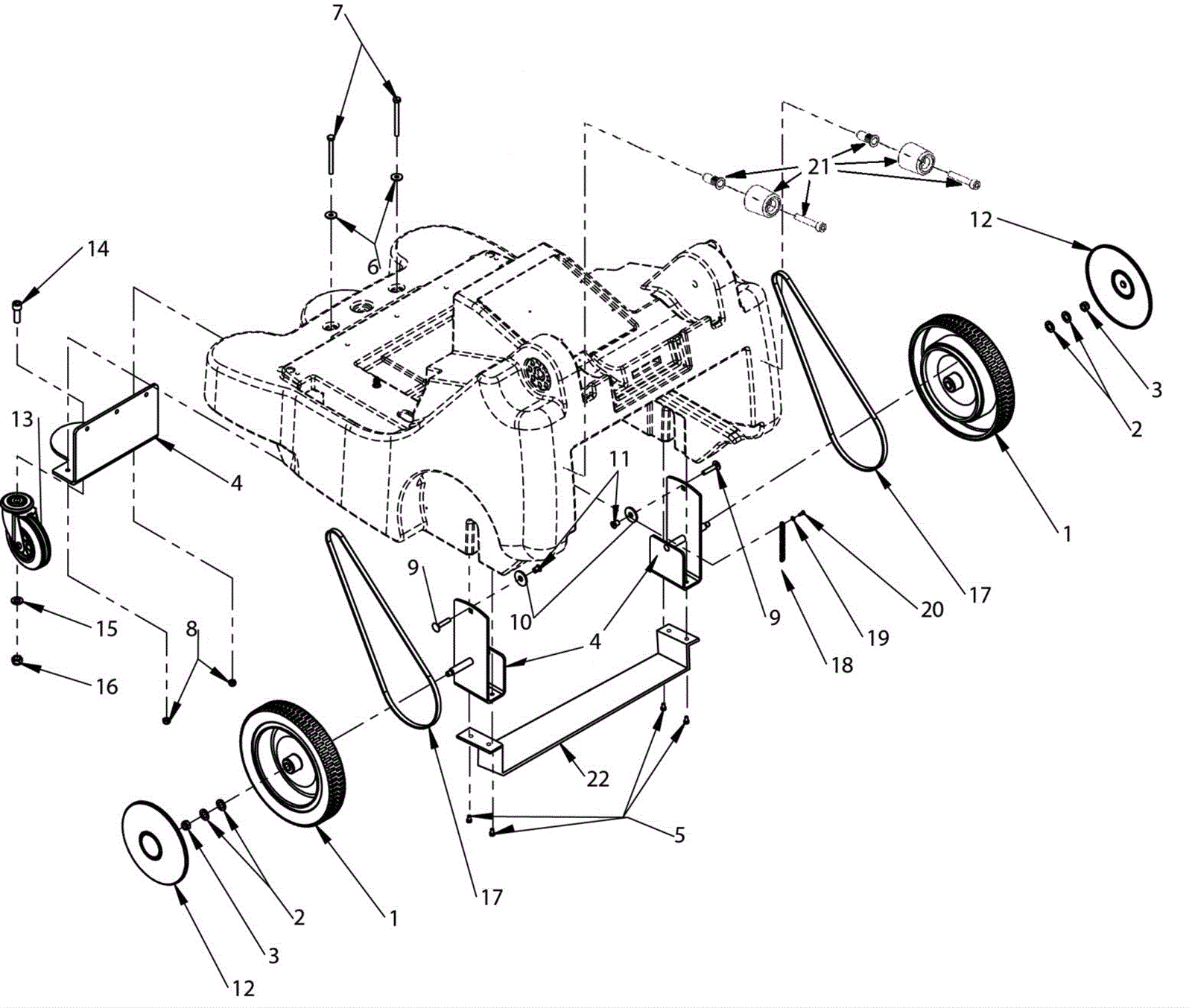

S9 Wheel and Caster Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-6506 Wheel kit $123.00 2 (includes 2-3) usually ships 5-16 days
2 999-1639 Washer M14 flat stainless steel $1.25 4 ships same day
3 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
4 275-6507 Wheel mounting kit $334.20 1 (includes 5-11) usually ships 5-16 days
5 999-1647 Screw M6-1 x 16mm socket head stainless steel $0.99 4 ships same day
6 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
7 999-1640 Screw M8-1.25 x 90mm hex head stainless steel $3.39 2 usually ships 1-5 days
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
9 999-1641 Bolt M8-1.25 x 40mm carriage stainless steel $2.86 2 ships same day
10 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
11 N/A Not available Call for price 2 (sleeve nut M8) (only available with 4) usually ships 3-26 days
12 275-6508 Hub cap kit (teal) $23.40 1 ships same day
13 275-6509 Caster wheel kit $107.30 1 (includes 14-16) ships same day
14 999-1642 Screw M12-1.75 x 35mm socket head stainless steel $4.74 1 usually ships 1-5 days
15 999-1346 Washer M12 flat stainless steel $0.99 1 ships same day
16 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 1 ships same day
17 375-0040 Toothed belt (pkg of 2) $84.70 1 usually ships 5-16 days
18 275-6511 Static strap kit $3.60 1 (includes 19-20) usually ships 5-16 days
19 999-9089 Washer M4 flat stainless steel $0.99 1 ships same day
20 999-1643 Screw M3.9-1.4 x 13mm pan head self drilling zinc $0.99 1 usually ships 1-5 days
21 375-3994 Bumper kit $53.70 1 usually ships 5-16 days
22 375-3993 Rear wheel support kit $91.10 1 usually ships 5-16 days
