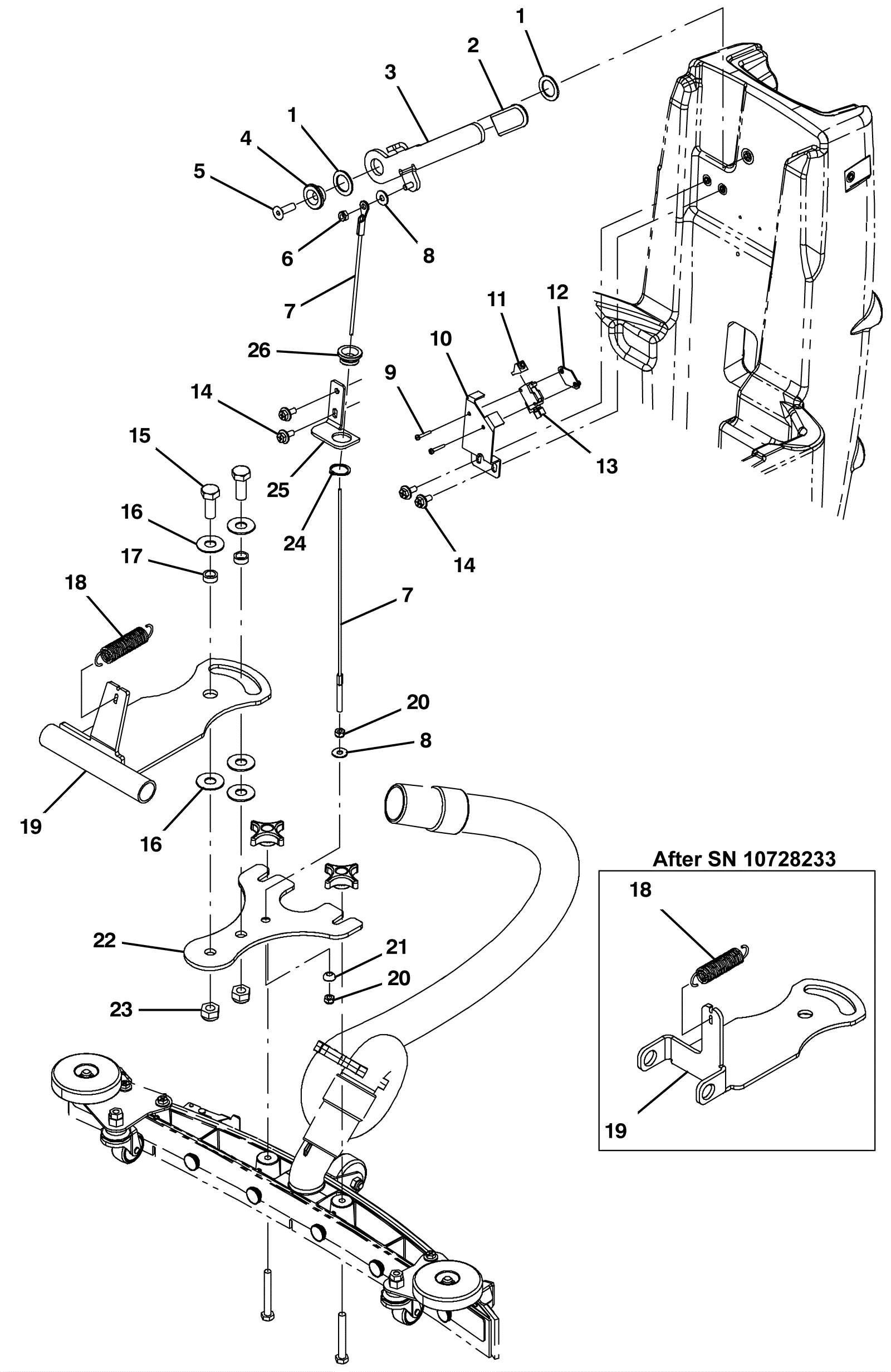

T2 Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-9550 WASHER, FLAT, 0.79B 1.18D .06, NYL (Tennant Industrial) $4.60 2 usually ships 1-5 days
2 275-6467 Vinyl lever grip $3.30 1 usually ships 1-5 days
3 275-6468 Squeegee lever $31.79 1 usually ships 1-5 days
4 275-6469 Retainer bushing $21.45 1 usually ships 1-5 days
5 175-9240 Screw M8-1.25 x 25mm flat head socket nylok stainless steel $4.88 1 usually ships 10-16 days
6 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
7 275-6470 Cable $22.77 1 usually ships 10-16 days
8 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 12 ships same day
9 999-1040 Screw M3-.5 x 20mm pan head $0.99 2 ships same day
10 275-6471 Vacuum switch mounting plate $23.21 1 usually ships 10-16 days
11 175-4723 Switch boot $15.40 1 usually ships 10-16 days
12 175-7839 Switch plate $33.66 1 usually ships 10-16 days
13 175-4273 Switch $14.74 1 (vacuum) ships same day
14 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 4 ships same day
15 999-6696 Bolt M12-1.75 x 30mm stainless steel hex cap screw $5.19 2 ships same day
16 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 5 ships same day
17 175-7890 Sleeved bushing $4.88 2 ships same day
18 175-7889 Extension spring $10.34 1 usually ships 10-16 days
19a 275-6472 Squeegee lift bracket $127.93 1 (before SN 10728234) usually ships 10-16 days
19b 375-1281 Squeegee lift bracket $42.24 1 (after SN 10728233) usually ships 10-16 days
20 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
21 275-6473 Spherical washer $12.10 1 usually ships 10-16 days
22 275-6474 Squeegee pivot bracket $39.49 1 usually ships 10-16 days
23 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 2 ships same day
24 175-3008 Retaining ring $4.09 1 ships same day
25 275-6475 Cable guide bracket $13.31 1 usually ships 1-5 days
26 175-8735 Cable bushing $6.05 1 ships same day
