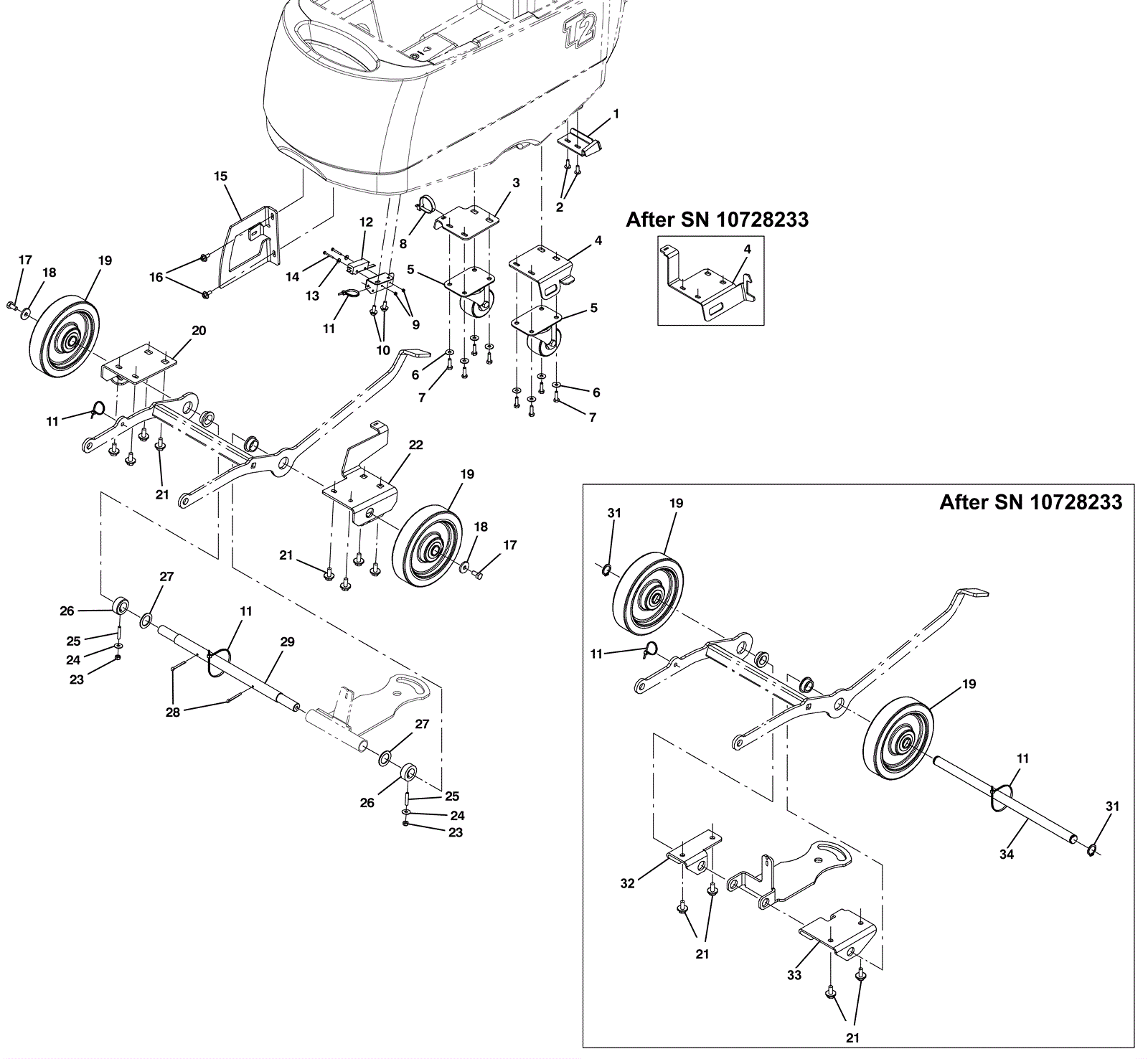

T2 Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-6437 Foot pedal locking bracket $44.55 1 usually ships 10-16 days
2 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 2 ships same day
3 275-6438 Right hand caster bracket $20.13 1 (before SN 10728233) usually ships 1-5 days
4a 275-6439 Left hand caster bracket $25.63 1 (before SN 10728233) usually ships 1-5 days
4b 375-1276 Caster bracket $44.11 1 (after SN 10728233) usually ships 10-16 days
5 275-6261 Swivel caster wheel $224.40 2 usually ships 10-16 days
6 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
7 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 8 ships same day
8 175-2226 Nylon wire tie $4.49 1 ships same day
9 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
10 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
11 175-7795 Cable tie $5.15 3 ships same day
12a 175-0337 Snap switch $38.06 1 (brush) usually ships 10-16 days
13 999-1158 Washer #6 flat stainless steel $0.99 2 ships same day
14 999-1221 Screw M3-.5 x 25mm pan head stainless steel $0.99 2 ships same day
15 275-6440 Roller guide bracket $25.96 1 usually ships 1-5 days
16 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
17 999-0783 Screw M8-1.25 x 16mm hex head $0.99 2 ships same day
18 175-7920 Washer M8 flat stainless steel $4.49 2 ships same day
19 275-6441 Wheel (gray) $64.35 2 usually ships 10-16 days
20 275-6442 Right hand axle mounting bracket $26.73 1 usually ships 1-5 days
21 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 8 (qty 4 after SN 10728233) usually ships 10-16 days
22 275-6443 Left hand axle mounting bracket $31.02 1 usually ships 1-5 days
23 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
24 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
25 275-1465 Screw M6-1 x 35 mm set nylock stainless steel $4.36 2 ships same day
26 275-6444 Axle collar $24.97 2 usually ships 1-5 days
27 175-3217 Washer .91b x 1.38d x .06 steel plated $5.28 2 usually ships 10-16 days
28 175-0532 Cotter pin $5.67 2 usually ships 10-16 days
29 275-6445 Main wheel axle $113.85 1 usually ships 1-5 days
31 275-2003 Retaining ring (Tennant Industrial) $6.50 2 (after SN 10728233) usually ships 10-16 days
32 375-1277 Right hand axle mounting bracket $18.26 1 (after SN 10728233) usually ships 1-5 days
33 375-1278 Left hand axle mounting bracket $40.26 1 (after SN 10728233) usually ships 1-5 days
34 375-1279 Main wheel axle $86.35 1 (after SN 10728233) usually ships 1-5 days
