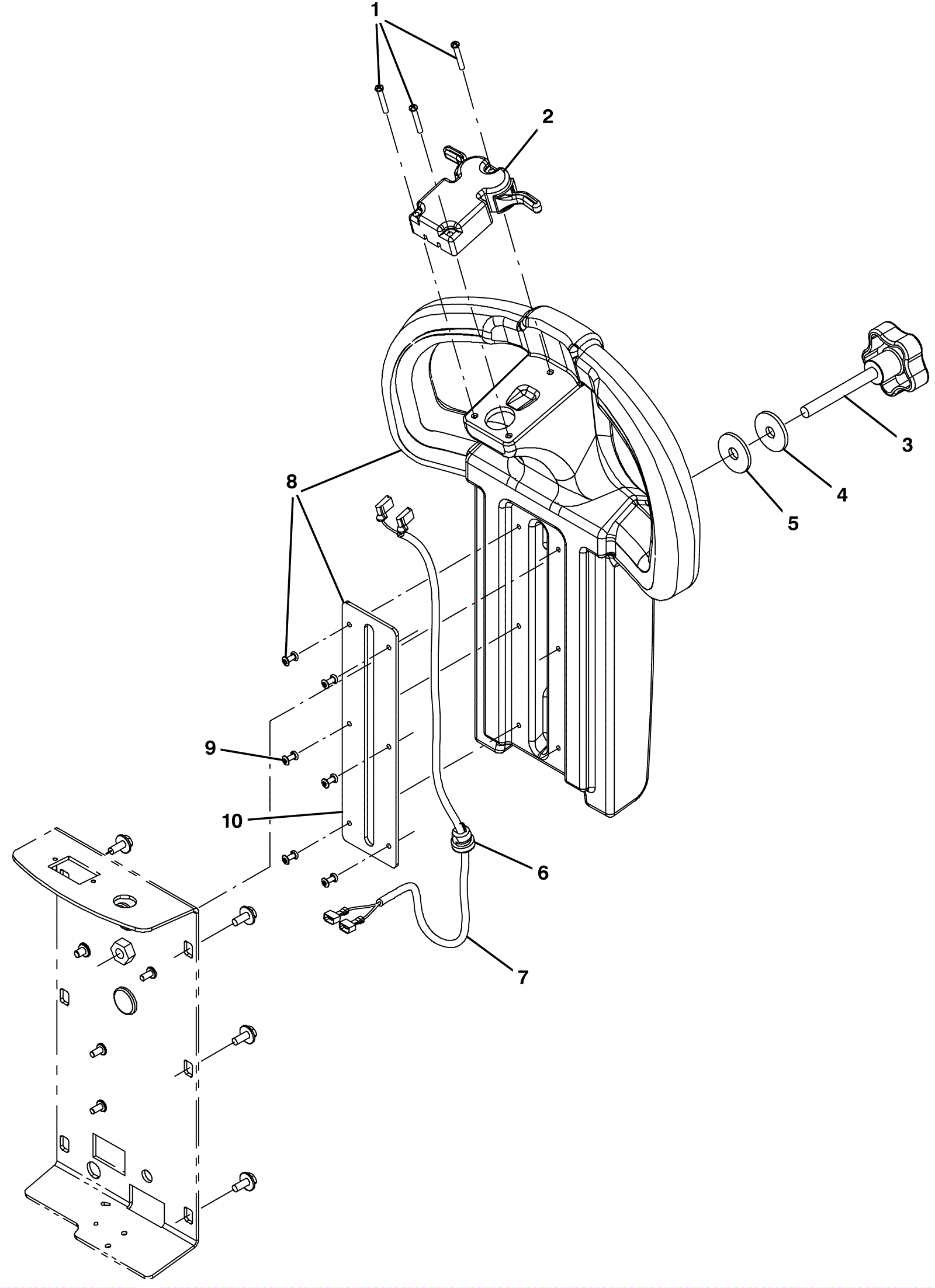

T2 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-5878 Screw 8-18 x 1.12 pan head $1.98 3 usually ships 10-16 days
2 275-6426 Trigger control box assembly $64.35 1 usually ships 10-16 days
3 275-6427 Adjustment knob $29.26 1 usually ships 1-5 days
4 275-6428 Rubber washer $1.85 1 usually ships 1-5 days
5 275-6429 Flat washer (Tennant Industrial) $6.33 1 usually ships 1-5 days
6 175-0085 Strain relief bushing $4.49 1 usually ships 1-5 days
7 275-6430 Handle cord assembly $35.86 1 usually ships 1-5 days
8 275-6431 Handle assembly $733.37 1 (includes 9 and 10) usually ships 1-5 days
9 275-9403 Blind rivet $3.30 6 usually ships 1-5 days
10 275-6432 Handle rail $28.16 1 usually ships 1-5 days
