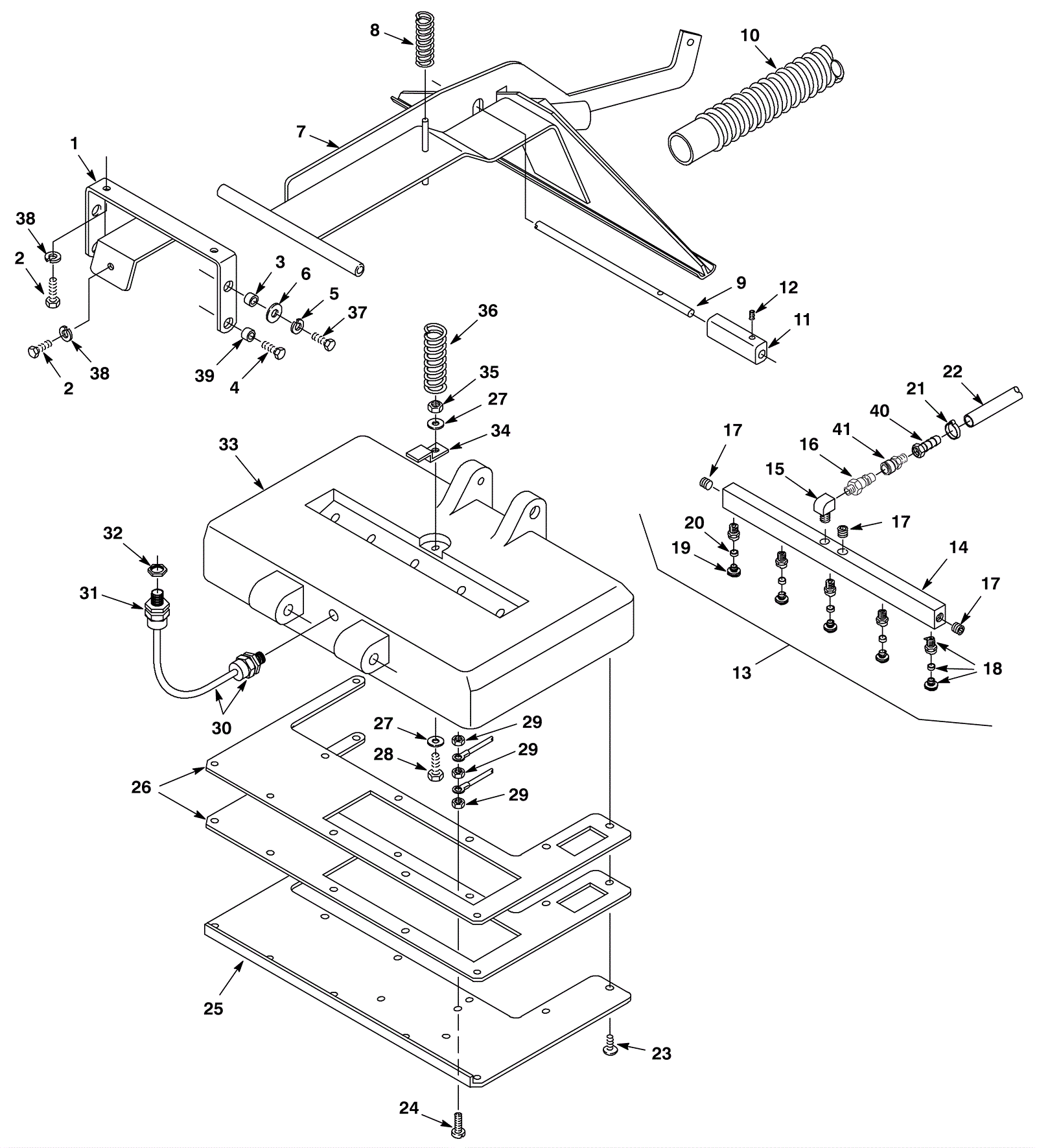

EX-SC-1020P Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-3526 Mounting bracket $101.75 1 usually ships 1-5 days
2 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 3 ships same day
3 175-2725 Bushing $7.26 2 usually ships 5-16 days
4 175-6187 Screw 3/8-16 x 3/4 inch truss head phillips $5.28 2 usually ships 1-5 days
5 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
6 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
7 175-3527 Pickup tool with lever $814.11 1 usually ships 1-5 days
8 175-3528 Pressure spring $11.11 1 usually ships 5-16 days
9 175-3532 Cam adjuster lever $11.55 1 usually ships 1-5 days
10 175-3530 Vacuum hose with cuffs 1 1/2 x 46 inch $52.47 1 ships same day
11 175-3531 Cam adjuster $54.45 1 usually ships 1-5 days
12 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
13 175-9506 Spraybar assembly $433.95 1 (includes 14-20) usually ships 5-16 days
14 175-6040 20 inch spray bar manifold $116.16 1 usually ships 5-16 days
15 175-1661 90 degree elbow fitting $4.95 1 ships same day
16 175-1684 Quick disconnect fitting $21.56 1 usually ships 5-16 days
17 175-6121 Brass plug $3.96 3 ships same day
18 175-6118 Spray tip assembly $76.45 5 (includes 19 and 20) ships same day
19 175-3535 Brass spray tip $28.60 5 ships same day
20 175-8085 Spray nozzle seal $29.37 5 usually ships 5-16 days
21 175-6170 Hose clamp $3.96 1 ships same day
22 175-3536 Hose 1/4 x 1-1/4 inches $6.60 1 usually ships 1-5 days
23 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel $0.99 12 ships same day
24 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel $1.69 1 ships same day
25 175-6145 20 inch brush base plate (black) $144.87 1 usually ships 5-16 days
26 175-6235 20 inch base gasket $36.52 1 usually ships 5-16 days
27 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
28 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 1 ships same day
29 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
30 175-3537 18/3 cord 24 inch (black) $17.27 1 usually ships 1-5 days
31 175-6124 Cord grip $10.12 1 usually ships 1-5 days
32 175-6158 Nut 1/2 conduit $3.96 1 usually ships 5-16 days
33 175-3538 20 inch base (black) $292.60 1 usually ships 1-5 days
34 175-3539 Latch $30.14 1 usually ships 1-5 days
35 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
36 175-1611 Spring $2.69 1 ships same day
37 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 2 ships same day
38 999-0553 Washer 5/16 medium split lock stainless steel $0.99 3 ships same day
39 175-6154 Spacer $4.73 2 usually ships 5-16 days
40 175-3529 Brass fitting $4.95 1 ships same day
41 175-1652 1/8 inch female brass quick coupler $35.20 1 ships same day
