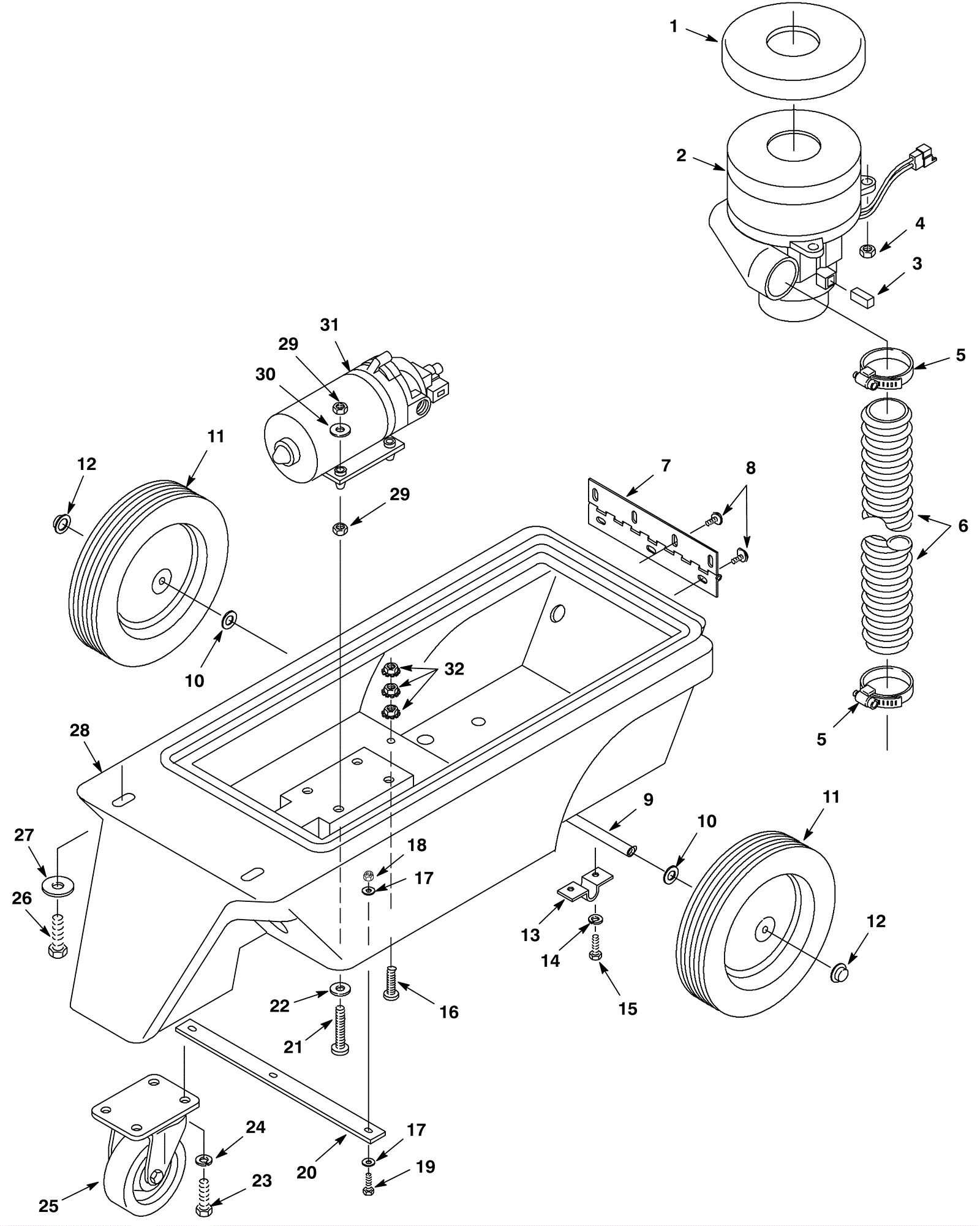

EX-SC-1020P Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-6084 Vacuum motor gasket $12.65 1 ships same day
2a 175-0198 120V 3 stage vacuum motor $590.70 1 (includes 3a and 3b) ships same day
2b 991-1213 120V 3 stage vacuum motor tangential $177.60 1 (NON-OEM) ships same day
3a 175-6086 Carbon brush (pkg of 2) $23.87 2 usually ships 5-16 days
3b 175-6954 Cooling fan cover $18.59 1 usually ships 5-16 days
4 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
5 175-2057 Hose clamp $5.61 2 usually ships 1-5 days
6 175-6090 Exhaust hose 2 x 26 inch (black) $10.23 1 ships same day
7 175-6077 Tank hinge $12.87 1 ships same day
8 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel $0.99 7 ships same day
9 175-6095 Axle $24.42 1 usually ships 5-16 days
10 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
11 175-6096 Wheel $76.89 2 usually ships 5-16 days
12 175-6097 Hub cap $4.84 2 ships same day
13 175-6098 Axle bracket $17.71 2 usually ships 5-16 days
14 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
15 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel $0.99 4 ships same day
16 999-0009 Screw 10-24 x 1 round head slotted zinc plated $0.99 1 ships same day
17 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
18 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
19 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish $1.76 3 ships same day
20 175-3545 Support bracket $23.43 1 usually ships 1-5 days
21 999-0002 Screw 10-24 x 1 1/2 pan head phillips zinc plated $0.99 4 usually ships 11-24 days
22 999-0393 Washer 3/16 flat aluminum $0.99 4 ships same day
23 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 4 ships same day
24 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
25 175-0888 4 inch swivel caster wheel $62.04 1 ships same day
26 175-5709 Screw 3/8-16 x 2 1/2 hex head stainless steel $5.28 2 usually ships 5-16 days
27 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
28 275-6386 Chassis $474.43 1 usually ships 1-5 days
29 999-0356 Nut 10-24 lock stainless steel $0.99 8 ships same day
30 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
31a 175-6011 120V 100 PSI pump $476.08 1 usually ships 5-16 days
31b 991-8225 Shurflo pump $252.55 1 ships same day
32 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
