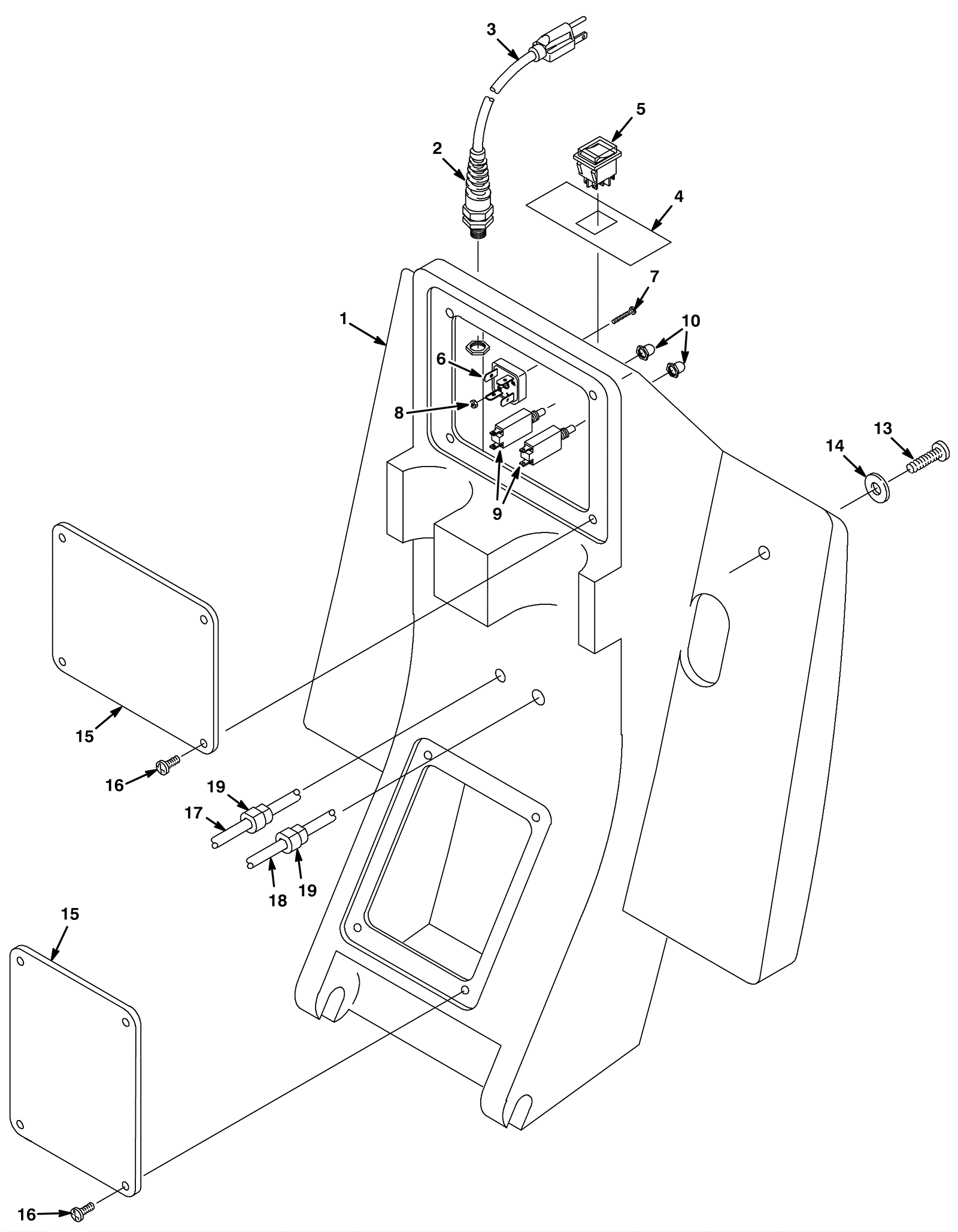

EX-SC-412 Rear Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-9849 Rear panel $134.20 1 usually ships 1-5 days
2 175-0001 Strain relief $12.32 1 ships same day
3 175-9850 16/3 power cord 25 ft $46.20 1 usually ships 5-16 days
4 175-9852 Switch decal $4.95 1 usually ships 1-5 days
5 175-2693 Rocker switch $27.72 1 usually ships 5-16 days
6 175-6052 15amp rectifier $24.09 1 ships same day
8 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
9 175-6060 1.5amp circuit breaker $49.94 2 usually ships 5-16 days
10 175-3556 Circuit breaker boot $16.17 2 usually ships 5-16 days
13 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel $1.01 2 ships same day
14 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
15 175-9853 Plate cover $11.00 2 usually ships 5-16 days
16 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 8 ships same day
17 175-9826 Cord 1/8/5x 41 inch $21.23 1 usually ships 1-5 days
18 175-9827 Cord 18/5 x 54 inch $31.24 1 usually ships 1-5 days
19 175-6591 Strain relief bushing $4.07 2 usually ships 5-16 days
