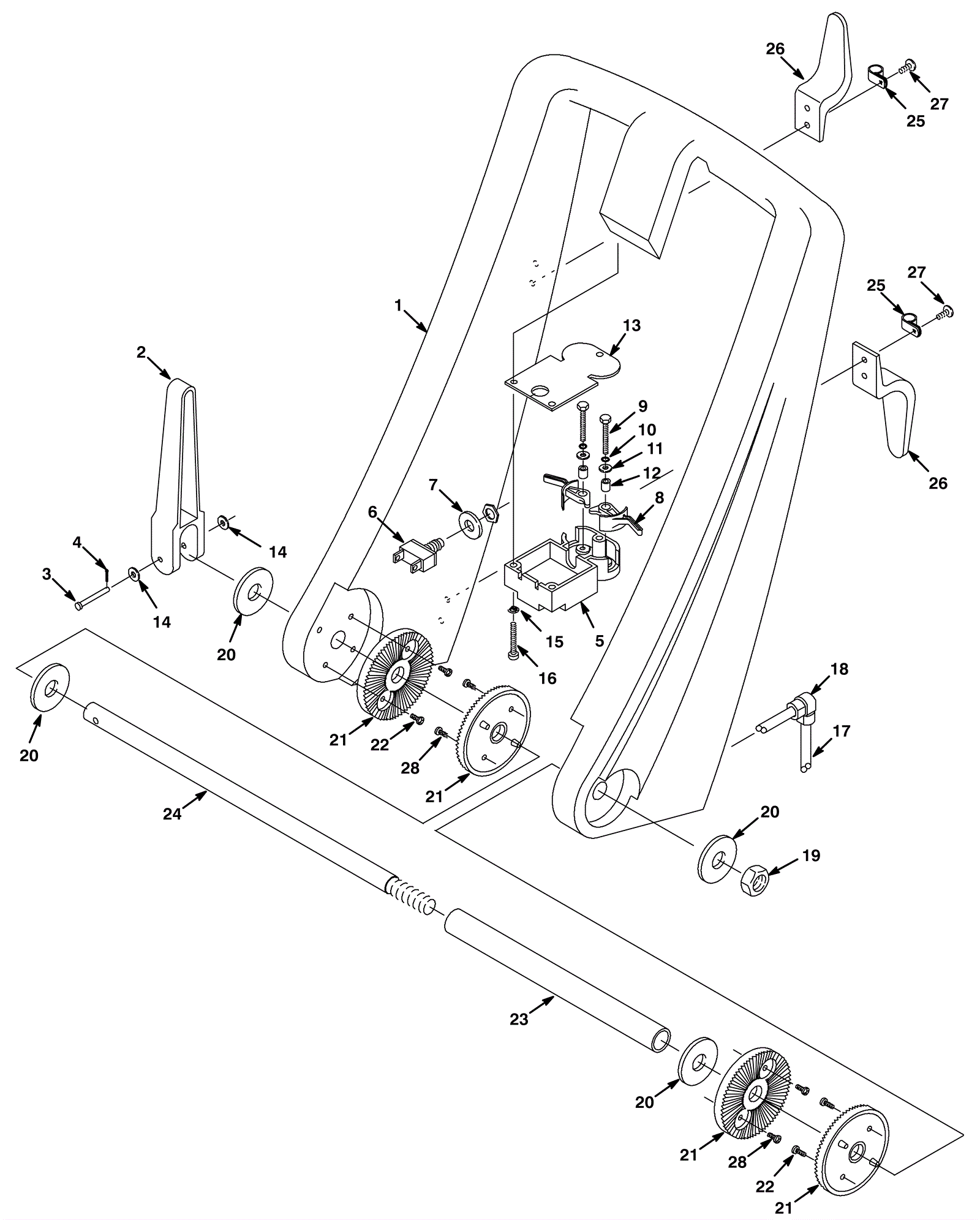

Handle Assembly

#PartDescription ReqNotesAvailability
1 275-6317 Handle 1
2 175-9842 Camlock lever 1
3 175-9843 Clevis pin 1
4 175-6176 Cotter pin 1
5 275-4697 Right hand console trigger assembly 1 (includes 6-12)
6 175-6400 Push button switch kit 1
7 175-6386 Washer 1/2 flat spring disc zinc plated 1
8 175-6383 Trigger arm (OBSOLETE) 2
9 999-0805 Bolt M3-.5 x 16mm hex head 2
10 999-0479 Washer #4 internal star lock zinc plated 2
11 999-1115 Washer M4 flat zinc plated 2
12 175-6384 Trigger spacer 2
13 175-9844 Trigger console gasket 1
14 999-0393 Washer 3/16 flat aluminum 2
15 999-1083 Washer #8 internal star lock stainless steel 3
16 999-1518 Screw M4-.7 x 30mm pan head phillips zinc plated 3
17 175-9824 Cord 18/2 x 66 inch 1
18 175-9845 Strain relief bushing 1
19 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1
20 999-0559 Washer 1/2 x 1/4 flat stainless steel 4
21 175-9846 Pivot handle serrated pad 4
22 175-3689 Screw M5-.8 x 12mm truss head phillips stainless steel 4
23 175-9847 Tube 1/2 x 5/8 x 7-3/8 1
24 175-9848 Pivot shaft 1/2 x 13-1/8 1
25 175-0144 P clamp 2
26 175-1756 Cord hook 2
27 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 4
28 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 4
