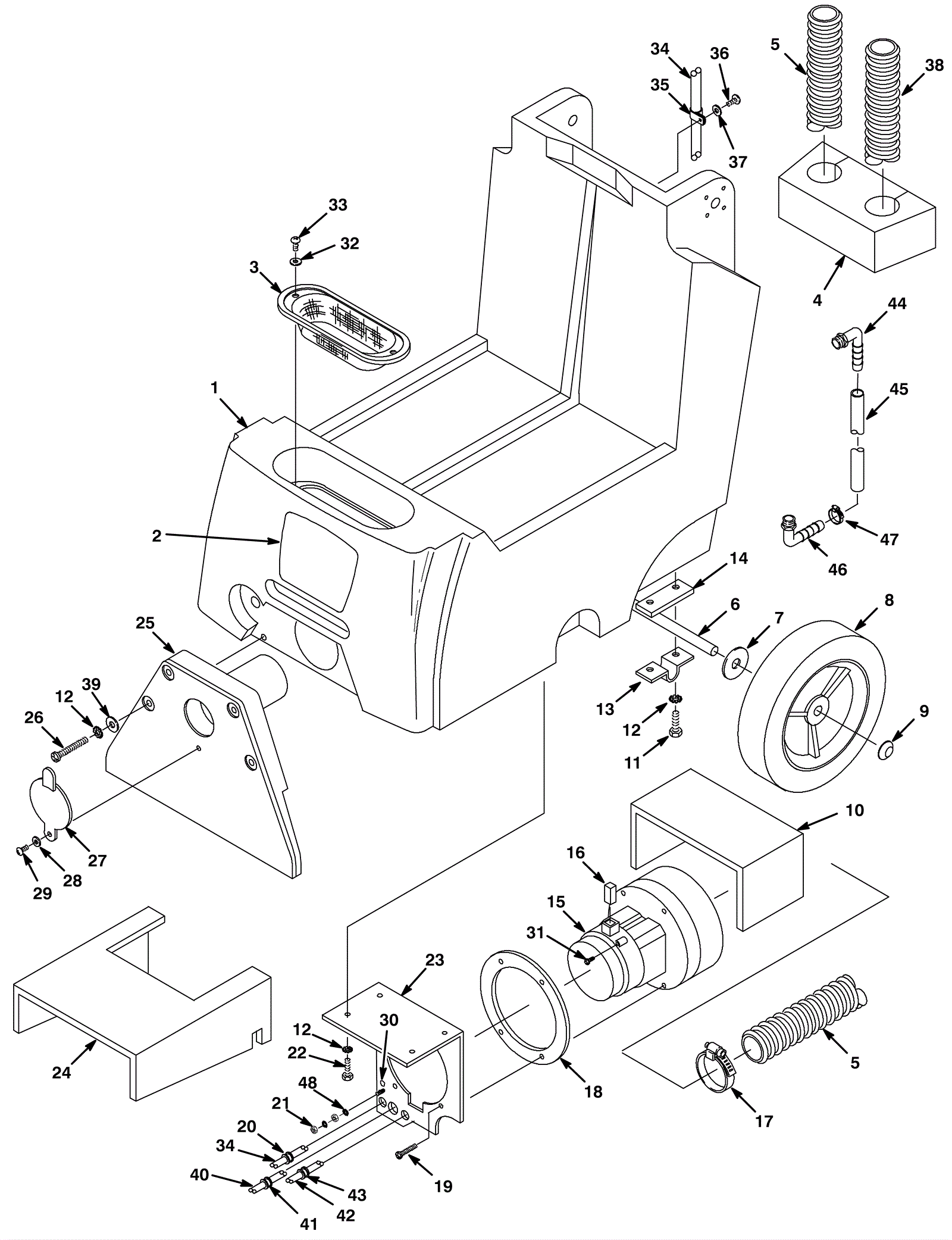

EX-SC-412 Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-6313 Solution tank $460.46 1 usually ships 1-5 days
2a 275-9848 Tennant/Nobles decal $7.26 1 usually ships 5-16 days
2b 275-9849 Tennant decal $27.39 1 usually ships 1-5 days
3 175-9812 Strainer screen $33.44 1 usually ships 5-16 days
4 175-9813 Sound foam 2 x 3-1/4 x 7-3/4 $7.70 1 usually ships 5-16 days
5 175-9830 Vacuum hose 1 1/2 x 19 inch $57.64 1 usually ships 5-16 days
6 175-6095 Axle $24.42 1 usually ships 5-16 days
7 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
8 175-1690 8 inch wheel (gray) $23.98 2 usually ships 5-16 days
9 175-6097 Hub cap $4.84 2 ships same day
10 175-9815 Sound foam 1/2 x 5 x 22 $9.02 1 usually ships 5-16 days
11 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel $1.01 4 ships same day
12 999-1024 Washer 1/4 external tooth lock stainless steel $1.32 12 ships same day
13 175-6098 Axle bracket $17.71 2 usually ships 5-16 days
14 175-9816 Shim plate 1/4 x 2 - 1/2 x 1-1/4 $16.28 2 usually ships 1-5 days
15 175-9817 120V 2 stage vacuum motor with snout (OBSOLETE) $365.75 1 (includes 16) usually ships 5-16 days
16 175-0251 Carbon brush (pkg of 2) $38.28 1 usually ships 5-16 days
17 997-2007 Hose clamp $2.07 1 ships same day
18 175-0053 Gasket $7.92 1 ships same day
19 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 4 ships same day
20 175-9818 Bushing $3.19 1 usually ships 1-5 days
21 275-3151 NUT, HEX, STD, M5 X 0.80, A2, SS (Tennant Industrial) $0.90 2 usually ships 1-5 days
22 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 4 ships same day
23 175-9819 Vacuum motor mounting plate $63.80 1 usually ships 1-5 days
24 175-9820 Sound foam $14.08 1 usually ships 1-5 days
25 175-9821 Pick-up tool assembly $84.04 1 (includes 26-29) usually ships 5-16 days
26 175-9822 Screw M6 x 1 x 40 phillip truss $3.63 4 usually ships 5-16 days
27 175-9823 Cap seal $11.77 1 usually ships 5-16 days
28 999-0393 Washer 3/16 flat aluminum $0.99 1 ships same day
29 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 1 ships same day
30 175-3555 Textless ground decal $7.15 1 usually ships 1-5 days
31 175-4550 Ground screw $2.42 1 usually ships 1-5 days
32 999-1158 Washer #6 flat stainless steel $0.99 2 ships same day
33 999-1111 Screw 6-32 x 3/4 pan head phillips sheet metal $1.43 2 ships same day
34 175-9824 Cord 18/2 x 66 inch $9.13 1 usually ships 1-5 days
35 175-0144 P clamp $3.19 1 usually ships 5-16 days
36 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 1 ships same day
37 999-0393 Washer 3/16 flat aluminum $0.99 1 ships same day
38 175-9825 Vacuum hose 1 1/2 x 33 inch $73.70 1 usually ships 5-16 days
39 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
40 175-9826 Cord 1/8/5x 41 inch $21.23 1 usually ships 1-5 days
41 175-6591 Strain relief bushing $4.07 1 usually ships 5-16 days
42 175-9827 Cord 18/5 x 54 inch $31.24 1 usually ships 1-5 days
43 175-3134 Snap bushing $2.09 1 usually ships 1-5 days
44 175-9828 Fitting 1/4 x 3/8 $17.16 1 ships same day
45 175-9829 Drain hose $32.01 1 usually ships 1-5 days
46 175-2844 90 degree elbow fitting $4.95 1 ships same day
47 175-6032 Hose clamp $4.73 1 ships same day
48 999-0053 Washer #10 split lock plain finish $0.99 2 ships same day
