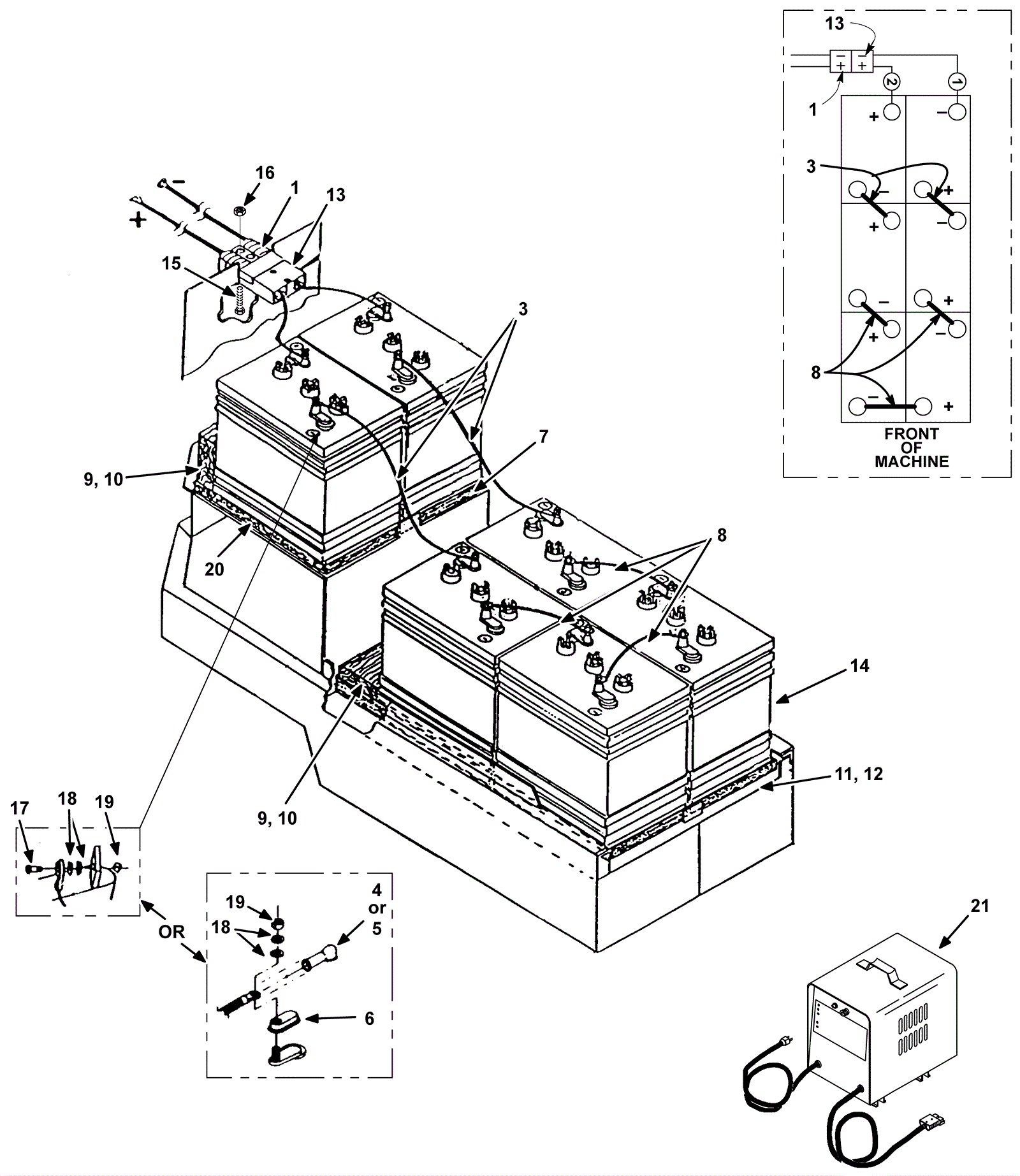

2250 Battery Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-1349 Battery wiring harness $132.90 1 usually ships 1-5 days
2 175-1350 Battery cable assembly (OBSOLETE) $189.00 1 usually ships 1-5 days
3 175-9022 Battery cable $22.10 2 usually ships 1-5 days
4 175-1103 Battery cable boot (black) $4.30 6 ships same day
5 175-1103 Battery cable boot (black) $4.30 6 ships same day
6 175-2121 Battery terminal cover (clear) $3.60 12 usually ships 5-16 days
7 175-1351 Upper battery tray $31.56 1 usually ships 1-5 days
8 175-9009 Cable $15.00 3 usually ships 5-16 days
9 175-1352 Battery insert $14.00 2 ships same day
10 175-1353 Battery insert $9.90 2 (2500XPD drive model and BR-2500) usually ships 1-5 days
11 175-1354 Battery support plate $15.40 1 usually ships 1-5 days
12 175-1355 Lower battery tray (OBSOLETE) $57.30 1 usually ships 1-5 days
13 175-1356 Battery cable assembly (OBSOLETE) $135.00 1 usually ships 5-16 days
15 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 2 ships same day
16 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
17 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 12 ships same day
18 999-0024 Washer 5/16 flat stainless steel $1.34 24 ships same day
19 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 12 ships same day
20 175-1357 Battery plate (OBSOLETE) $19.90 1 (BR-2250 and BR-2500) usually ships 1-5 days
