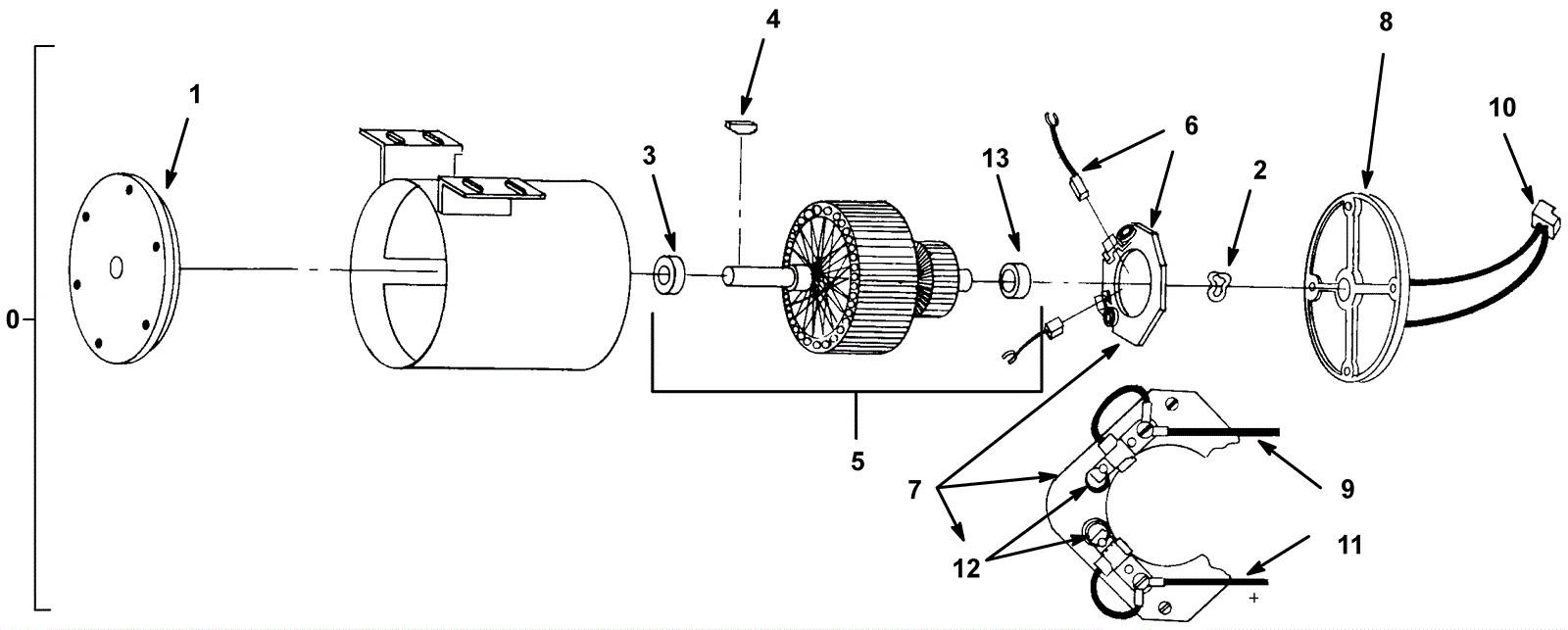

2250 Drive Motor Assembly

#PartDescriptionPriceReqNotesAvailability
0 175-1398 36V drive motor $461.30 1 (includes 1-13) usually ships 1-5 days
1 175-0428 Bracket $64.50 1 usually ships 1-5 days
2 175-0370 Helical washer $3.60 1 usually ships 1-5 days
3 175-0957 Brush bearing $11.80 1 usually ships 5-16 days
4 175-0415 Woodruff key (OBSOLETE) $1.56 1 usually ships 1-5 days
5 175-0429 Armature assembly $483.50 1 usually ships 1-5 days
6 175-0430 Carbon brush (sold individually) $31.20 2 usually ships 1-5 days
7 175-0431 Brush board assembly (OBSOLETE) $80.50 1 usually ships 1-5 days
8 175-0432 Commutator bracket (OBSOLETE) $33.40 1 usually ships 1-5 days
9 175-0433 Negative lead $15.00 1 usually ships 1-5 days
10 175-1402 Connector $7.80 1 usually ships 1-5 days
11 175-0435 Positive lead $15.00 1 usually ships 1-5 days
12 175-0375 Brush spring (pkg of 4) $10.60 2 usually ships 1-5 days
13 175-0957 Brush bearing $11.80 1 usually ships 5-16 days
