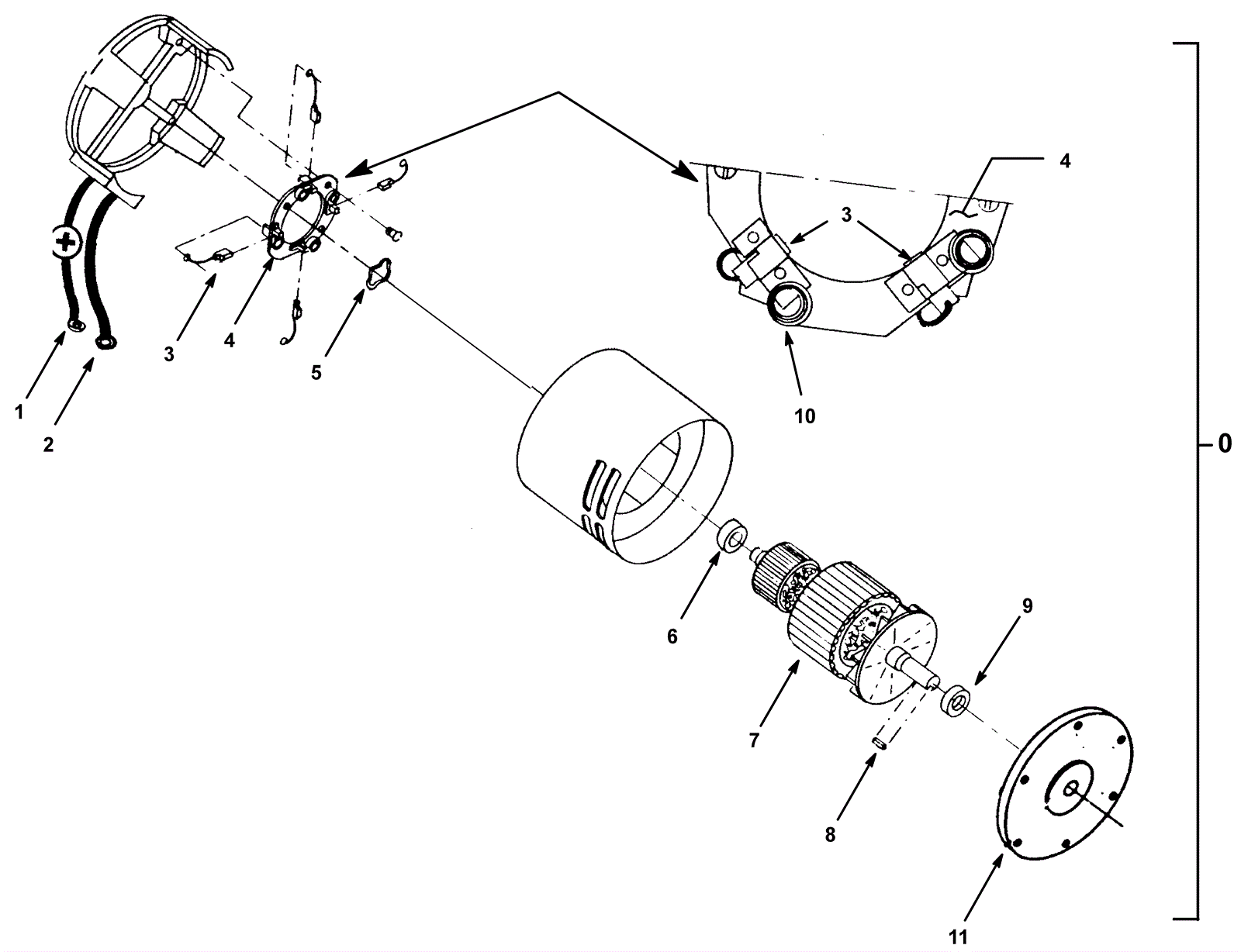

2250 Pad Motor Assembly

#PartDescriptionPriceReqNotesAvailability
0 175-1423 36V 3HP brush drive motor $897.00 1 (includes 1-11) usually ships 1-5 days
1 175-1438 Lead assembly $17.50 1 (positive) usually ships 1-5 days
2 175-1438 Lead assembly $17.50 1 (negative) usually ships 1-5 days
3 175-1113 Carbon brush (sold individually) $44.90 4 ships same day
4 175-1439 Brush board assembly (OBSOLETE) $197.90 1 usually ships 1-5 days
5 175-0370 Helical washer $3.60 1 usually ships 1-5 days
6 175-0957 Brush bearing $11.80 1 usually ships 5-16 days
7 175-1440 Armature assembly $715.30 1 usually ships 1-5 days
8 175-1441 Shaft key (OBSOLETE) $2.04 1 usually ships 1-5 days
9 175-2781 Wheel bearing $30.80 1 usually ships 3-28 days
10 175-0375 Brush spring (pkg of 4) $10.60 4 usually ships 1-5 days
11 175-1442 Bracket (OBSOLETE) $93.80 1 usually ships 1-5 days
