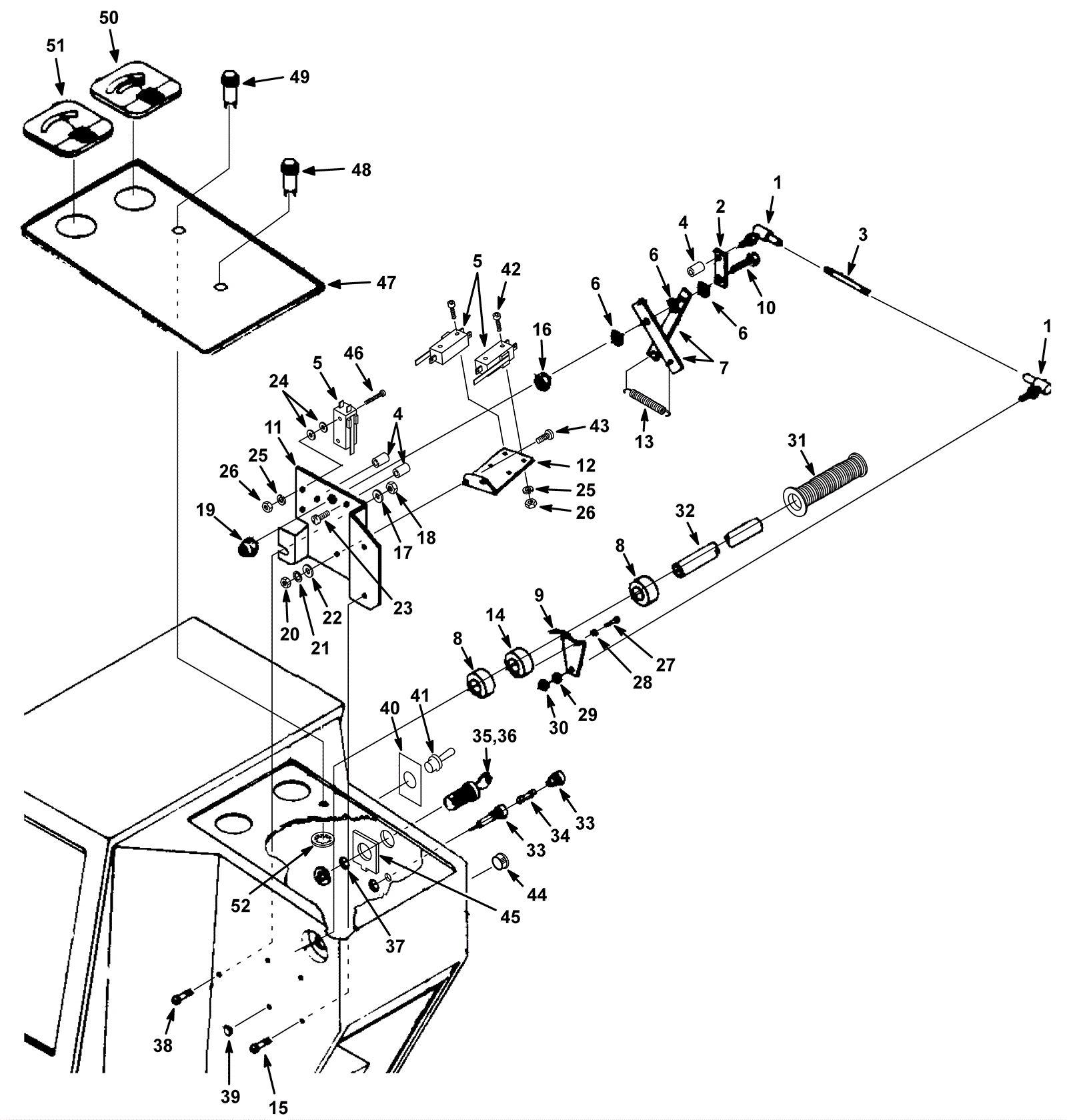

2500XPD Instrument Panel Assembly - Drive Model/BR2500

#PartDescriptionPriceReqNotesAvailability
1 275-6304 Ball joint (OBSOLETE) $5.41 2 usually ships 1-5 days
2 275-6305 Arm $6.82 1 usually ships 1-5 days
3 275-6306 Rod $15.40 1 usually ships 1-5 days
4 275-6307 Nylon spacer (OBSOLETE) $1.72 3 usually ships 1-5 days
5 175-6532 Snap switch $14.41 3 usually ships 5-16 days
6 275-6308 Nylon washer (OBSOLETE) $1.72 3 usually ships 1-5 days
7 275-6309 Scissor link $6.00 2 usually ships 1-5 days
8 175-1417 Shaft collar $3.96 2 usually ships 1-5 days
9 175-1419 Plate $8.80 1 usually ships 1-5 days
10 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 1 ships same day
11 275-6310 Bracket (OBSOLETE) $44.99 1 usually ships 1-5 days
12 275-6311 Switch bracket $13.70 1 usually ships 1-5 days
13 175-1418 Spring $12.21 1 usually ships 1-5 days
14 175-1420 Switch actuator collar $34.87 1 usually ships 1-5 days
15 999-1146 Screw 5/16-18 x 3/4 truss head phillips stainless steel $1.41 2 ships same day
16 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
17 999-0553 Washer 5/16 medium split lock stainless steel $0.99 1 ships same day
18 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
19 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
20 999-0869 Nut M4-.7 hex coarse thread plain finish $0.99 2 ships same day
21 999-1083 Washer #8 internal star lock stainless steel $0.99 2 ships same day
22 999-0266 Washer #8 SAE flat stainless steel $0.99 2 ships same day
23 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated $0.99 2 ships same day
24 999-1215 Washer #6 SAE flat zinc plated $0.99 4 ships same day
25 999-0051 Washer #6 medium split lock $0.99 6 ships same day
26 999-0195 Nut 6-32 hex plain $0.99 6 ships same day
27 999-0805 Bolt M3-.5 x 16mm hex head $0.99 2 ships same day
28 175-0472 Washer M3 lock (OBSOLETE) $1.45 2 usually ships 1-5 days
29 999-0053 Washer #10 split lock plain finish $0.99 1 ships same day
30 999-0460 Nut 10-32 hex $0.99 1 ships same day
31a 175-2703 Handle grip $4.07 2 ships same day
31b 991-8571 Handle grip $2.33 2 (NON-OEM) ships same day
32 175-0384 Handlebar $50.05 1 usually ships 1-5 days
33 175-5010 Fuse holder $10.12 1 usually ships 5-16 days
34 175-5011 15amp slow-blow fuse $24.75 1 usually ships 1-5 days
35 175-3727 Key switch $194.59 1 (includes 36) usually ships 5-16 days
36 175-0185 Double sided key (steel) $15.40 1 ships same day
37 999-0804 Washer M20 internal lock $1.24 1 ships same day
38 999-1598 Screw 5/16-18 x 1 truss head stainless steel $1.33 1 usually ships 1-5 days
39 175-2829 Dome plug $4.29 2 usually ships 1-5 days
40 275-6312 Travel speed decal (OBSOLETE) $20.24 1 usually ships 1-5 days
41 275-6051 Toggle switch with plate $50.38 1 usually ships 1-5 days
42 999-1167 Bolt 6-32 x 1 hex head stainless steel $2.27 4 usually ships 1-5 days
43 999-1042 Screw M4-1 x 12mm pan head phillips zinc $0.99 2 ships same day
44 175-2701 Plug $3.08 1 usually ships 5-16 days
45 175-1422 Key switch bracket $9.24 1 usually ships 1-5 days
46 999-1157 Screw 6-32 x 1 5/8 pan head phillips zinc $0.99 2 ships same day
48 175-1413 Pilot light (amber) $10.42 1 usually ships 1-5 days
49 175-0393 Pilot light (green) $12.98 1 usually ships 1-5 days
50 175-1412 Pad pressure meter (OBSOLETE) $48.84 1 usually ships 1-5 days
51 175-1414 Battery meter $76.45 1 usually ships 1-5 days
52 N/A Not available Call for price 2 (Washer) usually ships 3-26 days
