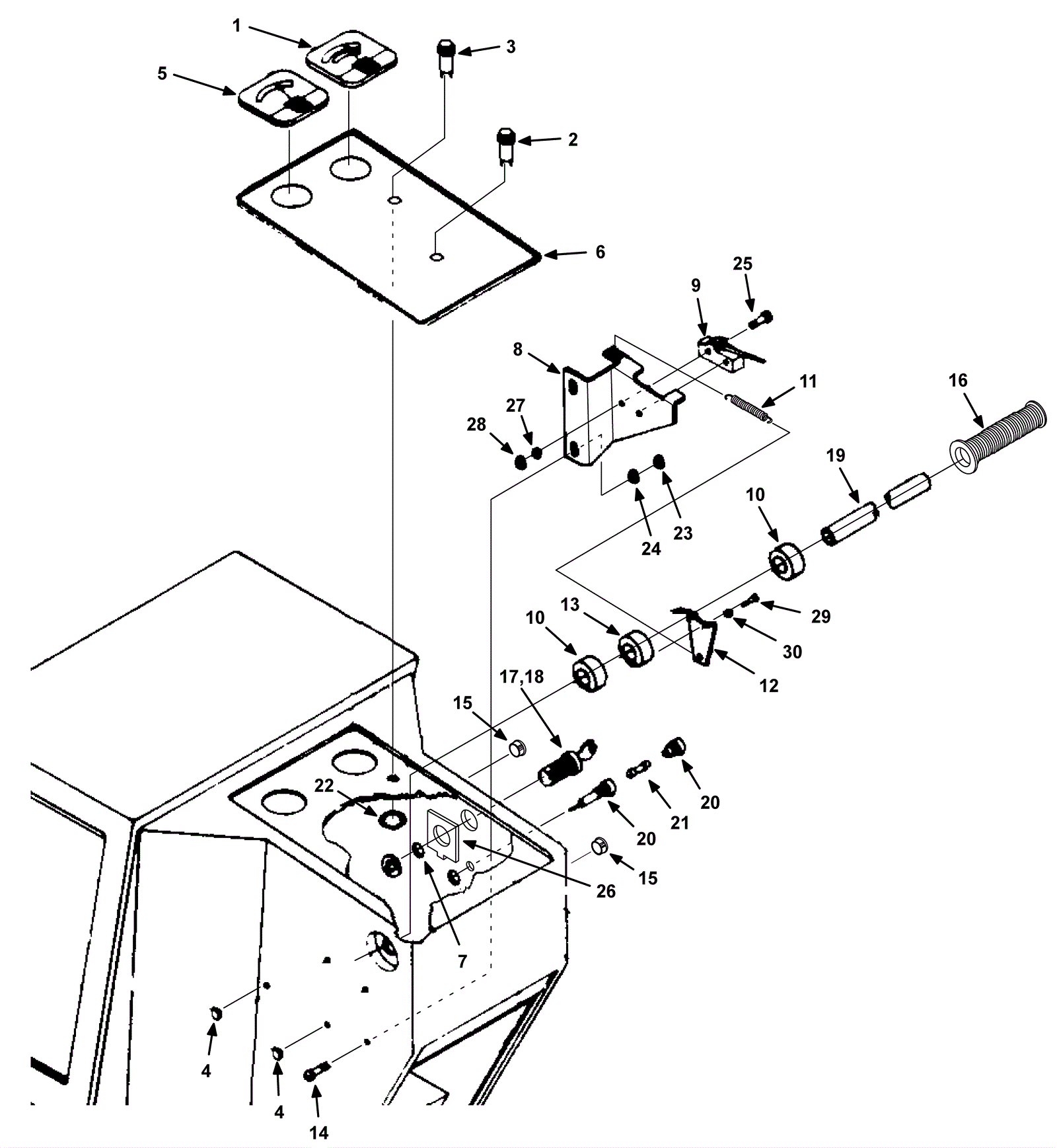

2250 Instrument Panel Assembly - Push Model

#PartDescriptionPriceReqNotesAvailability
1 175-1412 Pad pressure meter (OBSOLETE) $44.40 1 usually ships 1-5 days
2 175-1413 Pilot light (amber) $9.47 1 usually ships 1-5 days
3 175-0393 Pilot light (green) $11.80 1 usually ships 1-5 days
4 175-2829 Dome plug $3.90 3 usually ships 1-5 days
5 175-1414 Battery meter $69.50 1 usually ships 1-5 days
6 175-1415 Control panel decal (OBSOLETE) $13.50 1 usually ships 1-5 days
7 999-0804 Washer M20 internal lock $1.24 1 ships same day
8 175-1416 Bracket $21.90 1 usually ships 1-5 days
9 175-6532 Snap switch $13.10 1 usually ships 5-16 days
10 175-1417 Shaft collar $3.60 2 usually ships 1-5 days
11 175-1418 Spring $11.10 1 usually ships 1-5 days
12 175-1419 Plate $8.00 1 usually ships 1-5 days
13 175-1420 Switch actuator collar $31.70 1 usually ships 1-5 days
14 999-1146 Screw 5/16-18 x 3/4 truss head phillips stainless steel $1.41 2 ships same day
15 175-2701 Plug $2.80 2 usually ships 5-16 days
16a 175-2703 Handle grip $3.70 2 usually ships 5-16 days
16b 991-8571 Handle grip $2.33 2 (NON-OEM) ships same day
17 175-3727 Key switch $176.90 1 (includes 18) usually ships 5-16 days
18 175-0185 Double sided key (steel) $14.00 1 ships same day
19 175-0384 Handlebar $45.50 1 usually ships 1-5 days
20 175-5010 Fuse holder $9.20 1 usually ships 5-16 days
21 175-5011 15amp slow-blow fuse $22.50 1 usually ships 1-5 days
22 N/A Not available Call for price 2 (Washer) usually ships 3-26 days
23 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
24 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
25 999-1167 Bolt 6-32 x 1 hex head stainless steel $2.27 2 usually ships 1-5 days
26 175-1422 Key switch bracket $8.40 1 usually ships 1-5 days
27 999-0051 Washer #6 medium split lock $0.99 2 ships same day
28 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
29 999-0805 Bolt M3-.5 x 16mm hex head $0.99 2 ships same day
30 175-0472 Washer M3 lock (OBSOLETE) $1.32 2 usually ships 1-5 days
