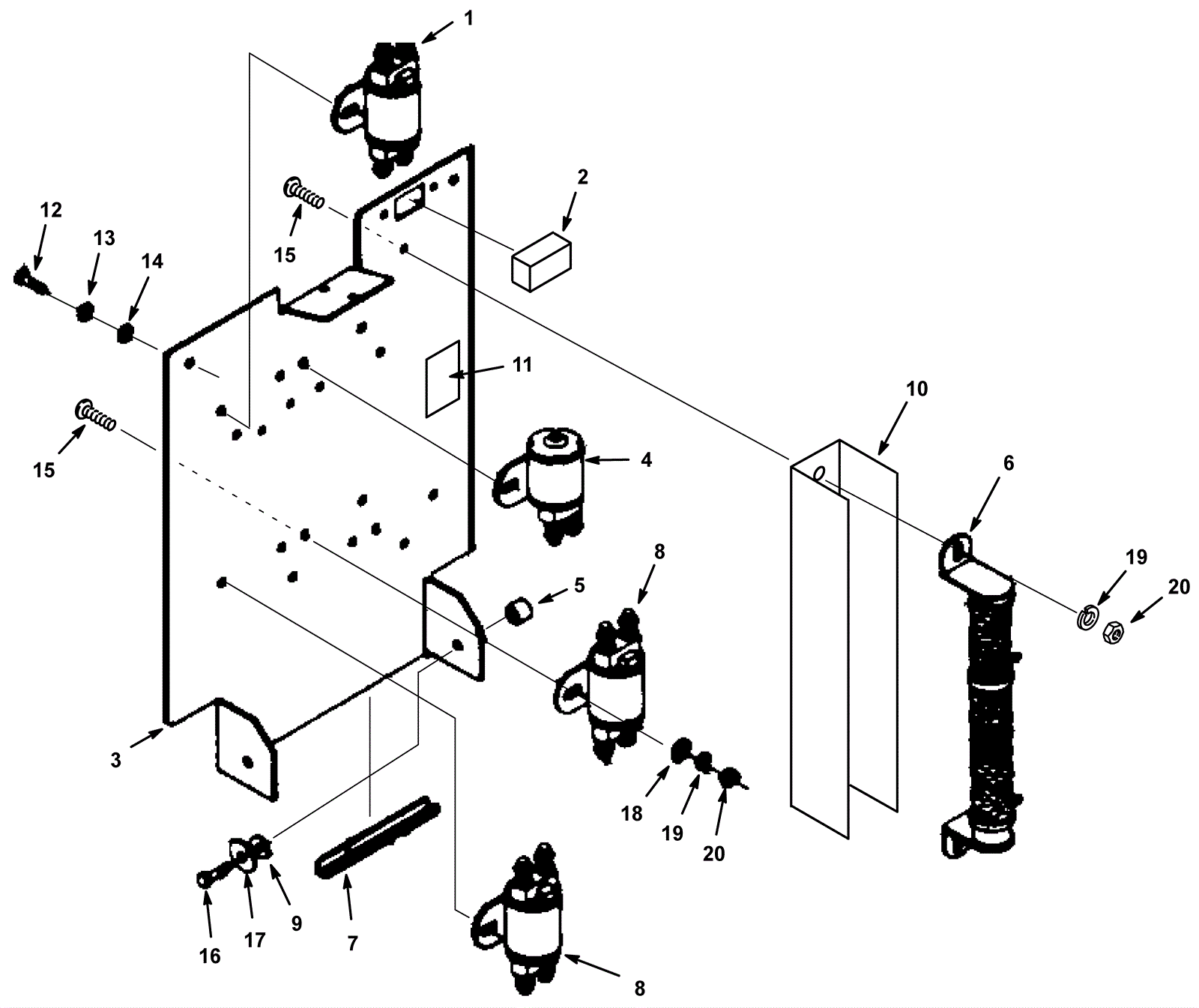

2250 Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-5020 100amp contactor (OBSOLETE) $119.69 1 (dynamic brake) usually ships 1-5 days
2 175-1360 Hour meter kit (OBSOLETE) $131.60 1 usually ships 1-5 days
3 N/A Not available Call for price 1 (Electrical panel) usually ships 3-26 days
4 275-0639 36V solenoid $136.80 1 (pad motor) ships same day
5 175-1362 Nylon spacer $2.90 2 usually ships 5-16 days
6 175-5013 Resistor (OBSOLETE) $68.40 1 usually ships 1-5 days
7a 275-6301 Plastic edging (sold by the inch) (OBSOLETE) $6.30 8 in (2500XPD) usually ships 1-5 days
7b 175-8621 Plastic edging $10.00 8 in (BR-2250 and BR-2500) usually ships 1-5 days
8 175-5020 100amp contactor (OBSOLETE) $119.69 2 (forward and reverse) usually ships 1-5 days
9 999-1530 Washer 3/8 flat nylon $0.99 2 ships same day
10 175-1365 Heat shield $29.50 1 usually ships 1-5 days
11a N/A Not available Call for price 1 (Decal) (2500XPD drive model) usually ships 3-26 days
11b 175-1366 Caution hot decal (OBSOLETE) $9.50 1 (BR-2500) usually ships 1-5 days
12 175-5113 Bolt M6 x 12mm hex head $2.20 2 usually ships 1-5 days
13 999-0364 Washer #6 internal star lock zinc plated $0.99 2 ships same day
14 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
15 999-0798 Bolt 1/4-20 x 1/2 flange grade 8.2 zinc plated $0.99 4 (qty 10 for 2500XPD drive model and BR-2500) ships same day
16a 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 (2500XPD) ships same day
17 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
18 999-0024 Washer 5/16 flat stainless steel $1.34 4 (qty 8 for 2500XPD drive model and BR-2500) ships same day
19 999-0632 Washer 1/4 split lock stainless steel $0.99 4 (qty 10 for 2500XPD drive model and BR-2500) ships same day
20 175-1131 Nut 1/4-20 $2.10 4 (qty 10 for 2500XPD drive model and BR-2500) usually ships 1-5 days
N/S 275-6302 Main wiring harness (OBSOLETE) $46.10 1 (2500XPD push model) usually ships 1-5 days
N/S 275-6303 Main wiring harness (OBSOLETE) $147.30 1 (2500XPD drive model) usually ships 1-5 days
