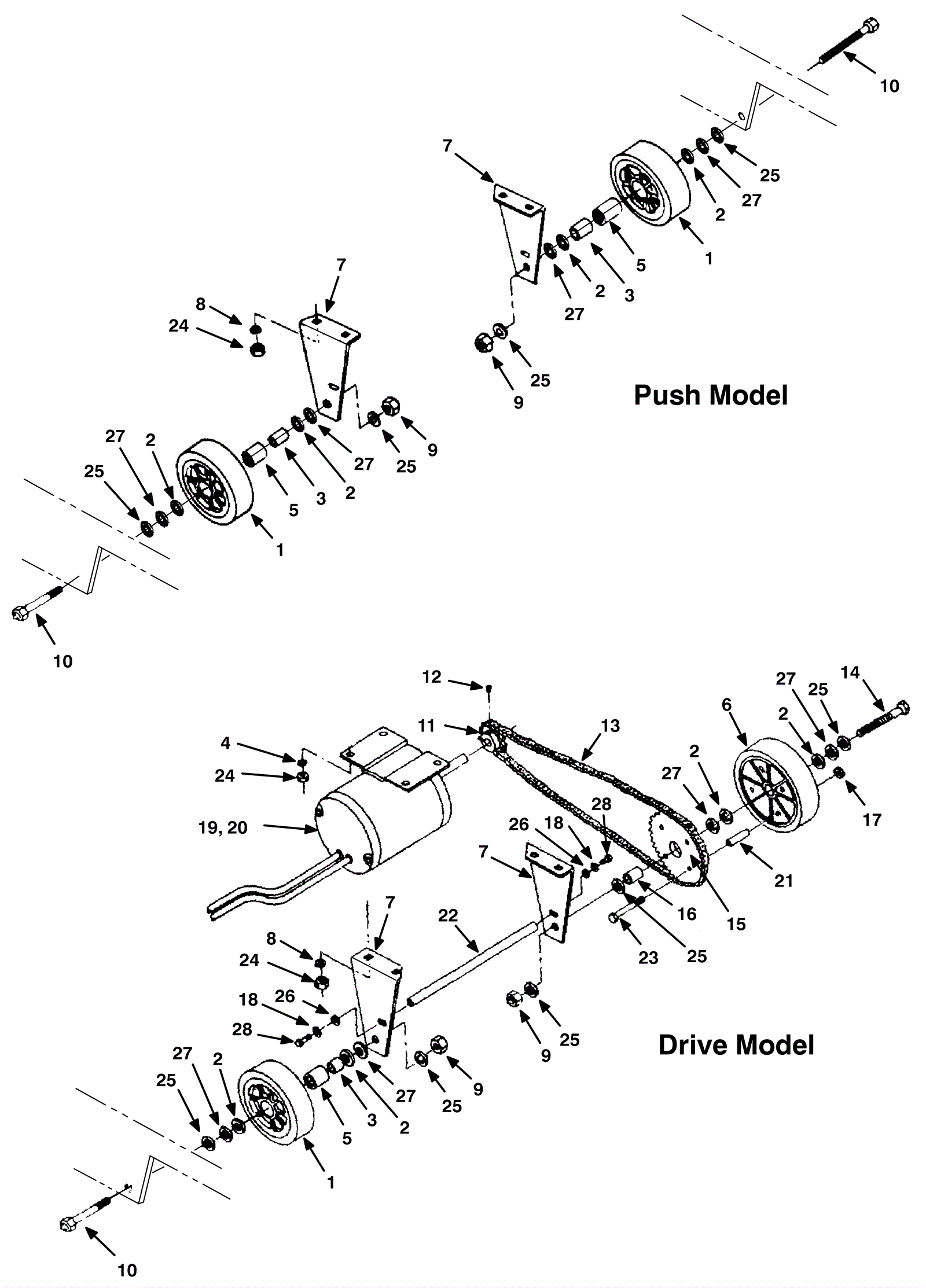

2250 Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-1385 Wheel assembly (OBSOLETE) $136.90 2 (includes 2, 3, 5 and 9) (qty 1 for 2500XPD drive model and BR-2500) usually ships 1-5 days
2 175-1386 Thrust washer $5.00 4 usually ships 1-5 days
3 175-1387 Spanner bushing $12.20 2 (qty 1 for 2500XPD drive model and BR-2500) usually ships 1-5 days
4a 999-0024 Washer 5/16 flat stainless steel $1.34 4 (2500XPD) ships same day
4b 999-0024 Washer 5/16 flat stainless steel $1.34 4 (BR-2250 and BR-2500) ships same day
5 175-1388 Wheel bearing $24.30 2 (qty 1 for 2500XPD drive model and BR-2500) usually ships 1-5 days
6 175-1389 Wheel $201.00 1 (2500XPD drive model) (BR-2500) usually ships 5-16 days
7 175-1390 Wheel mounting bracket (OBSOLETE) $16.50 2 usually ships 1-5 days
8a 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
8b 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
9 999-0182 Nut 1/2-20 hex plain finish $0.99 2 ships same day
10 175-1391 Axle $3.96 2 (qty 1 for 2500XPD drive model and BR-2500) usually ships 1-5 days
11 175-1392 Sprocket $41.10 1 usually ships 1-5 days
12 175-1393 Set screw $2.90 2 usually ships 1-5 days
13 175-1394 Chain $61.60 1 usually ships 1-5 days
14 175-1395 Axle $31.80 1 (2500XPD drive model) (BR-2500) usually ships 1-5 days
15 175-1396 Sprocket $46.70 1 usually ships 1-5 days
16 175-1397 Wheel spacer $7.50 1 usually ships 1-5 days
17a 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
17b 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
18 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
19 175-1398 36V drive motor $461.30 1 (includes 20) usually ships 1-5 days
20 175-0430 Carbon brush (sold individually) $31.20 1 usually ships 1-5 days
21 175-1399 Spacer $3.24 4 usually ships 1-5 days
22 175-1400 Wheel mounting support $35.60 1 usually ships 1-5 days
23 999-0244 Bolt 1/4-20 x 2 1/2 hex head grade 5 zinc plated cap $0.99 4 ships same day
24 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 (qty 8 for 2500XPD drive model and BR-2500) ships same day
25 999-0187 Washer 1/2 flat plain finish $0.99 4 (qty 5 for 2500XPD drive model and BR-2500) ships same day
26 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
27 999-0588 Washer 7/8 flat stainless steel $11.44 4 ships same day
28a 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
N/S 175-1401 Wheel shims service kit (OBSOLETE) $8.20 1 usually ships 1-5 days
