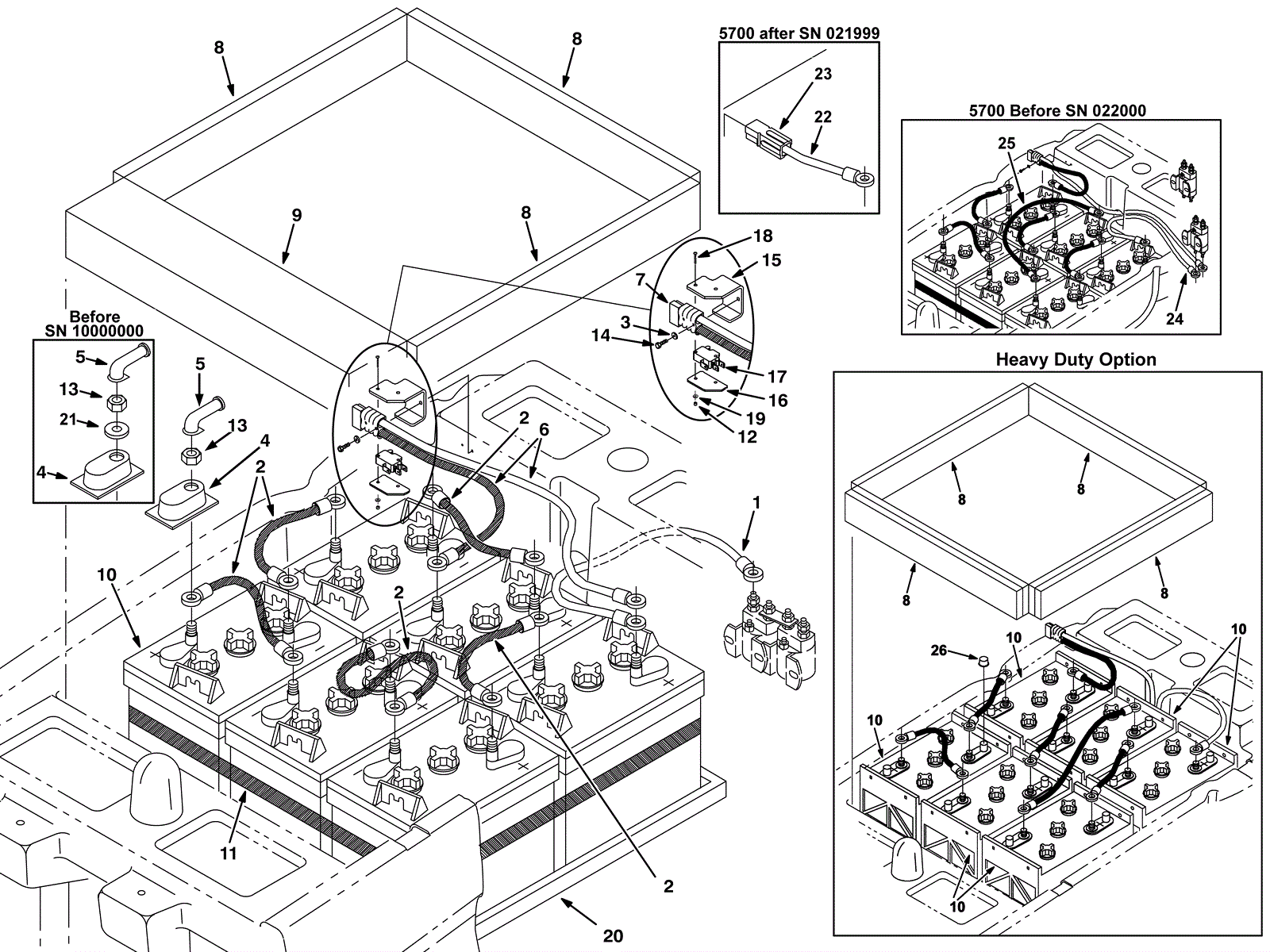

5680 Battery Assembly

#PartDescriptionPriceReqNotesAvailability
1a 175-2290 Battery cable (red) $22.40 1 (5680) usually ships 5-16 days
1b 275-0732 Wire assembly (red) $58.00 1 (5700) ships same day
2a 998-0010 Battery jumper cable - ring type (red) $3.87 5 ships same day
2b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $11.63 5 (NON-OEM) usually ships 5-16 days
3 999-1305 Washer M3 split lock stainless steel $0.99 2 ships same day
4a 175-2121 Battery terminal cover (clear) $3.60 12 (standard) (tall) usually ships 5-16 days
4b 275-5948 Battery terminal cover (black) $2.80 12 (optional) (short) usually ships 5-16 days
5 175-2122 90 degree cable boot $3.60 12 usually ships 5-16 days
6 175-2123 6 gauge battery cable assembly $104.30 1 (includes 7) ships same day
7 991-2105 SB50 50amp charger plug with pins (gray) $5.38 1 (5680) ships same day
8 175-2127 Battery spacer $5.80 3 (qty 4 for heavy duty option) ships same day
9 175-2128 Battery spacer $15.60 1 (not used on heavy duty) ships same day
10a 162-0003 6V 225Ah wet battery (SNSR) $269.50 6 ships same day
10b 162-0005 6V 305Ah wet battery (SNSR) $412.50 6 ships same day
10c 162-0043 6V 224Ah AGM battery (Group GC2) $456.50 6 ships same day
10d 162-0046 6V 335Ah AGM battery (Group J305) $654.50 6 ships same day
11 175-2130 Strap $30.30 1 ships same day
12 999-0768 Nut M3-.5 hex coarse thread plain finish $1.54 2 ships same day
13 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 12 ships same day
14a 999-1040 Screw M3-.5 x 20mm pan head $0.99 1 (before SN 9999999) ships same day
14b 999-1221 Screw M3-.5 x 25mm pan head stainless steel $0.99 2 (after SN 10000000) ships same day
15 175-6295 Connector bracket $21.70 1 (after SN 10000000) usually ships 5-16 days
16 175-6339 Switch plate (Tennant Industrial) $11.52 1 (after SN 10000000) usually ships 5-16 days
17 175-4578 Switch kit $33.20 1 (after SN 10000000) usually ships 5-16 days
18 999-1040 Screw M3-.5 x 20mm pan head $0.99 2 (after SN 10000000) ships same day
19 999-1305 Washer M3 split lock stainless steel $0.99 2 (after SN 10000000) ships same day
20 175-6365 Battery tray $113.30 1 ships same day
21 999-9097 Washer M8 flat stainless steel $0.99 12 (before SN 9999999) ships same day
22 275-0733 Wire assembly (red) $50.70 1 (5700 after SN 021999) (includes 23) ships same day
23 175-6423 Connector assembly (OBSOLETE) $6.30 1 (5700 after SN 021999) usually ships 5-16 days
24 175-2290 Battery cable (red) $22.40 1 (5700) (before SN 022000) usually ships 5-16 days
25 175-2530 Battery cable $18.40 1 (5700) (before SN 022000) ships same day
26 175-9755 Battery cap $2.50 6 (heavy duty) usually ships 1-5 days
N/S 375-0041 Battery cable $55.80 ships same day
