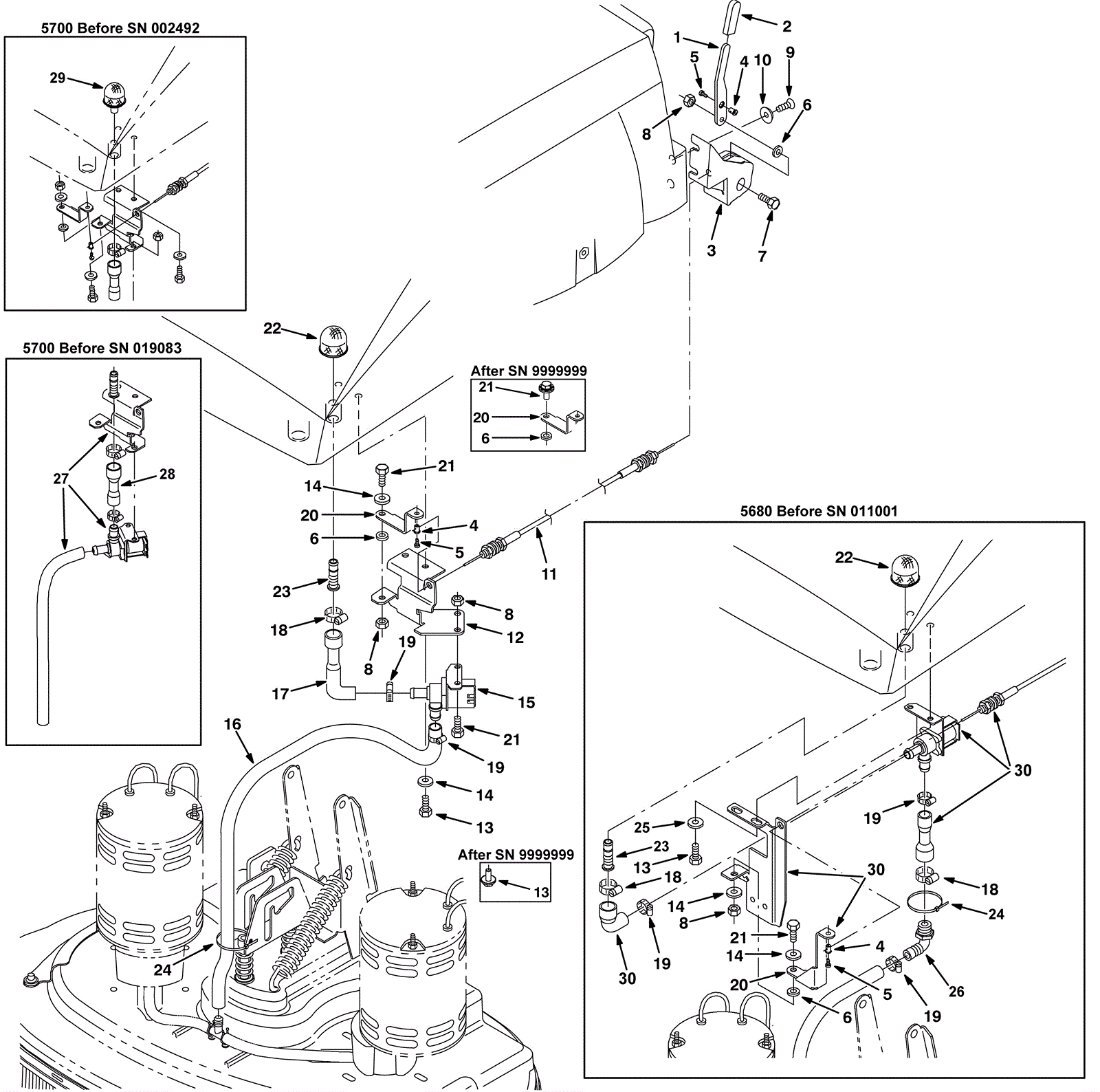

5700 SERIES Solution Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-2167 Control lever $23.21 1 usually ships 5-16 days
2 175-2166 Handle grip $4.95 1 usually ships 5-16 days
3 175-2165 Lever control housing $17.71 1 usually ships 5-16 days
4 175-2164 Swivel bushing $5.83 2 usually ships 5-16 days
5 999-0411 Screw 8-32 x 3/8 pan head slotted zinc plated $0.99 2 ships same day
6 175-2289 Washer $3.30 2 usually ships 5-16 days
7 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 1 ships same day
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 usually ships 11-24 days
9 999-1324 Screw M8-1.25 x 20mm flat head stainless steel $0.99 2 ships same day
10 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
11 175-2284 Push and pull cable $49.39 1 ships same day
12 175-2351 Valve mounting bracket $34.10 1 usually ships 5-16 days
13a 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 (before SN 10000000) ships same day
13b 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 1 (after SN 9999999) ships same day
14 999-9097 Washer M8 flat stainless steel $0.99 3 (before SN 10000000) ships same day
15a 175-2333 36V solenoid valve $123.20 1 (5680 after SN 011002) (5700 after SN 019082) (OEM) usually ships 1-5 days
15b 991-0110 36V solenoid valve $87.91 1 (NON-OEM) ships same day
16a 175-2161 HOSE, PVC, WIR, 0.50ID 0.75OD 027.0L (Tennant Industrial) $53.61 1 (5680 before SN 011002) usually ships 5-16 days
16b 175-2334 PVC hose $29.37 1 (5680 from SN 011002 to SN 9999999) (5700 from SN 019083 to SN 9999999) ships same day
16c 175-6294 3 foot hose (clear) (Tennant Industrial) $41.08 1 (after SN 9999999) ships same day
17 175-2349 Rubber hose $16.50 1 ships same day
18 175-0199 Hose clamp $6.38 1 usually ships 5-16 days
19 175-6081 Hose clamp $4.84 2 ships same day
20 175-2228 Valve lever $21.56 1 usually ships 5-16 days
21a 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 3 (before SN 10000000) ships same day
21b 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 2 (after SN 9999999) ships same day
22 175-2156 Solution filter $15.62 1 (5680) (5700 after SN 002491) ships same day
23 175-2157 Plastic fitting $4.95 1 ships same day
24 175-2162 Nylon wire tie $2.42 1 (5680 before SN 011001) usually ships 5-16 days
25 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 (5680 before SN 011001) ships same day
26 175-2160 Plastic fitting $10.01 1 (5680 before SN 011001) usually ships 1-5 days
27 175-2527 36V solenoid valve kit $263.56 1 (5700 before SN 019083) usually ships 5-16 days
28 175-3500 Valve hose $13.97 1 (5700 before SN 019083) usually ships 5-16 days
29 175-2528 Solution filter $35.42 1 (5700 before SN 002492) usually ships 5-16 days
30 175-2163 36V solenoid valve kit $621.17 1 (5680 before SN 011001) (OEM) usually ships 5-16 days
