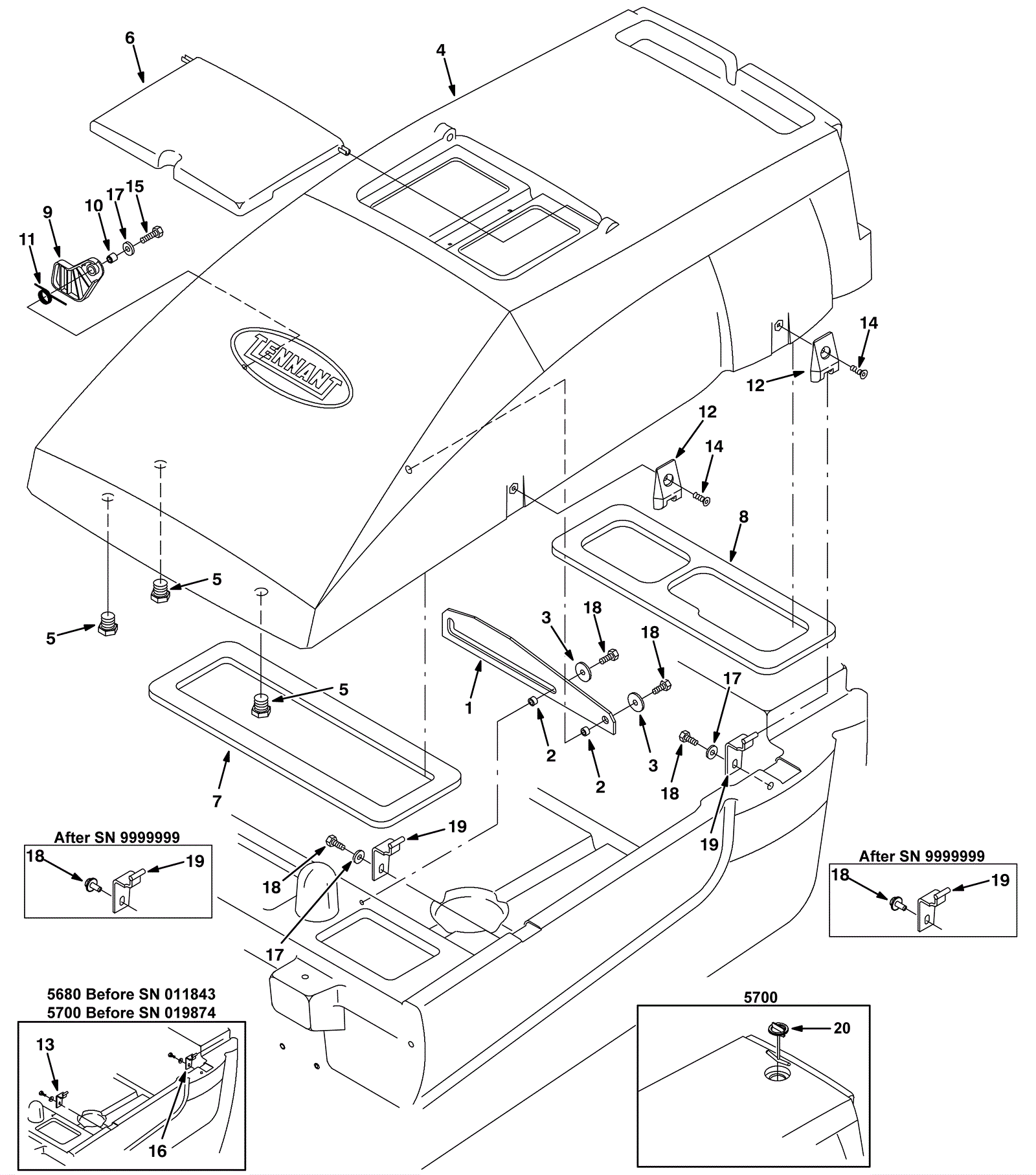

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-2261
|
Arm prop bracket |
1 |
|
|
2 |
175-2263
|
Sleeve |
2 |
|
|
3 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
4 |
175-2264
|
Solution tank with decal |
1 |
|
|
5 |
175-2247
|
Plastic fitting |
3 |
|
|
6a |
175-2266
|
Solution tank cover with decal |
1 |
(OEM) |
|
6b |
991-1255
|
Cover with decal |
1 |
(NON-OEM) (this is not an identical replacement and uses a cord instead of tabs to attach to machine - see documents section of model for more details) |
|
7a |
175-2267
|
Front tank gasket |
1 |
(OEM) |
|
7b |
991-3026
|
Front tank gasket |
1 |
(NON-OEM) |
|
8a |
175-2268
|
Rear tank gasket |
1 |
(OEM) |
|
8b |
991-3027
|
Rear tank gasket |
1 |
(NON-OEM) |
|
9 |
175-2269
|
Tank Support |
1 |
|
|
10 |
175-2249
|
Sleeve |
1 |
|
|
11 |
175-2270
|
Torsion spring |
1 |
|
|
12a |
175-2271
|
Leaf hinge |
2 |
|
|
12b |
175-2271
|
Leaf hinge |
2 |
(T7, 5680/5700) |
|
13 |
175-2125
|
Front leaf hinge weldment |
1 |
(5680 before SN 011843) (5700 before SN 019874) |
|
14 |
999-1324
|
Screw M8-1.25 x 20mm flat head stainless steel |
2 |
|
|
15 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
1 |
|
|
16 |
175-2240
|
Rear leaf hinge weldment |
1 |
(5680 before SN 011843) (5700 before SN 019874) |
|
17 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
3 |
|
|
18a |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
4 |
(before SN 10000000) |
|
18b |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
2 |
(after SN 9999999) |
|
19 |
275-0681
|
Hinge weldment |
2 |
(5680 after SN 011842) (5700 after SN 019873) |
|
20 |
175-2526
|
Solution tank plug (OBSOLETE) |
1 |
(5700) |
|
