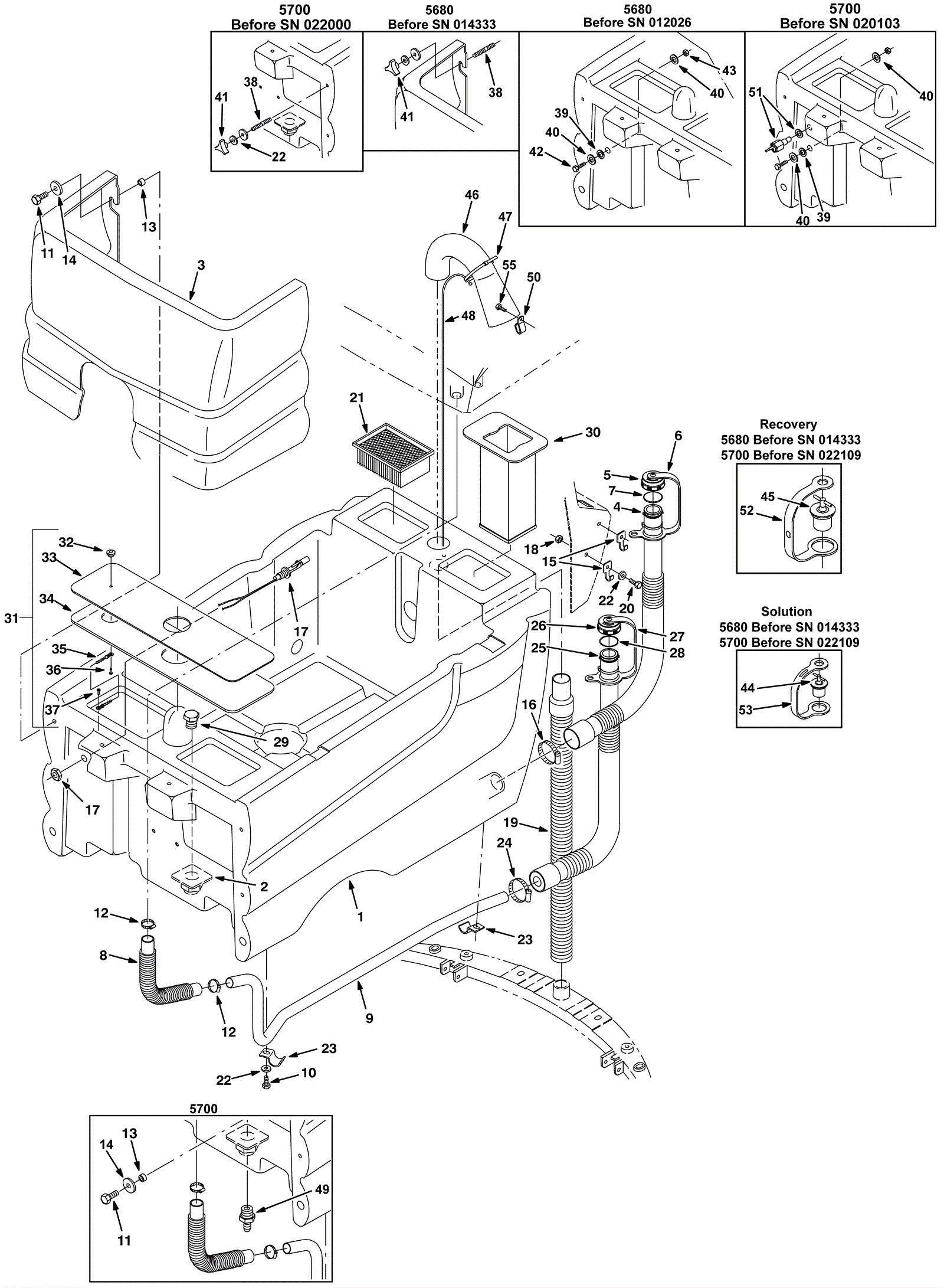

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1 175-2246 Recovery Tank 1 (includes item 2)
2a 175-2247 Plastic fitting 1 (5680 before SN 014333) (5700 before SN 022109)
2b 175-9552 Plastic fitting 1 (5680 after SN 014334) (5700 after SN 022108)
3a 275-1174 Front cover 1 (5680)
3b 275-0647 Front cover 1 (5700)
4a 175-2250 Drain hose assembly (recovery) 1 (includes 5-7) (OEM)
4b 991-5153 Drain hose assembly (recovery) 1 (NON-OEM)
5a 175-4214 Drain plug assembly 1 (5680 after SN 014334) (5700 after SN 022108) (OEM)
5b 991-3028 Drain plug assembly 1 (NON-OEM)
6 175-4214 Drain plug assembly 1 (5680 after SN 014334) (5700 after SN 022108)
7 175-5804 O-ring 1 (5680 after SN 014334) (5700 after SN 022108)
8 175-2251 Hose assembly 1
9 175-2252 Drain tube 1
10 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 2
11 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 4
12 175-2254 Hose clamp 2 (5700 models have a qty of 3 before SN 022109)
13 175-2263 Sleeve 4
14 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
15 175-2256 Hose hanger clip 2
16a 997-2006 Hose clamp 1 (5680 before SN 014333) (5700 before SN 022109)
16b 997-2003 Hose clamp 1 (5680 after SN 014334) (5700 after SN 022108)
17a 175-2262 Magnetic float sensor 1 (OEM)
17b 991-3037 Magnetic float sensor 1 (NON-OEM)
18 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
19a 175-2258 Vacuum hose assembly with cuff 1 (OEM)
19b 991-3032 Vacuum hose assembly with cuff 1 (NON-OEM)
20a 999-0767 Nut M10-1.5 hex coarse thread 2
20b 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 1 (5680 after SN 014334)
21a 175-2259 Vacuum fan filter 1 (OEM)
21b 991-9073 Vacuum fan filter 1 (NON-OEM)
22 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4
23 175-2260 P clamp 2
24a 175-2254 Hose clamp 1 (5680 before SN 014333) (5700 before SN 022109)
24b 997-2000 Hose clamp 1 (5680 after SN 014334) (5700 after SN 022108)
25a 775-0475 Drain hose assembly (solution) 1 (includes 26-28)
25b 991-5133 Drain hose assembly (solution) 1 (NON-OEM)
26 175-4214 Drain plug assembly 1 (includes 27 and 28) (5680 after SN 014334) (5700 after SN 022108) (OEM)
26b 991-3028 Drain plug assembly 1 (NON-OEM)
27 175-4214 Drain plug assembly 1 (5680 after SN 014334) (5700 after SN 022108)
28 175-5804 O-ring 1 (5680 after SN 014334) (5700 after SN 022108)
29 175-2247 Plastic fitting 1
30a 275-9116 Debris screen 1 (after SN 9999999) (OEM)
30b 991-3077 Debris screen 1 (after SN 9999999) (NON-OEM)
31a 275-6052 Tank update kit 1 (includes 32-37) (after SN 10480873) (OEM)
31b 991-3106 Tank update kit 1 (NON-OEM)
32 175-0096 Thumb knob 1 (after SN 10480873)
33 275-6284 Recovery tank cover 1 (after SN 10480873)
34 275-6285 Recovery tank cover gasket 1 (after SN 10480873)
35 175-5129 Ball chain #10 stainless steel 1 (after SN 10480873)
36 999-0586 Screw 10-24 x 1/2 truss head stainless steel 1 (after SN 10480873)
37 175-2146 Screw 6-20 x 1/2 pan head 1 (after SN 10480873)
38 175-2524 Plated stud 4 (5680 before SN 014333) (5700 before SN 022000)
39 175-2303 Rubber washer 1 (5680 before SN 012026) (5700 before SN 020103)
40 175-2362 Washer 17 x 30 x 3 flat stainless steel 2 (5680 before SN 012026) (5700 before SN 020103)
41 175-2525 Knob 4 (5680 before SN 014333) (5700 before SN 022000)
42 999-0776 Bolt M16-2 x 35mm hex head full thread 1 (5680) (before SN 012026)
43 999-0764 Nut M16-2 hex nylon insert lock zinc plated 1 (5680) (before SN 012026)
44 175-0184 Drain plug 1 (5680 before SN 014333) (5700 before SN 022109)
45a 175-4189 Expandable plug 1 (5680 before SN 014333) (5700 before SN 022109)
45b 991-3043 Expandable plug 1 (NON-OEM)
46 175-2311 Inlet hose 1
47 175-2202 Nylon wire tie 1 (5700)
48 175-2326 Cable 1 (5700)
49 175-2523 Plastic fitting 1 (5700)
50 175-2256 Hose hanger clip 1 (5700) (before SN 019217)
51 175-2522 Liquid level sensor kit 1 (5700) (before SN 020103)
52 175-2024 Drain hose strap 1 (5680 before SN 014333) (5700 before SN 022109)
53 175-2255 Strap 1 (5680 before SN 014333) (5700 before SN 022109)
55 175-2363 Screw 10-16 x 3/4 hex head thread forming 1 (5700) (before SN 019217)
