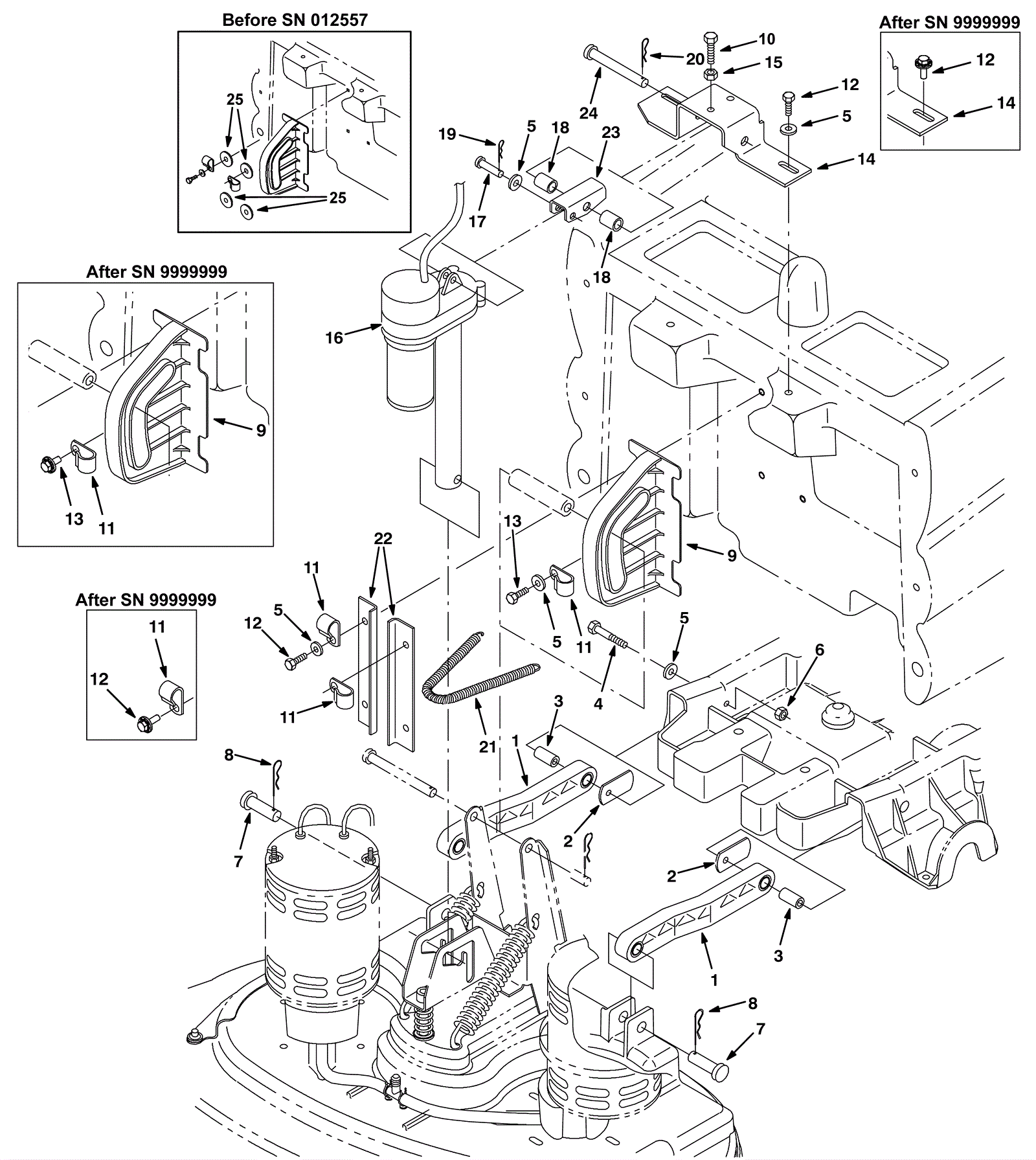

5680 Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-2102 Scrub head lifting arm $53.46 2 ships same day
2 175-2103 Lifting arm spacer $20.46 2 usually ships 10-16 days
3 175-2104 Sleeve $6.27 2 usually ships 10-16 days
4 999-0788 Screw M8-1.25 x 55mm hex head stainless steel $1.54 2 ships same day
5 999-9097 Washer M8 flat stainless steel $0.99 12 ships same day
6 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
7 175-2105 Clevis pin $7.37 2 usually ships 10-16 days
8 175-2106 Cotter hair pin $4.49 2 ships same day
9 175-2107 Roller guide bracket $49.83 1 (after sn 9999999) usually ships 1-5 days
10 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
11 175-2108 P clamp $5.15 3 usually ships 1-5 days
12a 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 6 (before SN 10000000) ships same day
12b 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 (after SN 9999999) ships same day
13a 999-0783 Screw M8-1.25 x 16mm hex head $0.99 1 (before SN 10000000) ships same day
13b 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 5 (after SN 9999999) ships same day
14 175-2347 Actuator mounting bracket $66.99 1 usually ships 1-5 days
15 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
16a 175-2110 36V actuator $495.22 1 (OEM) ships same day
16b 991-3031 36V actuator $217.36 1 (NON-OEM) usually ships 14-21 days
17 175-2111 Clevis pin $5.15 1 usually ships 10-16 days
18 175-2112 Sleeve $5.83 2 usually ships 10-16 days
19 175-2113 Cotter pin $3.30 1 ships same day
20 175-2117 Cotter pin $5.28 1 usually ships 10-16 days
21 175-2118 Extension spring $13.64 1 ships same day
22 175-2379 Roller guide bracket $24.86 2 (after SN 012558) usually ships 1-5 days
23 175-2348 Actuator mounting channel $30.25 1 usually ships 10-16 days
24 175-2116 Clevis pin $6.49 1 usually ships 10-16 days
25 175-2188 Washer $4.49 4 (before SN 012557) usually ships 10-16 days
