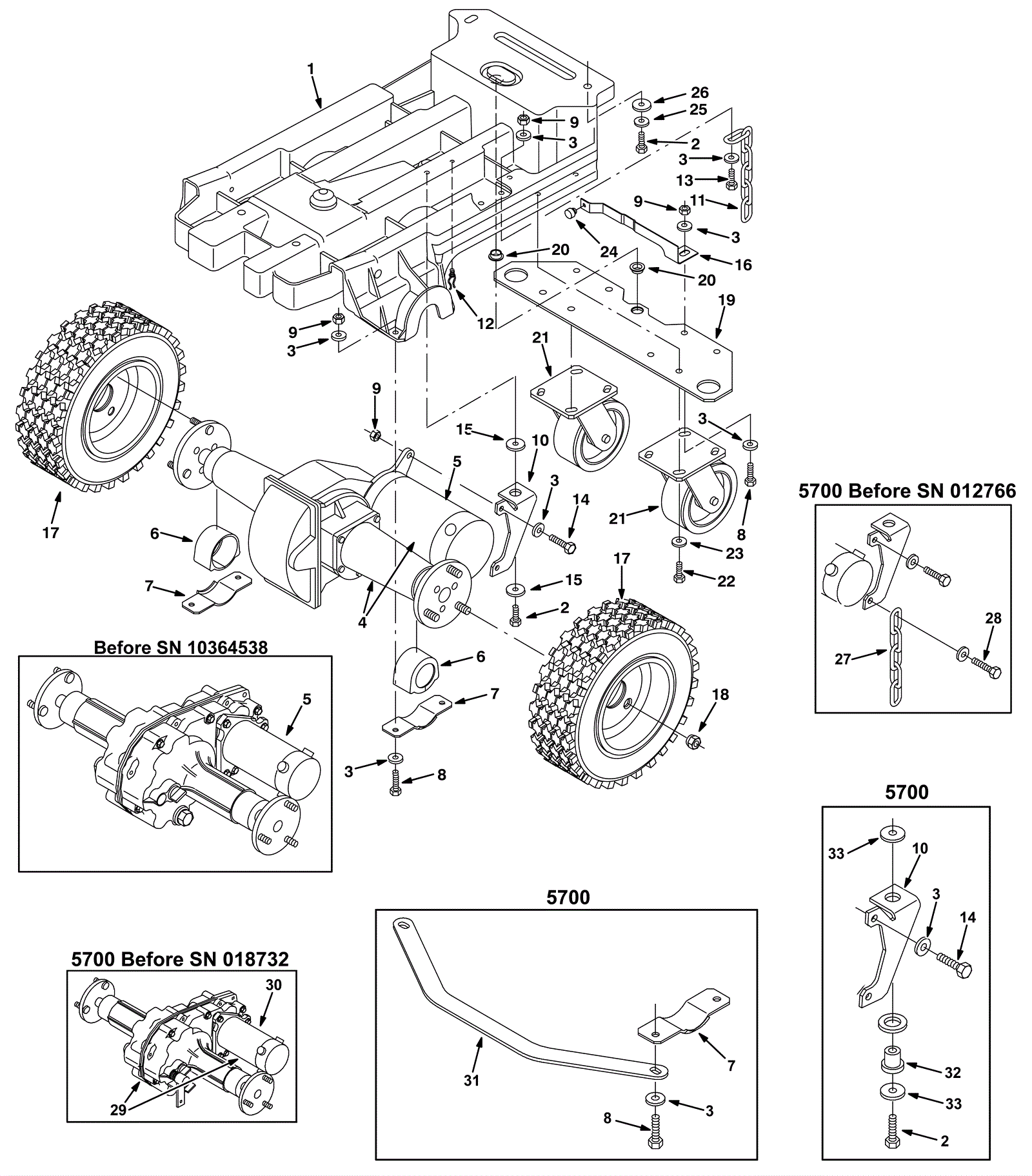

Chassis and Drive Assembly

#PartDescription ReqNotesAvailability
1 175-2088 Chassis (OBSOLETE) 1
2a 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 5 (5680)
2b 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 1 (5700)
3 999-9097 Washer M8 flat stainless steel 16
4a 175-2089 Transaxle assembly without parking brake 1 (includes 5a) (5680 before SN 10705715) (5700 after SN 018732) (includes 4d-4k which are the necessary parts to install a new or defective transaxle - see transaxle replacement kit tech bulletin) (OEM)
4b 991-3078 Transaxle assembly without parking brake 1 (includes 5a) (5680 before SN 10705715) (5700 after SN 018732) (includes 4d-4k which are the necessary parts to install a new or defective transaxle - see transaxle replacement kit tech bulletin) (NON-OEM)
4c 175-2441 Spring mounting bracket 1 5700XPS
4d 275-0564 Motor gear kit
4e 375-1144 Transaxle mounting bracket 1
4f 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 2
4g 999-0548 Washer 5/16 external star lock stainless steel 2
4h 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
4i 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 1
4j 275-1169 Washer .40 x 12mm flat 2
4k 175-2429 Vibration isolator 1
4l 999-0630 Washer 3/4 SAE flat 1
5a 475-4157 VR, TRANSAXLE KIT, W/ BRAKE [5680/5700] 1 (before SN 10364538) (OEM)
5c 275-0564 Motor gear kit 1 (includes o-ring, gear and clip)
5d 175-5366 Carbon brush kit (pkg of 4) (OBSOLETE) 1 (before SN 10364538)
5e 375-9471 Transaxle motor 1 (includes 5d) (from SN 10364538 to SN 10705714)
5f 275-6130 Carbon brush (pkg of 4) 1 (from SN 10364538 to SN 10705714)
5g 275-1226 VR, BEARING KIT, MOTOR, ELE (Tennant Industrial)
5h 991-5167 Carbon brush kit 1 (NON-OEM)
5i 991-5166 Transaxle motor 1 (NON-OEM for 5e)
6 175-2091 Transaxle isolator 2 (NON-OEM)
7 175-2092 Isolator bracket 2
8a 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 6 (before SN 10000000)
8b 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 6 (after SN 9999999)
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel 9
10 175-2093 Transaxle bracket 1
11 175-2094 Chain 1
12 175-2095 Keeper clip 1
13 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 1
14a 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2 (before SN 10364539)
14b 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 2 (after SN 10364538)
15 175-2298 Washer .38 x .06 stainless steel 2
16 175-2097 Flat centering spring 1
17a 175-2098 Foam tire assembly with 3 holes 2 (OEM)
17b 991-5127 Foam tire assembly with 3 holes 2 (NON-OEM)
17c 175-2098 Foam tire assembly with 3 holes 2
17e 991-3045 Drive wheel 2 (NON-OEM)
17d 175-9062 Pneumatic tire and rim assembly 2
18 175-2288 Lug nut 6
19a 175-2124 Caster bracket 1 5680
19b 175-2430 Caster bracket 1 5700
20 175-2099 Flanged bushing 2
21a 175-2100 5 inch caster wheel assembly (gray) 2
21b 991-2011 Caster wheel assembly 2 (NON-OEM)
22 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 6
23 999-1407 Washer 5/16 belleville 6
24 175-2101 Rubber bumper cap 1
25 175-7920 Washer M8 flat stainless steel 4
26 275-1169 Washer .40 x 12mm flat 4 (5680)
27 175-2431 Brass static chain 1 (5700) (before SN 012766)
28 175-2854 Screw M8-1.25 x 45mm hex head stainless steel 1 (5700) (before SN 012766)
29 175-2432 Transaxle assembly with parking brake (OBSOLETE) 1 (includes 30) (5700) (before SN 018732)
30a 475-4157 VR, TRANSAXLE KIT, W/ BRAKE [5680/5700] 1 (5700) (before SN 018732) (OEM)
30c 275-0564 Motor gear kit 1 (includes o-ring, gear and clip)
31 175-2428 Frame support bracket 1 (5700)
32 175-2429 Vibration isolator 1 (5700)
33 275-1169 Washer .40 x 12mm flat 2 (5700)
