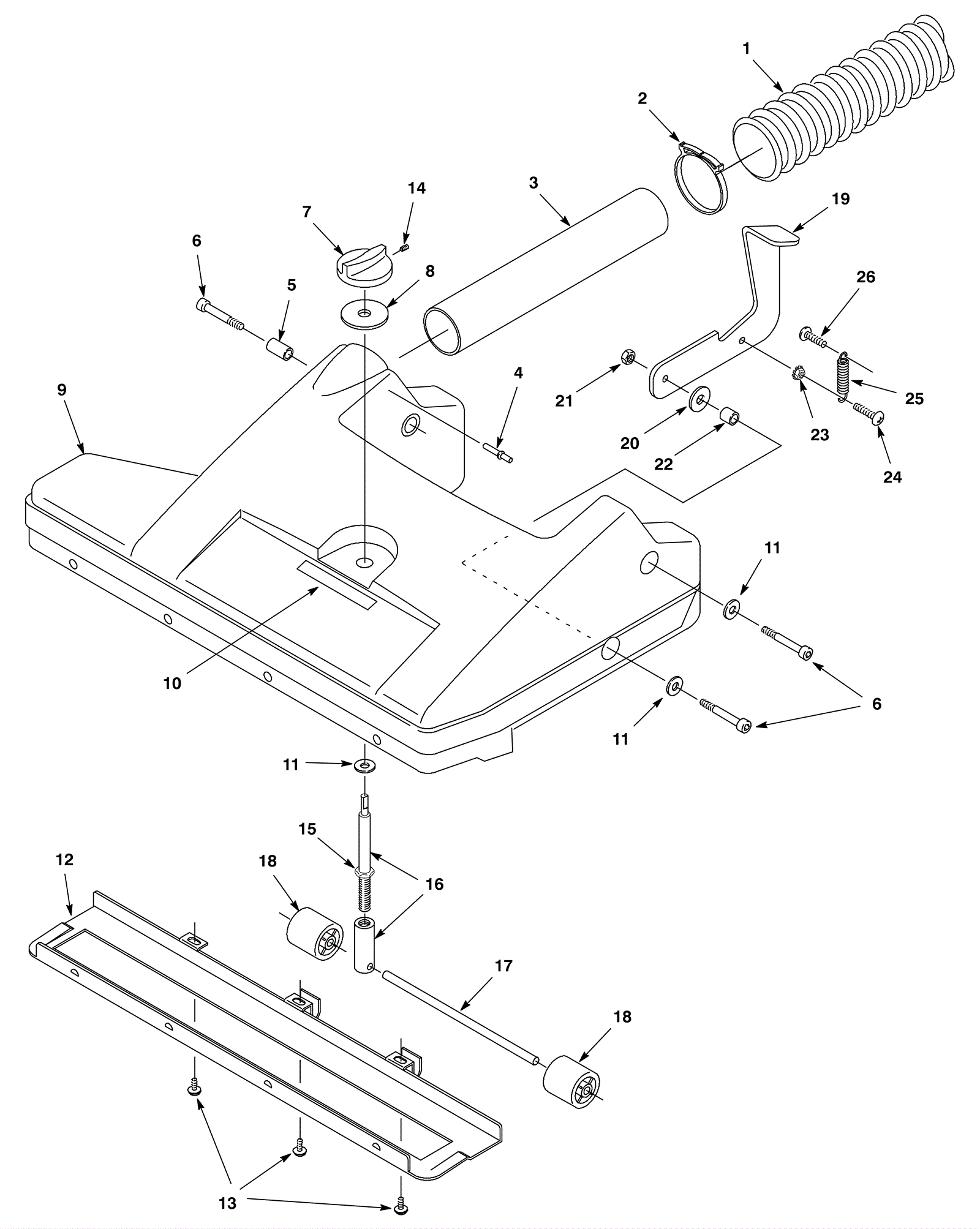

V-WA-26 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-1714 Hose with cuff 2 inches $119.01 1 usually ships 5-16 days
2 997-2003 Hose clamp $2.66 1 ships same day
3 175-1716 Base tube $19.69 1 usually ships 5-16 days
4 997-1004 Pop rivet $1.87 1 usually ships 11-24 days
5 175-1718 Adjusting nylon bushing $30.69 1 usually ships 1-5 days
6 175-1719 Shoulder bolt $4.95 3 usually ships 5-16 days
7 175-1720 Height adjusting knob $22.88 1 usually ships 5-16 days
8 175-1721 Washer 1/2 x 3/8 x 1/8 felt $4.84 1 usually ships 5-16 days
9 275-9788 Base (black) $469.70 1 usually ships 1-5 days
10 175-1725 Brush height adjustment decal $13.75 1 usually ships 1-5 days
11 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 3 ships same day
12 175-1731 26 inch shoe plate (OBSOLETE) $330.11 1 usually ships 5-16 days
13 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated $0.99 6 ships same day
14 275-8031 Screw 8-32 X 1/2 socket set $3.30 1 usually ships 5-16 days
15 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 1 ships same day
16 175-1715 Pivot block and adjsuting shaft assembly $47.30 1 usually ships 5-16 days
17 175-1732 Axle roller shaft $66.44 1 usually ships 5-16 days
18 175-0061 Roller wheel $9.35 4 usually ships 5-16 days
19 175-1741 Foot pedal latch plate $37.29 1 usually ships 5-16 days
20 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
21 999-0430 Nut 5/16-18 hex jam plain finish $0.99 2 ships same day
22 175-1512 Spacer $8.58 1 ships same day
23 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 1 ships same day
24 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 1 ships same day
25 175-1742 Latch spring $5.39 1 usually ships 5-16 days
26 999-1077 Screw 1/4-20 x 1/2 truss head phillips stainless steel $2.24 1 ships same day
N/S 175-1743 Wire harness $13.20 1 usually ships 1-5 days
N/S 175-1734 Height adjustment assembly $112.86 1 (includes 14-17) usually ships 1-5 days
