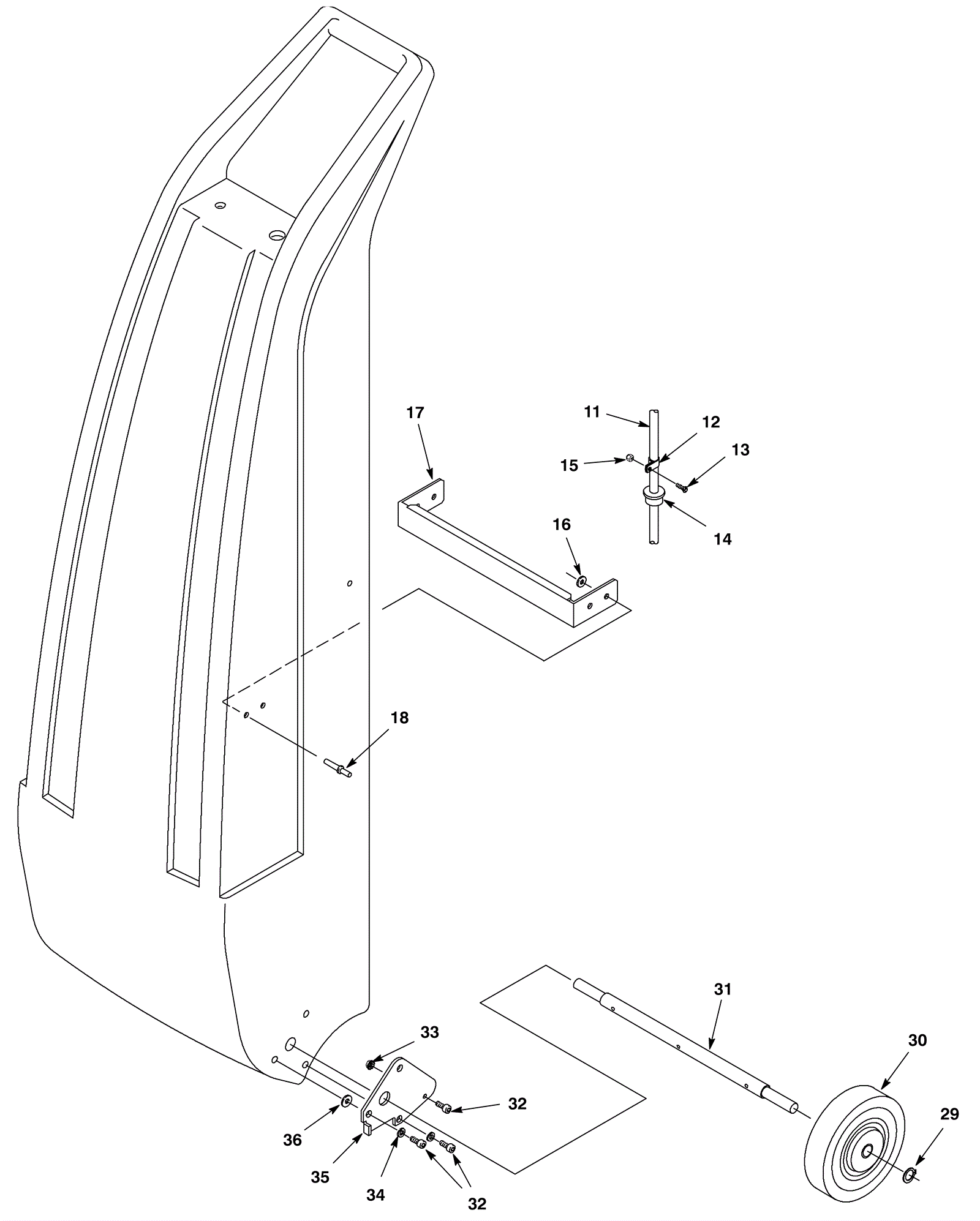

V-WA-26 Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
11 175-1778 Cord 18/3 x 41 inches $14.63 1 usually ships 5-16 days
12 175-0144 P clamp $3.19 3 usually ships 5-16 days
13 999-1582 Screw 6-32 x 1/2 flat head phillips stainless steel $0.99 3 usually ships 1-5 days
14 175-1768 Grommet 5/16 x 1 $2.64 1 usually ships 1-5 days
15 999-0144 Nut 6-32 k-lock zinc plated $0.99 3 ships same day
16 999-0266 Washer #8 SAE flat stainless steel $0.99 4 ships same day
17 175-1769 Handle brace $11.55 1 usually ships 1-5 days
18 175-0895 Rivet $2.75 4 usually ships 1-5 days
29 175-1775 Retaining ring $4.95 2 usually ships 5-16 days
30 275-5209 Wheel (gray) $23.98 2 ships same day
31 175-1773 Wheel axle $57.42 1 usually ships 5-16 days
32 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 3 ships same day
33 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 1 ships same day
34 175-1776 High collar washer $2.64 2 usually ships 5-16 days
35 175-1777 Latch plate $91.19 1 usually ships 5-16 days
36 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
