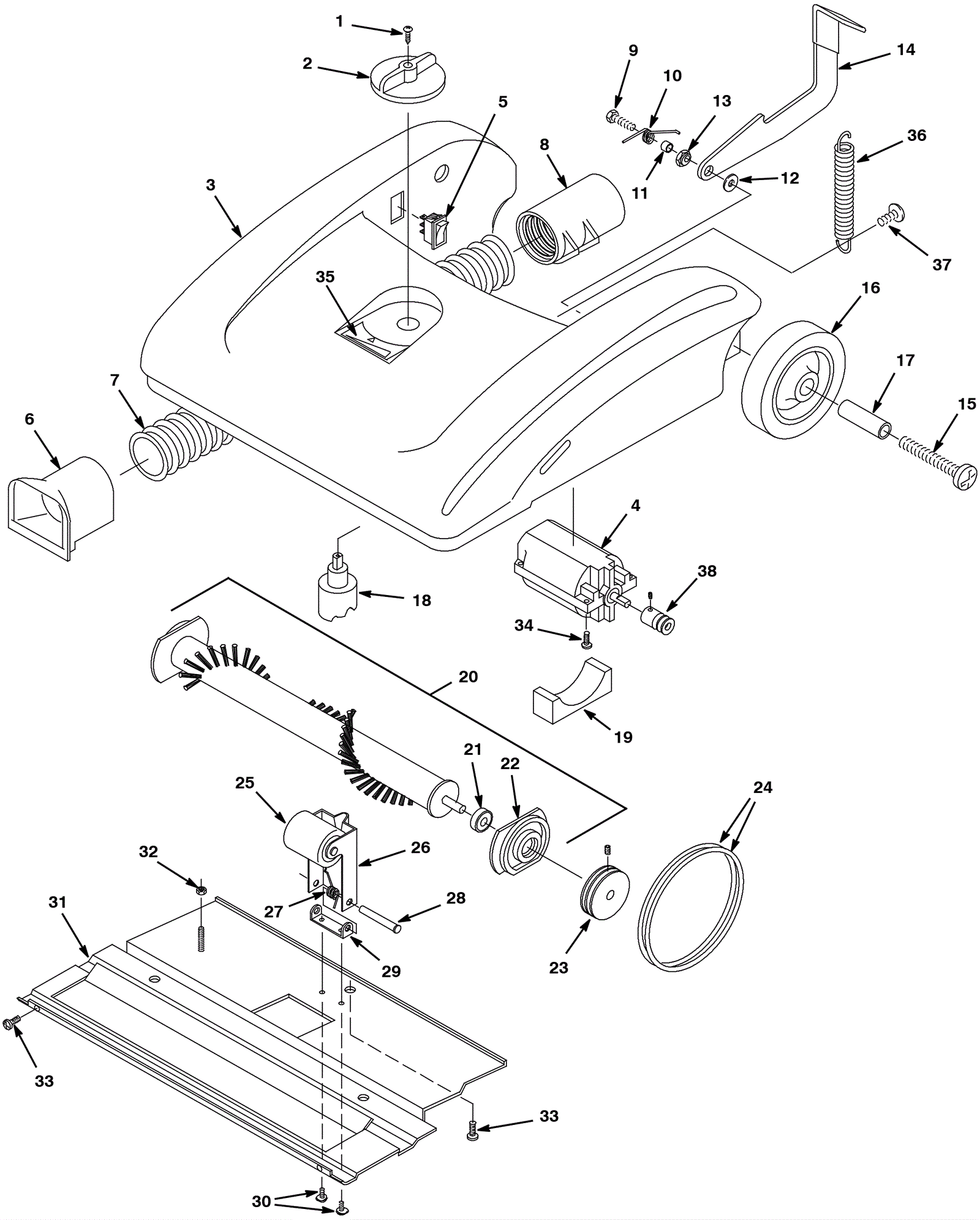

V-HDU-14 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 1 ships same day
2 175-0145 Height adjustment knob $8.80 1 usually ships 1-5 days
3 275-9774 Base $659.34 1 usually ships 1-5 days
4a 175-0073 Brush motor $203.39 1 (120V) usually ships 5-16 days
4b 175-0074 Brush motor 220V (OBSOLETE) $93.17 1 (240V) usually ships 5-16 days
5 175-0136 On/off rocker switch $11.11 1 ships same day
6a 175-0116 Vacuum hose assembly with two cuffs (OBSOLETE) $41.58 1 (includes 6b-8) usually ships 5-16 days
6b 175-0148 Base inlet cuff $20.24 1 usually ships 5-16 days
7 175-0149 Flex hose $20.24 1 ships same day
8 175-0150 Wand cuff $14.30 1 usually ships 5-16 days
9 175-0192 Screw M6 x .25mm hex head $3.63 1 usually ships 5-16 days
10 175-0151 Torsion spring $4.29 1 usually ships 5-16 days
11 175-0152 Spacer $3.85 1 usually ships 5-16 days
12 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
13 175-0153 Bushing $22.88 1 usually ships 1-5 days
14 175-0154 Foot latch $28.82 1 usually ships 1-5 days
15 175-5593 Screw M8 x 35mm truss head phillips $4.73 2 usually ships 5-16 days
16 175-0117 Guide wheel with bushing $9.68 2 (includes 17) ships same day
17 175-0155 Bushing $5.39 2 usually ships 5-16 days
18 175-0080 Height adjustment cam $19.47 1 usually ships 1-5 days
19 175-0156 Brush motor gasket $6.27 1 usually ships 5-16 days
20 175-0118 14 inch brush assembly $68.31 1 (includes 21-22) ships same day
21a 175-0069 Brush bearing $18.26 2 (OEM) ships same day
21b 991-5125 Brush bearing $2.75 2 (NON-OEM) ships same day
22 175-0068 Bearing block $49.94 2 usually ships 5-16 days
23 175-0067 Brush pulley $30.80 1 usually ships 5-16 days
24 175-0079 Brush drive belt $6.27 2 ships same day
25a 175-0158 Roller and bracket assembly $70.95 1 (includes 25b-29) usually ships 5-16 days
25b 175-0061 Roller wheel $9.35 1 usually ships 5-16 days
26 175-0060 Roller bracket $22.66 1 usually ships 5-16 days
27 175-0063 Torsion spring $4.73 1 usually ships 1-5 days
28 175-0062 Axle rivet $3.96 2 usually ships 5-16 days
29 175-0064 Pivot bracket $18.37 1 usually ships 1-5 days
30 999-0879 Screw 8-32 x 1/4 truss head slotted stainless steel $0.99 2 ships same day
31 175-0159 14 inch shoe (OBSOLETE) $105.05 1 usually ships 5-16 days
32 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
33 999-0530 Screw M4-.7 x 8mm pan head slotted zinc $0.99 5 ships same day
34 999-1111 Screw 6-32 x 3/4 pan head phillips sheet metal $1.43 2 ships same day
35 175-0160 Height adjustment decal $3.74 1 usually ships 1-5 days
36 175-0193 Extension spring $12.98 1 usually ships 1-5 days
37 175-0194 Screw M8 x 25mm pan head phillips $3.30 1 usually ships 5-16 days
38 175-0157 Motor pulley (OBSOLETE) $25.63 1 usually ships 5-16 days
