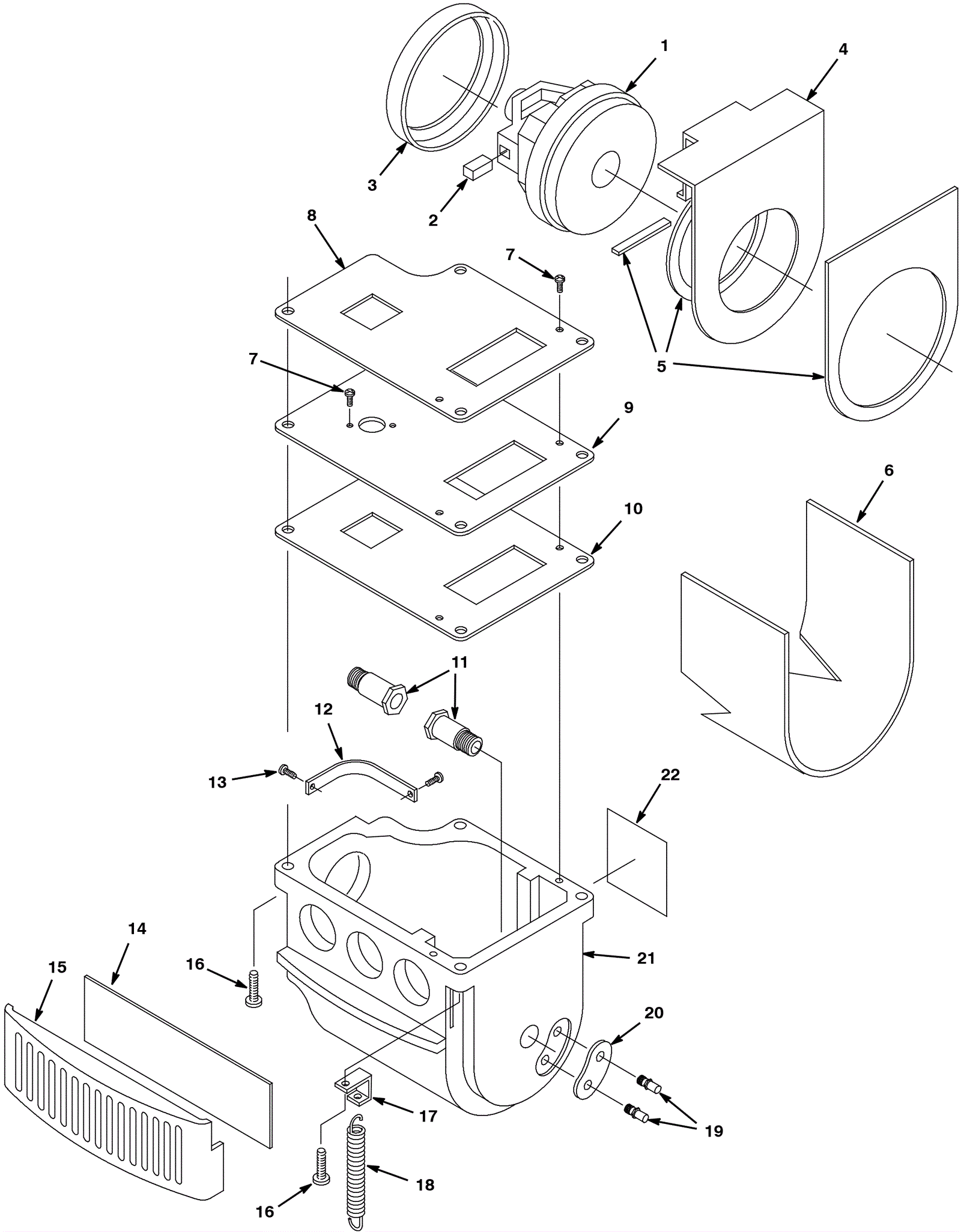

V-HDU-14 Vacuum Motor Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1a 175-0113 120V vacuum motor $185.46 1 (includes 2a) (120V) usually ships 5-16 days
1b 275-2289 Vacuum motor 5.1 $199.32 1 (includes 2b) (240V) usually ships 1-5 days
2a 175-0114 Carbon brush (pkg of 2) $34.87 2 usually ships 5-16 days
2b 275-2290 Carbon brush $34.87 2 usually ships 1-5 days
3 175-0163 Vacuum motor gasket $18.59 1 usually ships 1-5 days
4 175-0165 Inlet plate $40.37 1 usually ships 1-5 days
5 175-0166 Inlet plate gasket $8.47 1 usually ships 1-5 days
6 175-0164 Noise foam 1/4 x 14 inch $16.39 1 usually ships 1-5 days
7 999-1042 Screw M4-1 x 12mm pan head phillips zinc $0.99 4 ships same day
8 175-0167 Upper plate gasket $10.23 1 usually ships 1-5 days
9 175-0169 Vacuum motor clamping plate $10.23 2 usually ships 1-5 days
10 175-0170 Lower plate gasket $10.23 1 usually ships 1-5 days
11 175-0179 Shoulder pivot screw $3.96 2 usually ships 5-16 days
12 175-0172 Strap $10.89 1 usually ships 5-16 days
13 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 2 ships same day
14 175-0120 Exhaust filter $4.62 1 ships same day
15a 275-9772 Exhaust filter cover (gray) $17.71 1 ships same day
15b 175-1783 Exhaust filter cover (teal) $12.65 1 usually ships 5-16 days
16 175-7508 Screw M6 x 1 x 35mm truss head phillips zinc (OBSOELTE) $4.29 1 usually ships 5-16 days
17 175-7511 Spring mounting bracket $16.17 1 usually ships 1-5 days
18 175-0193 Extension spring $12.98 1 usually ships 1-5 days
19 175-0129 Foot latching stud $10.01 2 usually ships 1-5 days
20 175-0171 Foot latching plate $13.75 1 usually ships 1-5 days
21 275-9773 Motor housing $357.72 1 usually ships 1-5 days
22 275-8006 Warning decal $13.20 1 usually ships 1-5 days
N/S 175-0174 Lower wiring harness $52.36 1 usually ships 5-16 days
