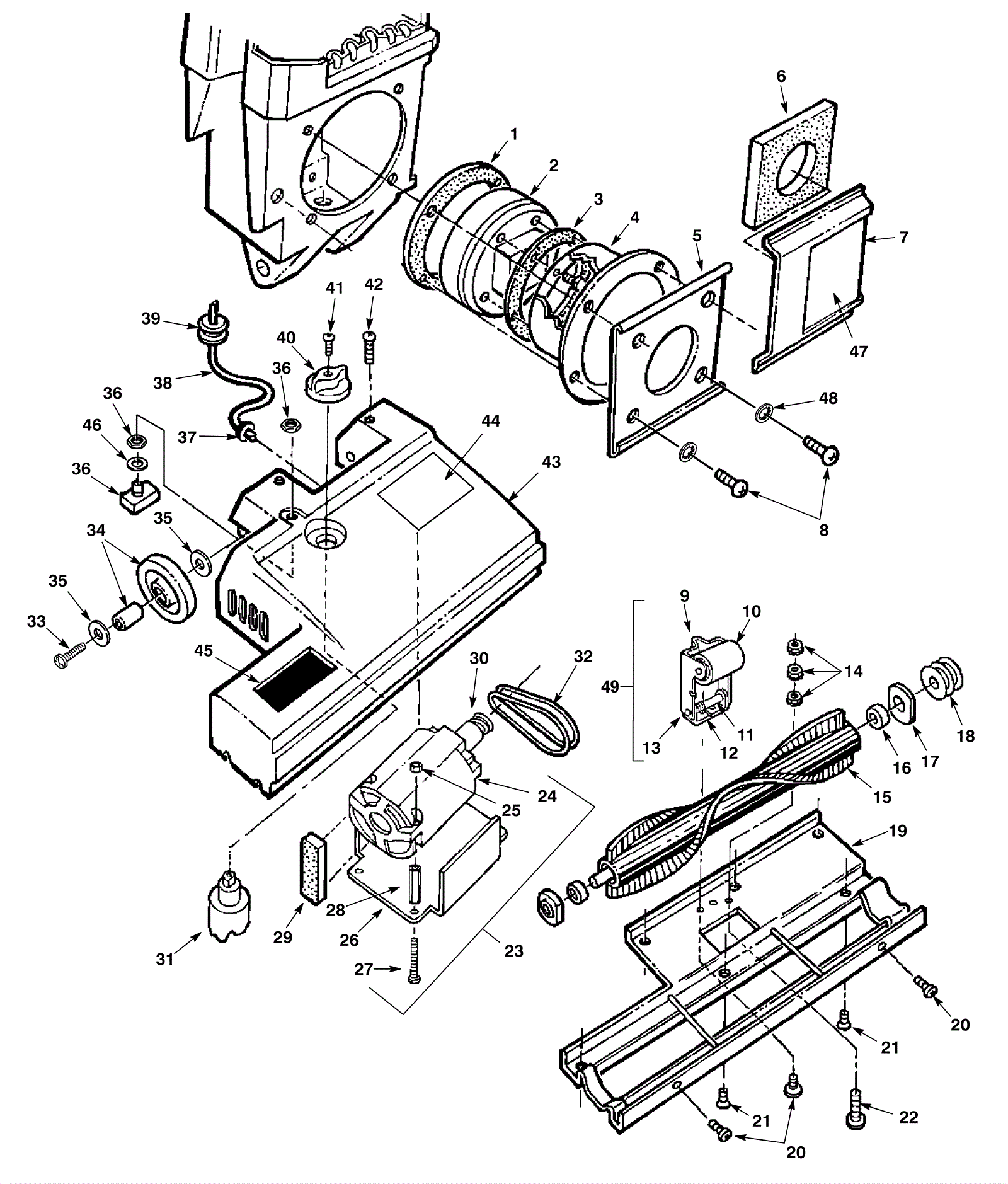

UV-1600 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-0043 Recovery tank gasket $8.80 1 usually ships 10-16 days
2a 175-8984 120V vacuum motor $221.98 1 usually ships 10-16 days
2b 175-0044 Carbon brush $26.29 1 usually ships 10-16 days
3c 991-1206 120V 1 stage vacuum motor peripheral $120.99 1 (NON-OEM) usually ships 14-21 days
3 175-0053 Gasket $8.14 1 ships same day
4a 175-0054 Vacuum motor cover (OBSOLETE) $22.11 1 usually ships 1-5 days
4b 175-0055 Grommet (OBSOLETE) $1.32 3 usually ships 1-5 days
4c N/A Not available Call for price 1 Motor screen usually ships 3-26 days
4d 999-0056 Screw 10-32 x 3/8 round head slotted zinc plated $0.99 2 ships same day
5 275-9762 Cover plate (white) (OBSOLETE) $18.81 1 usually ships 1-5 days
6 175-0058 Exhaust filter (OBSOLETE) $43.12 1 usually ships 10-16 days
7 175-0059 Exhuast filter cover (OBSOLETE) $24.75 1 usually ships 10-16 days
8 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 4 ships same day
9 175-0060 Roller bracket $23.21 1 usually ships 10-16 days
10 175-0061 Roller wheel $9.57 1 usually ships 10-16 days
11 175-0062 Axle rivet $4.88 2 usually ships 10-16 days
12 175-0063 Torsion spring $5.50 1 usually ships 1-5 days
13 175-0064 Pivot bracket $18.81 1 usually ships 1-5 days
14 999-0356 Nut 10-24 lock stainless steel $0.99 4 ships same day
15 175-0066 Brush and bearing block assembly $207.13 1 (includes 16 and 17) usually ships 10-16 days
16a 175-0069 Brush bearing $18.70 2 (OEM) ships same day
16b 991-5125 Brush bearing $2.75 2 (NON-OEM) ships same day
17 175-0068 Bearing block $51.04 2 usually ships 10-16 days
18 175-0067 Brush pulley $30.80 1 usually ships 10-16 days
19 175-0070 Carpet shoe (OBSOLETE) $119.57 1 usually ships 10-16 days
20 999-0879 Screw 8-32 x 1/4 truss head slotted stainless steel $0.99 4 ships same day
21 275-9763 Screw 10-24 x 19/50 flat head phillips $4.09 6 usually ships 1-5 days
22 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 1 ships same day
23 175-0071 Motor assembly with bracket $214.39 1 (includes 24-29) usually ships 1-5 days
24 175-0073 Brush motor (OBSOLETE) $203.39 1 usually ships 10-16 days
25 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 4 ships same day
26 175-0076 Bracket $386.76 1 usually ships 1-5 days
27 999-1580 Screw 6-32 x 1 3/4 flat head phillips stainless steel $0.99 4 usually ships 1-5 days
28 175-0077 Spacer $27.28 4 usually ships 1-5 days
29 175-0078 Filter $26.84 2 usually ships 1-5 days
30 175-0157 Motor pulley (OBSOLETE) $25.63 1 usually ships 10-16 days
31 175-0080 Height adjustment cam $19.47 1 usually ships 1-5 days
32 175-0079 Brush drive belt $6.49 2 ships same day
33 175-3716 Screw 5/16-18 x 1 3/4 $9.57 2 usually ships 10-16 days
34 175-0117 Guide wheel with bushing $9.90 2 ships same day
35 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
36a 175-0084 Actuator push switch $17.60 1 ships same day
36b 991-8558 Switch $23.75 1 ships same day
37 175-0085 Strain relief bushing $4.09 1 usually ships 1-5 days
38 N/A Not available Call for price 1 usually ships 3-26 days
39 275-6121 Grommet (OBSOLETE) $1.98 1 usually ships 1-5 days
40 175-0088 Knob roller (OBSOLETE) $5.39 1 usually ships 1-5 days
41 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 1 ships same day
42 999-0082 Screw 10-24 x 1/4 round head slotted zinc plated $0.99 2 ships same day
43 275-9765 16 inch base assembly with decal (blue) (OBSOLETE) $215.82 1 (includes 44) usually ships 1-5 days
44 275-8006 Warning decal $13.53 1 usually ships 1-5 days
45 175-0089 Height adjustment decal (OBSOLETE) $2.11 1 usually ships 1-5 days
46 275-9764 Washer 5/9 flat (OBSOLETE) $1.98 1 usually ships 1-5 days
47 N/A Not available Call for price 1 (Decal) usually ships 3-26 days
48 999-0053 Washer #10 split lock plain finish $0.99 4 ships same day
49 175-0158 Roller and bracket assembly $72.38 1 (includes 9-13) usually ships 10-16 days
