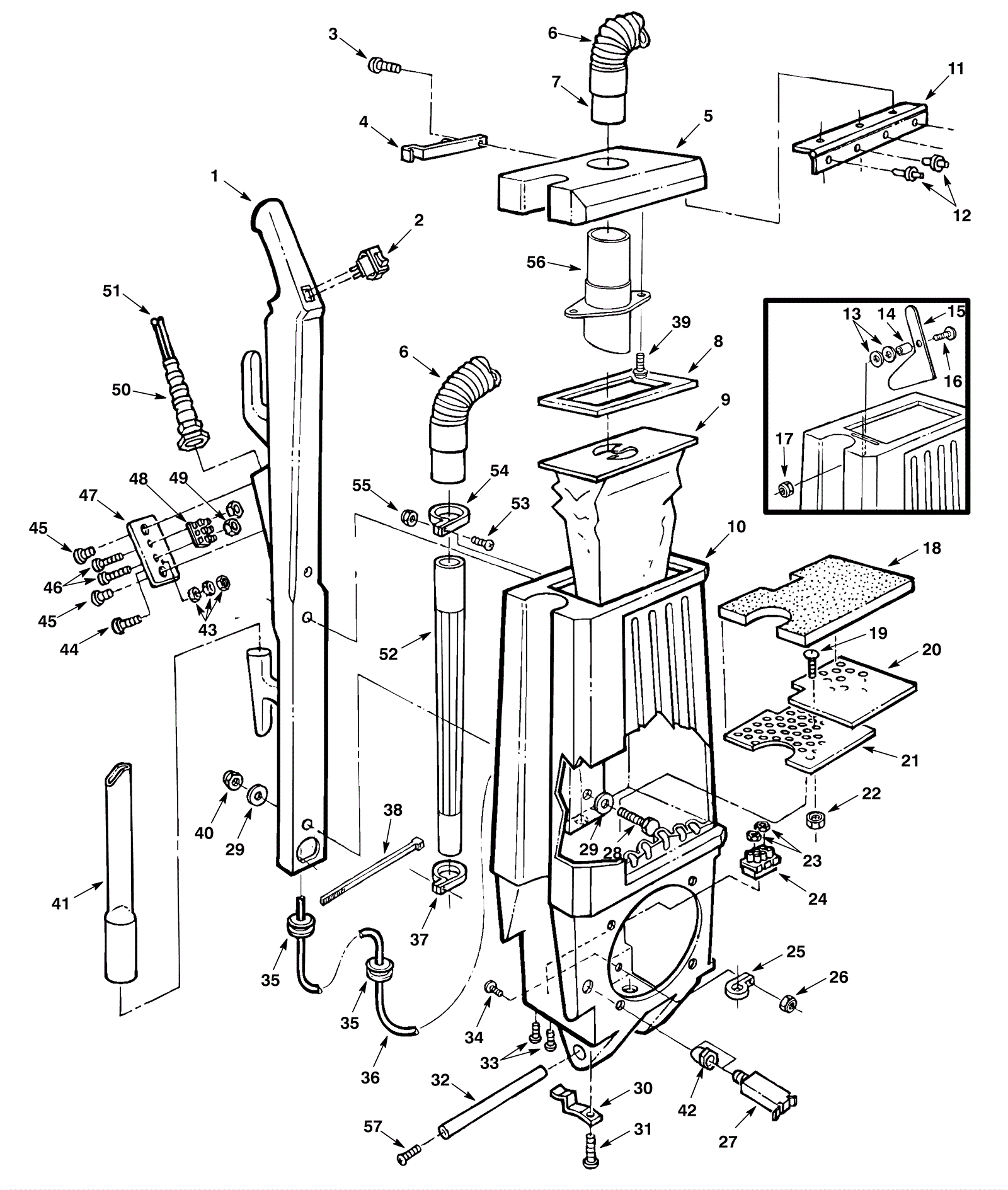

UV-1600 Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-0003 Handle (OBSOLETE) $79.53 1 usually ships 1-5 days
2 175-0136 On/off rocker switch $11.44 1 ships same day
3 175-4398 Screw M5-.8 x 10mm phillips truss head zinc $3.83 1 usually ships 10-16 days
4 175-0125 Lid latch $9.13 1 usually ships 10-16 days
5 175-0010 Bag cover (OBSOLETE) $76.45 1 usually ships 1-5 days
6 275-8033 Hose assembly 1 1/4 x 28 inch (black) (OBSOLETE) $117.15 1 (includes 7) usually ships 10-16 days
7 175-0012 Hose cuff $11.22 2 usually ships 10-16 days
8 175-0013 Gasket cover (OBSOLETE) $4.84 1 usually ships 10-16 days
9a 175-0014 Vacuum bags (pkg of 10) $6.15 1 ships same day
9b 991-8518 Paper vacuum bags (pkg of 10 and 2 filters) $13.68 1 (NON-OEM) ships same day
10 175-0016 Bag housing (OBSOLETE) $70.84 1 usually ships 1-5 days
11 175-3633 Hinge $7.70 1 usually ships 10-16 days
12b 175-0019 Pop rivet (cover) $5.15 3 usually ships 1-5 days
13 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
14 275-9735 Bushing (OBSOLETE) $2.24 1 usually ships 1-5 days
15 175-0021 Bag lockout plate (OBSOLETE) $4.73 1 usually ships 1-5 days
16 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 1 ships same day
17 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
18 175-0023 Foam filter (OBSOLETE) $20.02 1 usually ships 10-16 days
19 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 1 ships same day
20 175-0024 Bag housing screen (OBSOLETE) $14.63 1 usually ships 1-5 days
21 175-0025 Bag housing screen w/halfmoon (OBSOLETE) $15.40 1 usually ships 1-5 days
22 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
23 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
24 175-0027 25amp terminal strip $6.05 1 usually ships 10-16 days
25 175-0028 Clamp (OBSOLETE) $1.45 1 usually ships 1-5 days
26 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 1 ships same day
27 175-0030 1.5amp circuit breaker $25.19 1 usually ships 10-16 days
28 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 2 ships same day
29 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
30 N/A Not available Call for price 2 (Spring latch handle) usually ships 3-26 days
31 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 2 ships same day
32 175-0033 Pivot shaft (OBSOLETE) $15.29 1 usually ships 1-5 days
33 999-0102 Screw 6-32 x 1 round head slotted zinc plated $0.99 2 ships same day
34 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 1 ships same day
35 275-6121 Grommet (OBSOLETE) $1.98 2 usually ships 1-5 days
36 175-0035 Cord 18/3 x 42 (OBSOLETE) $5.83 1 usually ships 1-5 days
37 175-0036 Clamp $21.45 1 usually ships 10-16 days
38 175-0037 Wire tie $3.96 1 usually ships 10-16 days
39 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 2 ships same day
40 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
41 175-0039 Crevice tool (OBSOLETE) $4.88 1 usually ships 1-5 days
42 175-7699 Switch boot $11.00 1 usually ships 10-16 days
43 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
44 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 1 ships same day
45 999-0879 Screw 8-32 x 1/4 truss head slotted stainless steel $0.99 2 ships same day
46 999-0475 Screw 6-32 x 3/4 pan head slotted zinc plated $0.99 2 ships same day
47 175-0042 Plate terminal block (OBSOLETE) $4.09 1 usually ships 1-5 days
48 175-0027 25amp terminal strip $6.05 1 usually ships 10-16 days
49 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
50 175-0001 Strain relief $12.65 1 ships same day
51a 181-1201 18/3 power cord 40 foot $98.68 1 ships same day
51b 991-5007 18/3 replacement power cord 50 foot (black) $32.10 1 (NON-OEM) ships same day
52 175-0048 Tube extension $16.61 1 usually ships 10-16 days
54 175-3123 Cable tie $4.88 1 usually ships 1-5 days
55 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
56 175-0050 Hose adapter $10.89 1 ships same day
57 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 2 ships same day
N/S 175-0008 Latch cover $18.37 1 (includes 3 and 4) usually ships 1-5 days
