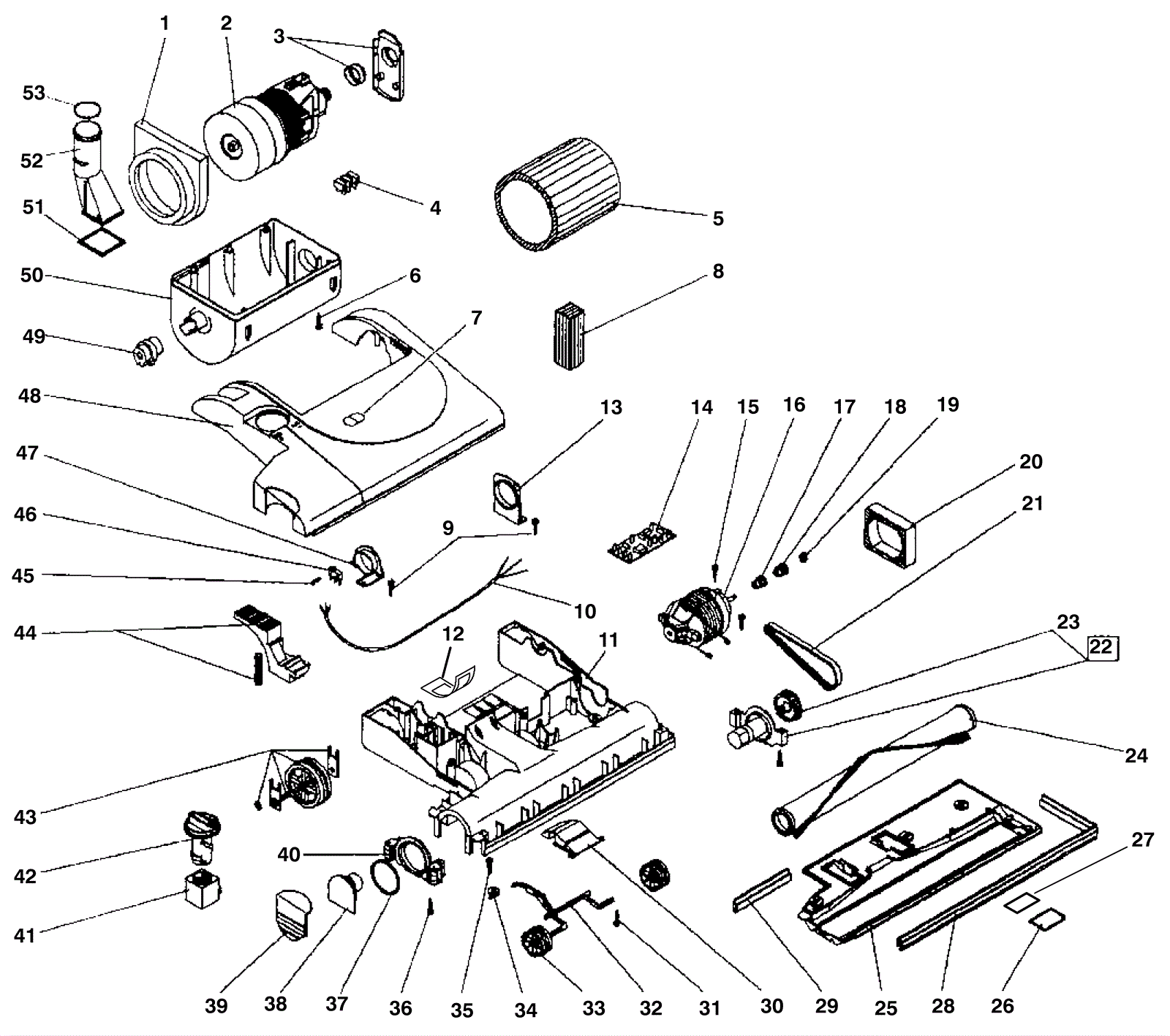

V-DMU-15 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-7564 Vacuum motor gasket $22.66 1 usually ships 1-5 days
2 175-7624 120V vacuum motor with balancing disc $506.00 1 usually ships 5-16 days
3 175-7566 Motor gasket and holder $20.02 1 usually ships 1-5 days
4 175-0027 25amp terminal strip $5.83 1 usually ships 5-16 days
5 175-7568 Vacuum motor filter (OBSOLETE) $10.12 1 usually ships 5-16 days
6 175-7539 Screw kit 3 9/10 x 32mm (pkg of 20) $11.44 1 usually ships 1-5 days
7 175-7625 Red and green lens kit (2 lenses) $10.56 1 usually ships 1-5 days
8 175-7626 Filter $11.00 1 usually ships 1-5 days
9 175-7612 Screw kit 3.9 x 19mm (pkg of 20) $6.38 1 usually ships 1-5 days
10 175-7627 Base cord $10.42 1 usually ships 1-5 days
11 175-7628 15 inch base $130.90 1 (includes 12) usually ships 1-5 days
12 175-7608 Channel gasket $9.57 1 usually ships 1-5 days
13 175-7570 Left support $13.53 1 usually ships 1-5 days
14 175-7631 Circuit board $150.04 1 usually ships 5-16 days
15 175-7612 Screw kit 3.9 x 19mm (pkg of 20) $6.38 1 usually ships 1-5 days
16 175-7632 120V brush motor $244.20 1 usually ships 5-16 days
17 175-7634 Spacer $3.83 1 usually ships 1-5 days
18 175-7635 Motor pulley $5.41 1 usually ships 1-5 days
19 999-0869 Nut M4-.7 hex coarse thread plain finish $0.99 1 ships same day
20 175-7636 Brush motor filter $10.23 1 usually ships 1-5 days
21 175-7637 Timing belt $72.05 1 usually ships 5-16 days
22 175-7638 Brush support assembly with pulley $68.09 1 (includes 23) usually ships 1-5 days
23 175-7579 Brush pulley with metal insert $13.20 1 usually ships 5-16 days
24 175-7583 15 inch brush roller $128.81 1 usually ships 5-16 days
25 175-7641 15 inch shoe with labels $67.32 1 (includes 26 and 27) usually ships 5-16 days
26 175-7586 Important decal $13.60 1 usually ships 1-5 days
27 175-7587 Warning decal $18.73 1 usually ships 1-5 days
28 175-7589 15 inch front bumper $21.56 1 usually ships 5-16 days
29 175-7590 15 inch rear bumper $12.21 1 usually ships 1-5 days
30 175-7645 Cover $12.32 1 usually ships 1-5 days
31 175-7591 Screw kit 4.8 x 13mm (pkg of 20) $17.60 1 usually ships 1-5 days
32 175-7646 Front axle $48.07 1 usually ships 5-16 days
33 175-7594 Front wheel $10.12 2 usually ships 5-16 days
34 175-7595 Cover clip kit (pkg of 20) $13.20 1 usually ships 1-5 days
35 175-7596 Screw kit (pkg of 20) $10.23 1 usually ships 1-5 days
36 175-7597 Screw kit (pkg of 20) $10.93 1 usually ships 5-16 days
37 172-1489 O-ring $8.80 1 usually ships 3-4 days
38 172-1479 Roller support $6.66 1 usually ships 6-15 days
39 175-7647 Side cover $27.28 1 usually ships 5-16 days
40 175-7601 Side support assembly with wheels $19.14 1 usually ships 1-5 days
41 175-7602 Brush adjuster block $10.89 1 usually ships 1-5 days
42 175-7603 Adjusting knob $11.33 1 usually ships 1-5 days
43 175-7648 Rear wheel assembly $54.01 1 usually ships 5-16 days
44 175-7609 12 and 15 inch foot pedal kit $85.47 1 usually ships 5-16 days
45 175-7651 Screw kit (pkg of 20) $8.25 1 usually ships 1-5 days
46 175-7652 Switch $55.88 1 usually ships 1-5 days
47 275-5787 Right hand support $41.80 1 ships same day
48 275-9734 15 inch cover with lens (black) $128.15 1 usually ships 1-5 days
49 175-7619 Latch pivot $16.61 1 usually ships 5-16 days
50 175-7620 Vacuum motor housing $118.69 1 usually ships 5-16 days
51 175-7622 Conveyor gasket $18.59 1 usually ships 5-16 days
52 175-7621 Conveyor tube $20.24 1 usually ships 5-16 days
53 175-7623 O-ring $4.40 1 ships same day
