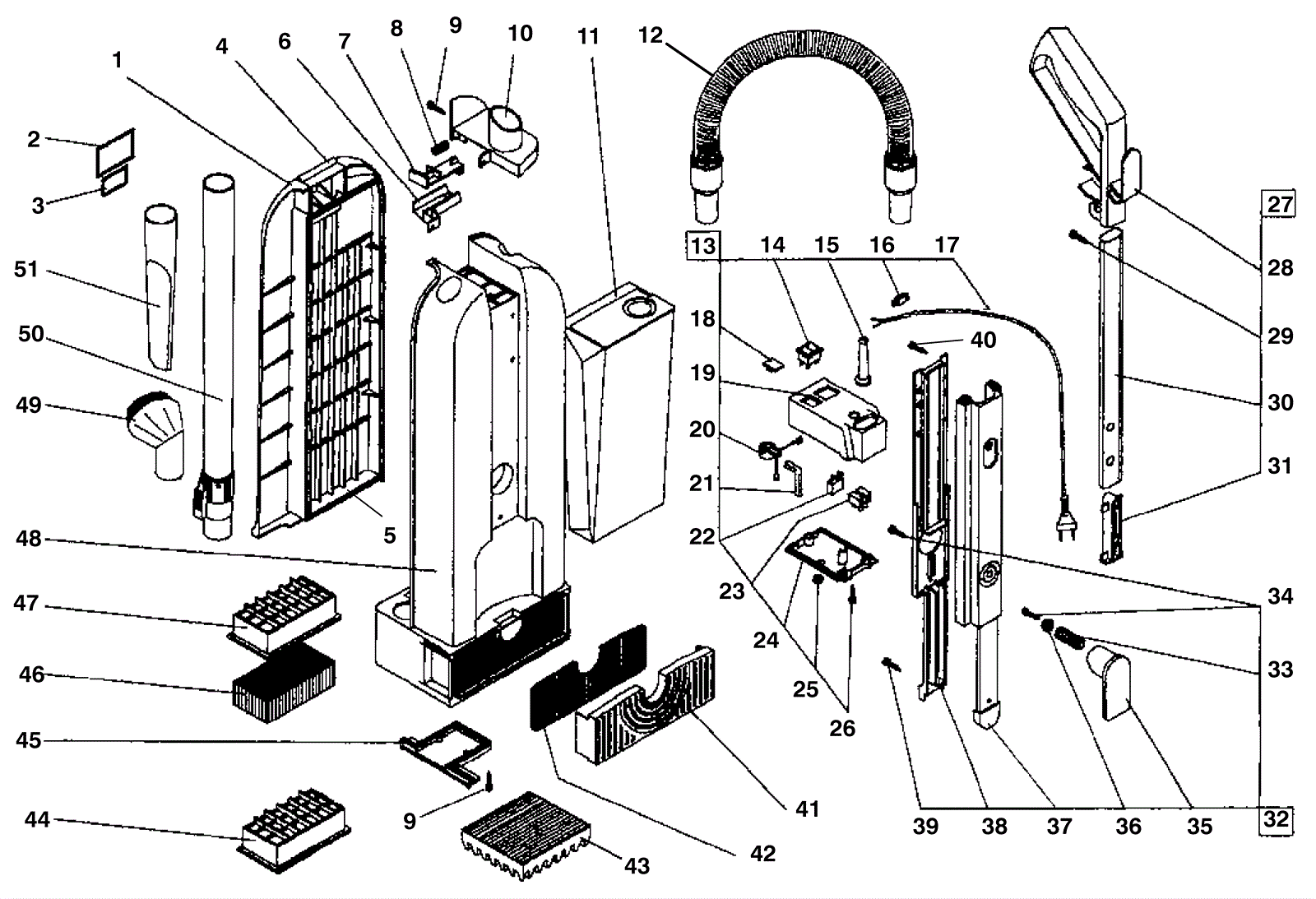

V-DMU-15 Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-7513 Housing cover with labels (black) $216.50 1 (includes 2-5) usually ships 5-16 days
2 275-8006 Warning decal $12.00 1 usually ships 1-5 days
3 175-7515 Important filter label $22.30 1 usually ships 1-5 days
4 175-7516 Bag housing cover latch with spring $24.40 1 usually ships 5-16 days
5 175-7517 Bag housing cover gasket $40.40 1 usually ships 1-5 days
6 175-7518 Button guide $12.50 1 usually ships 1-5 days
7 175-7519 Bag holder button $11.50 1 usually ships 5-16 days
8 175-7520 Bag holder button spring $3.24 1 usually ships 1-5 days
9 175-7521 Screw kit 3.9 x 16 (pkg of 20) $8.30 1 usually ships 1-5 days
10 175-7522 Hose adapter $36.30 1 usually ships 5-16 days
11a 175-7523 Paper vacuum bags and filters (pkg of 8 bags/2 filters) $28.90 1 ships same day
11b 991-9011 Paper bags and filters (pkg of 10 and 2 filters) $10.66 1 (NON-OEM) ships same day
12 175-7524 Extension hose (OBSOLETE) $131.80 1 (Hose with handle has been discontinued) usually ships 5-16 days
13 175-7525 Switch housing assembly $203.70 1 (includes 14-26) usually ships 5-16 days
14 175-7527 15amp main switch (OBSOLETE) $21.10 1 usually ships 5-16 days
15 175-7526 Strain relief $4.56 1 usually ships 5-16 days
16 175-7528 Cord clamp (OBSOLETE) $9.00 1 usually ships 5-16 days
17a 175-7529 18/3 power cord 50 foot (OBSOLETE) $88.70 1 usually ships 5-16 days
17b 991-5007 18/3 replacement power cord 50 foot (black) $29.18 1 (NON-OEM) ships same day
18 175-7530 Full bag lense (red) $6.80 1 usually ships 1-5 days
19 175-7531 Switch housing $52.80 1 usually ships 1-5 days
20 175-7532 Vacuum sensor with light $41.20 1 usually ships 1-5 days
21 175-7533 Sensor tube $4.68 1 usually ships 1-5 days
22 175-7534 RFI electrical filter $2.88 1 usually ships 1-5 days
23 175-0027 25amp terminal strip $2.39 1 usually ships 5-16 days
25 175-7536 Seal $3.48 1 usually ships 5-16 days
26 175-7539 Screw kit 3 9/10 x 32mm (pkg of 20) $10.40 1 usually ships 1-5 days
27 175-7537 Handle assembly $101.50 1 (includes 28-31) usually ships 5-16 days
28 175-7538 Handle $40.10 1 usually ships 5-16 days
29 175-7540 Screw kit 3 9/10 x 13 (pkg of 20) $6.50 1 usually ships 1-5 days
30 175-7541 Handle tube with buttons (OBSOLETE) $33.30 1 usually ships 5-16 days
31 175-7542 Handle button assembly $16.70 1 usually ships 5-16 days
32 175-7543 Front electrical panel assembly $144.50 1 (includes 33-40) usually ships 5-16 days
33 175-7544 Spring $3.72 1 usually ships 1-5 days
34 175-7545 Screw kit 3 1/2 x 16mm (pkg of 20) $8.00 1 usually ships 1-5 days
35 175-7546 Lower cord hook $11.70 1 usually ships 5-16 days
36 175-7548 Ring clip $3.12 1 usually ships 1-5 days
37 175-7547 Handle frame $56.40 1 usually ships 1-5 days
38 175-7549 Handle cover $58.60 1 usually ships 1-5 days
39 175-7550 Screw kit 3 9/10 x 9 1/2 (pkg of 20) $5.80 1 usually ships 1-5 days
40 175-7551 Screw kit 3 1/2 x 16 (pkg of 20) $5.70 1 usually ships 1-5 days
41 175-7552 Filter grill (OBSOLETE) $17.40 1 usually ships 5-16 days
42 175-7553 Exhaust filter (pkg of 10) $50.20 1 usually ships 5-16 days
43 175-7554 Foam filter (OBSOLETE) $6.90 1 usually ships 5-16 days
44 175-7555 HEPA filter $58.90 1 usually ships 5-16 days
45 175-7556 Conveyor $24.20 1 usually ships 1-5 days
46 175-7557 Motor protection filter $39.70 1 usually ships 5-16 days
47 175-7558 Filter housing $37.00 1 usually ships 5-16 days
48 275-8007 Bag housing (black) $291.30 1 usually ships 1-5 days
49 175-7561 Dusting brush $12.00 1 usually ships 5-16 days
50 172-1453 Telescopic wand $25.35 1 usually ships 1-5 days
51 175-7562 Crevice tool $18.30 1 usually ships 5-16 days
