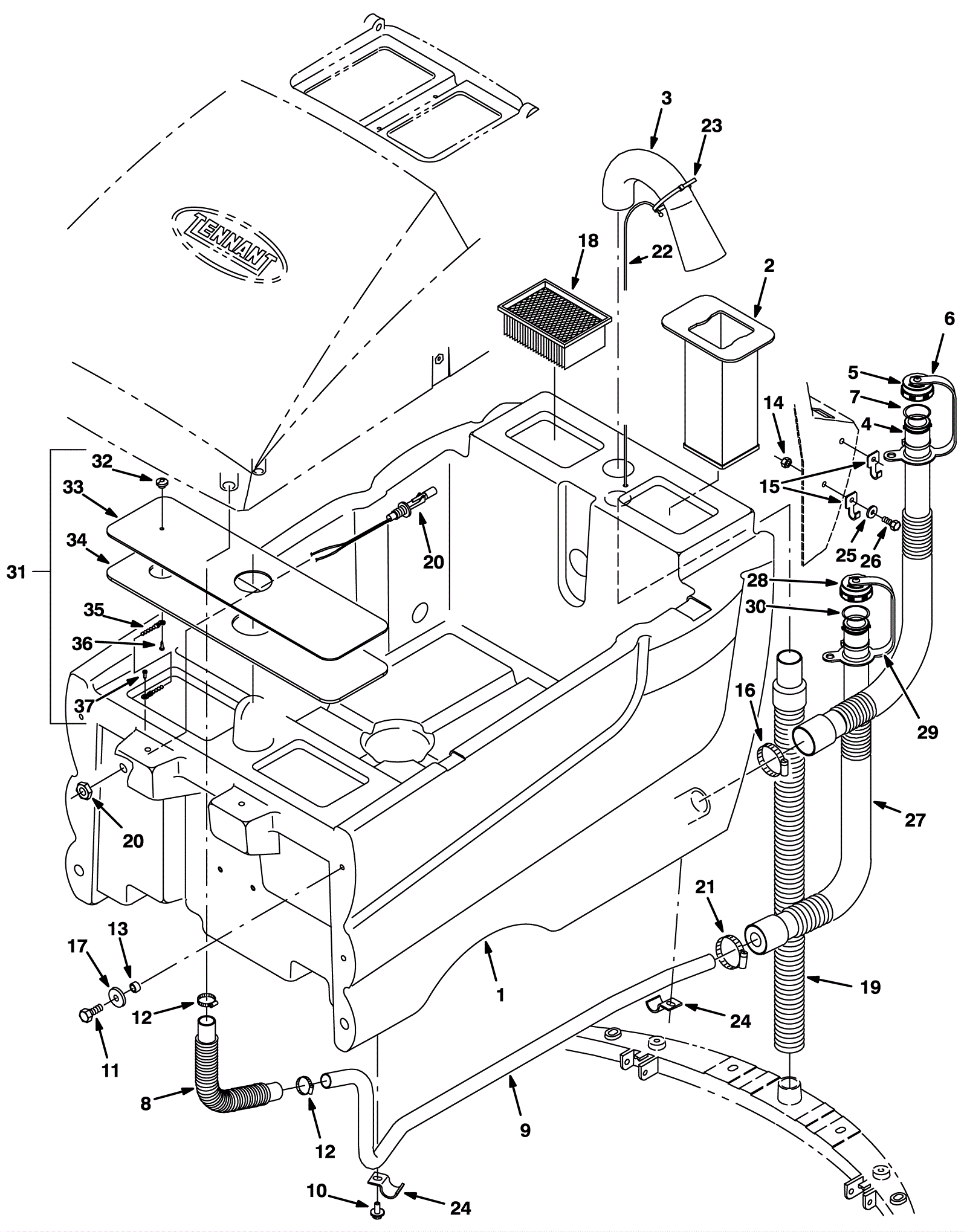

5700 SERIES Recovery Tank Assembly - After SN 9999999

#PartDescriptionPriceReqNotesAvailability
1 175-2246 Recovery Tank $2,395.36 1 usually ships 5-16 days
2a 275-9116 Debris screen $135.96 1 ships same day
2b 991-3077 Debris screen $84.91 1 (NON-OEM) ships same day
3 175-2311 Inlet hose $35.64 1 ships same day
4a 175-2250 Drain hose assembly (recovery) $80.96 1 (includes 5-7) ships same day
4b 991-5153 Drain hose assembly (recovery) $41.74 1 (NON-OEM) ships same day
5 175-4214 Drain plug assembly $19.91 1 (includes 6-7) ships same day
6 175-4214 Drain plug assembly $19.91 1 ships same day
7 175-5804 O-ring $11.44 1 ships same day
8 175-2251 Hose assembly $29.70 1 ships same day
9 175-2252 Drain tube $86.35 1 ships same day
10 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 2 ships same day
11 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 4 ships same day
12 175-2254 Hose clamp $4.84 2 ships same day
13 175-2263 Sleeve $3.08 4 ships same day
14 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 usually ships 11-24 days
15 175-2256 Hose hanger clip $6.60 2 ships same day
16 997-2003 Hose clamp $2.66 1 ships same day
17 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
18a 175-2259 Vacuum fan filter $20.24 1 ships same day
18b 991-9073 Vacuum fan filter $7.55 1 (NON-OEM) ships same day
19a 175-2258 Vacuum hose assembly with cuff $44.55 1 ships same day
19b 991-3032 Vacuum hose assembly with cuff $26.64 1 ships same day
20 175-2262 Magnetic float sensor $88.80 1 usually ships 5-16 days
21 997-2000 Hose clamp $2.37 1 ships same day
22 175-2326 Cable $13.97 1 ships same day
23 175-2202 Nylon wire tie $3.30 1 ships same day
24 175-2260 P clamp $3.96 2 usually ships 5-16 days
25 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
26 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 ships same day
27a 175-2253 Drain hose assembly (solution) $63.80 1 (includes 28-30) ships same day
27b 991-5133 Drain hose assembly (solution) $33.19 1 (NON-OEM) ships same day
28 175-4214 Drain plug assembly $19.91 1 (includes 29-30) ships same day
29 175-4214 Drain plug assembly $19.91 1 ships same day
30 175-5804 O-ring $11.44 1 ships same day
31a 275-6052 Tank update kit $83.49 1 (includes 32-37) ships same day
31b 991-3106 Tank update kit $43.18 1 (NON-OEM) ships same day
32 175-0096 Thumb knob $4.95 1 (after SN 10480873) ships same day
33 275-6284 Recovery tank cover $27.28 1 (after SN 10480873) ships same day
34 275-6285 Recovery tank cover gasket $10.01 1 (after SN 10480873) ships same day
35 175-5129 Ball chain #10 stainless steel $3.96 1 (after SN 10480873) usually ships 5-16 days
36 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 1 (after SN 10480873) ships same day
37 175-2146 Screw 6-20 x 1/2 pan head $2.42 1 (after SN 10480873) usually ships 5-16 days
