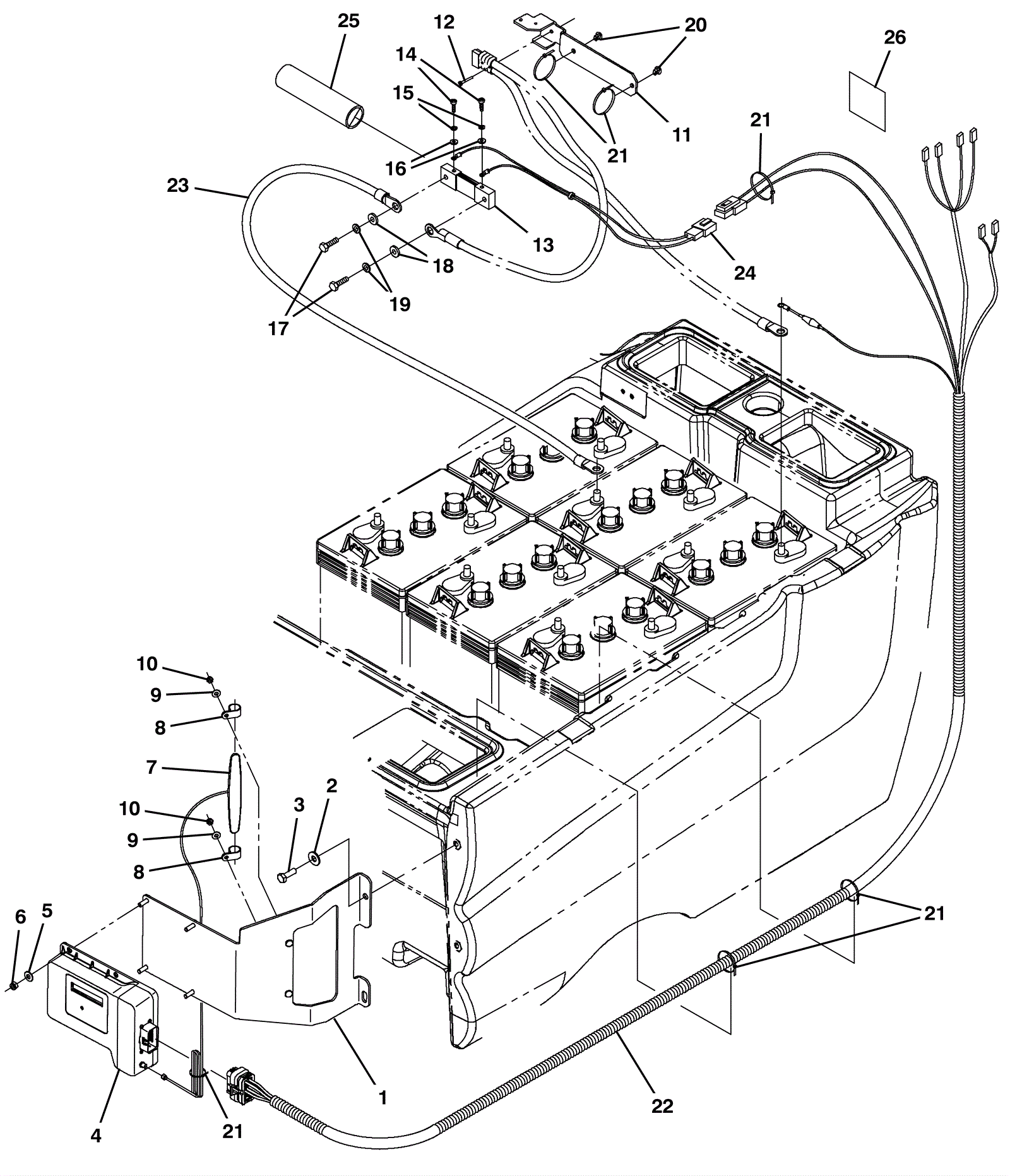

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-1149
|
Controller mounting bracket |
1 |
|
|
2 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
3 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
2 |
|
|
4 |
275-2615
|
Telemetry control box assembly kit |
1 |
|
|
5 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
6 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
4 |
|
|
7 |
375-0171
|
18 inch antenna (Tennant Industrial) |
1 |
|
|
8 |
175-0988
|
P clamp |
2 |
|
|
9 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
10 |
175-2894
|
Nut M5-.8 hex nylon locking |
2 |
|
|
11 |
375-1150
|
Connector bracket |
1 |
|
|
12 |
999-1221
|
Screw M3-.5 x 25mm pan head stainless steel |
2 |
|
|
13 |
375-1151
|
Shunt |
1 |
|
|
14 |
175-3370
|
Screw M4-.7 x 8mm pan head stainless steel |
2 |
|
|
15 |
999-1083
|
Washer #8 internal star lock stainless steel |
2 |
|
|
16 |
999-1158
|
Washer #6 flat stainless steel |
2 |
|
|
17 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
2 |
|
|
18 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
19 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
2 |
|
|
20 |
275-7625
|
Plastic clip |
2 |
|
|
21 |
175-7795
|
Cable tie |
15 |
|
|
22a |
375-1152
|
Telemetric wiring harness (OBSOLETE) |
1 |
(includes 22b) |
|
22b |
275-7904
|
Fuse (Tennant Industrial) |
1 |
|
|
23 |
375-1153
|
Cable (black) |
1 |
|
|
24 |
375-1154
|
Shunt wiring harness |
1 |
|
|
25 |
375-1155
|
Heatshrink sleeve |
1 |
|
|
26 |
275-7899
|
Telemetry decal |
1 |
|
|
