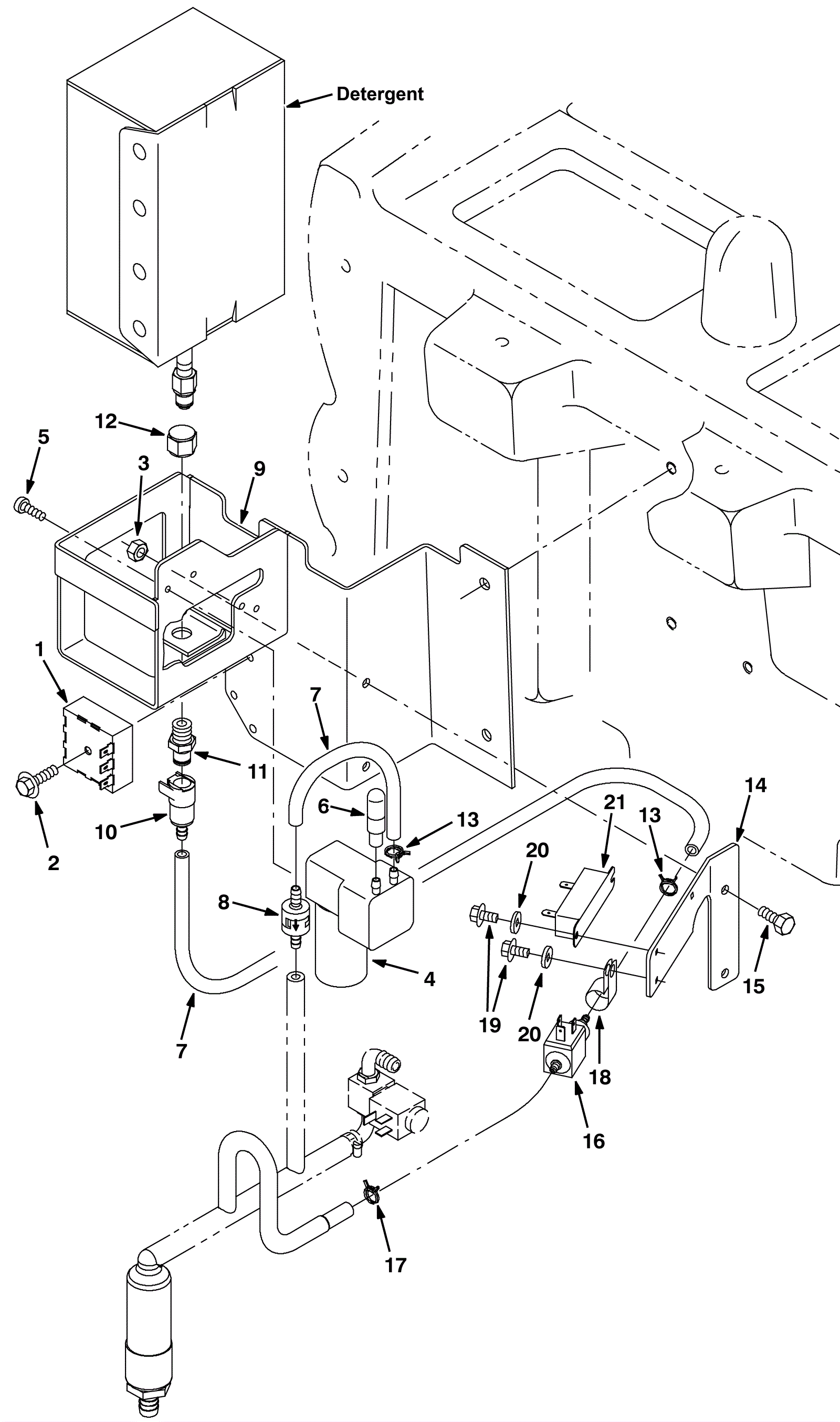

5680 FaST Air Pump and Detergent Assembly - Before SN 10361690

#PartDescriptionPriceReqNotesAvailability
1 275-1182 Timer 36vdc $125.20 1 usually ships 1-5 days
2 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 1 ships same day
3 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
4a 175-5316 Elevated air pump 36vdc $842.60 1 (includes 4b) usually ships 1-5 days
4b 175-5317 Air compressor diaphragm repair kit $290.50 1 usually ships 1-5 days
5 175-9366 Screw 8-10 x 1/2 pan head plastic $3.60 2 ships same day
6 175-5318 Filter assembly $25.30 1 usually ships 5-16 days
7 175-9693 Hose 1/4 x 8 foot (Tennant Industrial) $94.52 1 usually ships 5-16 days
8 175-5315 Check valve $74.70 1 usually ships 5-16 days
9 275-1186 Bracket weldment box $107.30 1 usually ships 1-5 days
10 175-5311 Female fitting with valve $50.40 1 usually ships 5-16 days
11 175-5312 Male coupling strainer fitting $27.20 1 usually ships 5-16 days
12 175-5313 Plastic cap fitting $3.60 1 usually ships 5-16 days
13 175-5304 Hose clamp $3.00 2 ships same day
14 275-1187 Detergent pump mounting plate $14.20 1 usually ships 1-5 days
15 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
16 175-8719 24v detergent pump $133.50 1 usually ships 5-16 days
17 275-1189 CLAMP, HOSE, WIR, .29 - .31 [DBL WIRE] (Tennant Industrial) $4.68 1 usually ships 1-5 days
18 175-3168 P clamp $3.60 1 usually ships 5-16 days
19 999-0777 Screw M4-.7 x 10mm hex head plain finish $0.99 3 ships same day
20 999-0412 Washer #8 SAE flat $0.99 3 ships same day
21 275-2597 Resistor (Tennant Industrial) $171.84 1 usually ships 1-5 days
