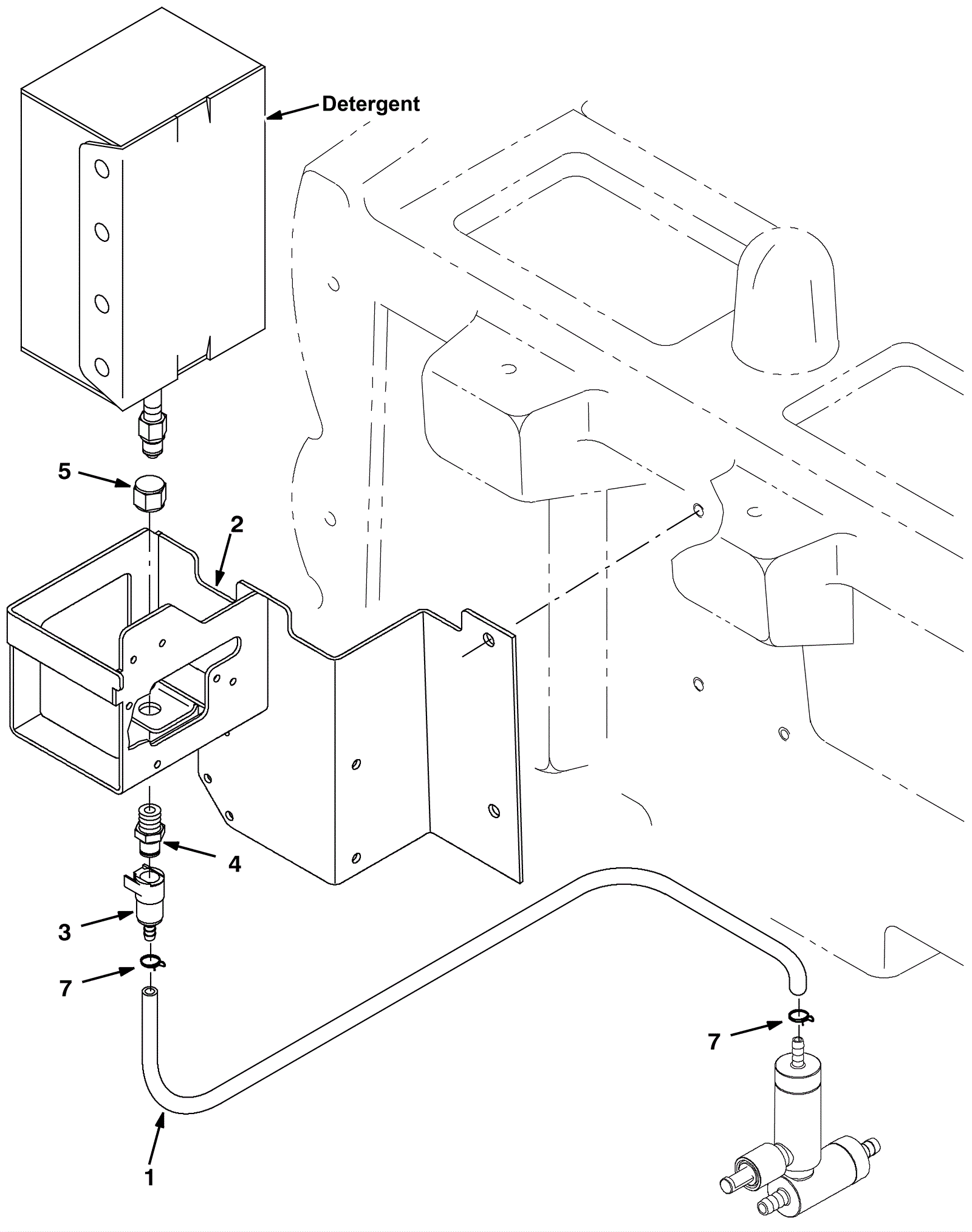

FaST Detergent Assembly - After SN 10361689
Click to enlarge
#
Part
Description
Req
Notes
Availability
1
175-7928
Hose 1/4 x 26 inch
1
2
275-1186
Bracket weldment box
1
3
175-5311
Female fitting with valve
1
4
175-5312
Male coupling strainer fitting
1
5
175-5313
Plastic cap fitting
1
7
175-5304
Hose clamp
2
