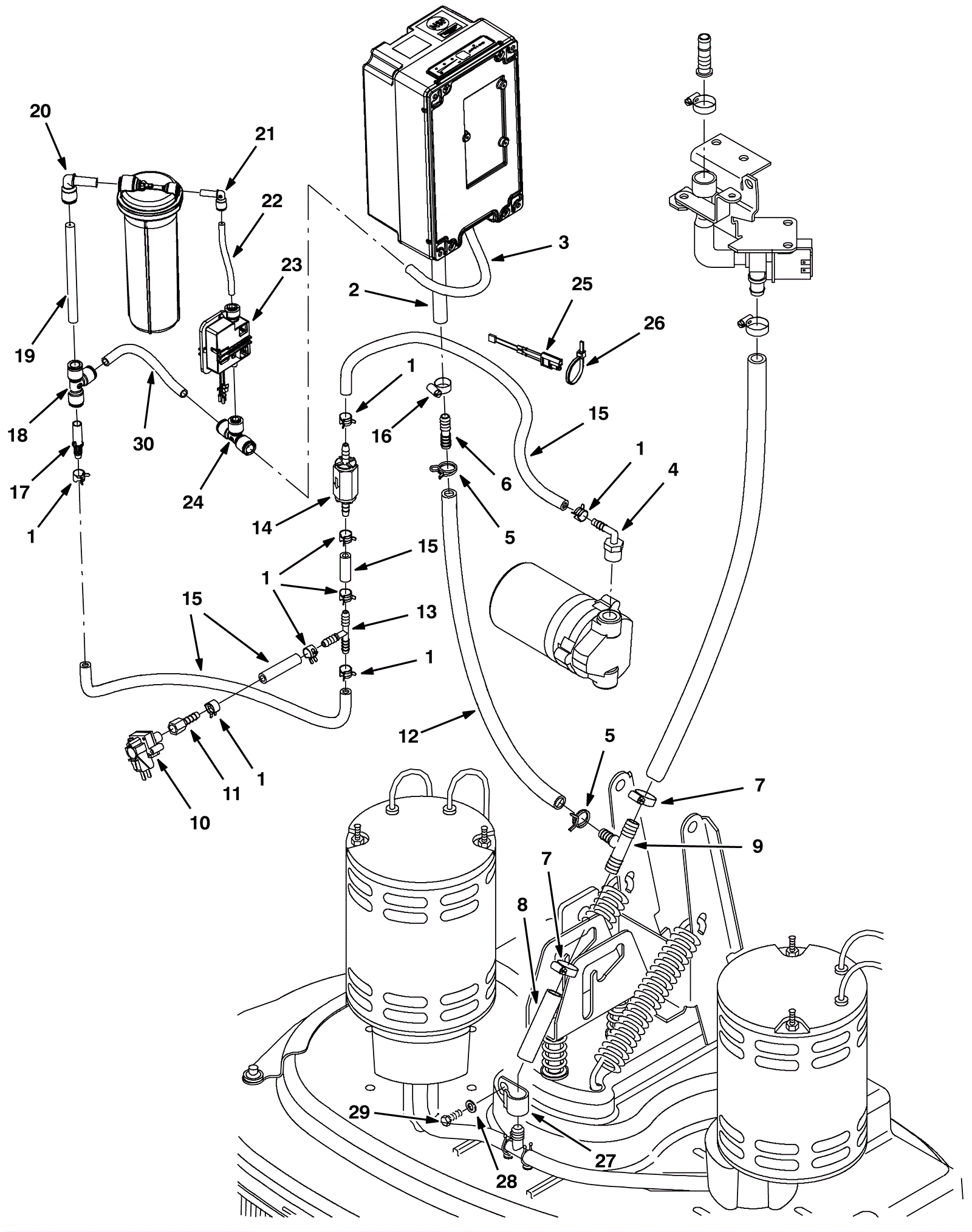

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-1656
|
Hose clamp |
8 |
|
|
2 |
375-0283
|
Molded hose |
1 |
|
|
3 |
175-5305
|
Hose 1/4 x 3 foot |
1 |
|
|
4 |
275-2390
|
90 degree fitting |
1 |
|
|
5 |
175-5304
|
Hose clamp |
2 |
|
|
6 |
275-8703
|
Straight plastic fitting (Tennant Industrial) |
1 |
|
|
7 |
175-6081
|
Hose clamp |
2 |
|
|
8 |
175-4976
|
1 foot hose (OBSOLETE) |
1 |
|
|
9 |
175-4810
|
Tee fitting |
1 |
|
|
10 |
275-4944
|
Pressure switch |
1 |
|
|
11 |
175-3529
|
Brass fitting |
1 |
|
|
12 |
275-1534
|
3 foot PVC hose (braided) (Tennant Industrial) |
1 |
|
|
13 |
175-7303
|
1/4 inch union tee |
1 |
|
|
14 |
375-1136
|
Check valve |
1 |
|
|
15 |
375-1137
|
Hose |
1 |
|
|
16 |
175-3594
|
Hose clamp |
1 |
|
|
17 |
375-1138
|
Plastic fitting |
1 |
|
|
18 |
375-0076
|
Plastic tee fitting |
1 |
|
|
19 |
375-0143
|
Hose |
1 |
|
|
20 |
375-0075
|
90 degree elbow |
1 |
|
|
21 |
375-0079
|
90 degree elbow |
1 |
|
|
22 |
375-0145
|
PVC hose |
1 |
|
|
23 |
375-0146
|
Dispenser pump assembly |
1 |
|
|
24 |
375-0148
|
Plastic tee fitting |
1 |
|
|
25 |
275-4752
|
Capacitor plug |
1 |
|
|
26 |
175-7795
|
Cable tie |
1 |
|
|
27 |
175-2108
|
P clamp |
1 |
|
|
28 |
999-0016
|
Washer 1/4 flat plain finish |
1 |
|
|
29 |
175-3289
|
Bolt M5-.8 x 16mm hex head |
1 |
|
|
30 |
175-9691
|
Hose 1/4 x 1 foot (Tennant Industrial) |
1 |
|
|
