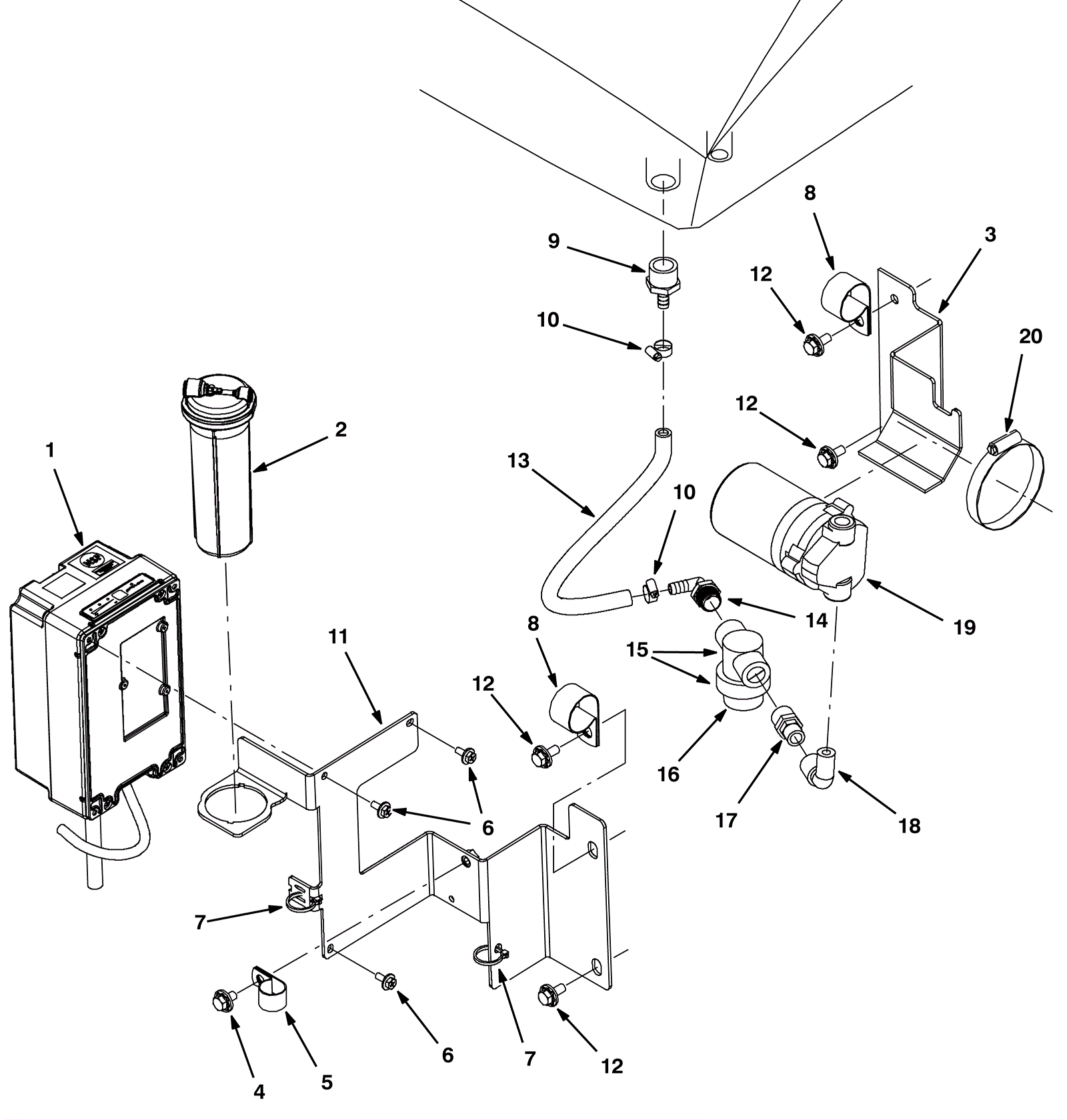

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-0142
|
ec-H2O module kit |
1 |
(after SN 10740686) |
|
2 |
375-0144
|
Nanoclean cartridge |
1 |
(after SN 10740686) |
|
3 |
275-1201
|
Solution pump bracket |
1 |
(after SN 10403556) |
|
4 |
375-1163
|
Screw M8-1.25 x 16mm with washer stainless steel (OBSOLETE) |
1 |
(after SN 10403556) |
|
5 |
175-2260
|
P clamp |
1 |
(after SN 10403556) |
|
6 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
3 |
(after SN 10740686) |
|
7 |
175-2202
|
Nylon wire tie |
2 |
(after SN 10740686) |
|
8 |
175-5314
|
P clamp (Tennant Industrial) |
2 |
(after SN 10581869) |
|
9 |
275-8710
|
Straight plastic fitting (Tennant Industrial) |
1 |
(after SN 10403556) |
|
10 |
175-3594
|
Hose clamp |
2 |
(after SN 10403556) |
|
11 |
375-1135
|
ec-H20 module mounting bracket assembly |
1 |
(after SN 10740686) |
|
12 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
4 |
(after SN 10403556) |
|
13 |
275-1534
|
3 foot PVC hose (braided) (Tennant Industrial) |
1 |
(after SN 10403556) |
|
14 |
175-6942
|
Plastic fitting (Tennant Industrial) |
1 |
(after SN 10740686) |
|
15 |
275-1200
|
Inline filter |
1 |
(after SN 10403556) (includes 16) |
|
16a |
175-5866
|
Mesh filter screen |
1 |
(after SN 10403556) (OEM) |
|
16b |
991-8569
|
Mesh filter screen stainless steel |
1 |
(NON-OEM) |
|
17 |
175-9869
|
Reducer fitting 3/8 x 1/2 |
1 |
(after SN 10581869) |
|
18 |
175-8701
|
Plastic fitting |
1 |
(after SN 10581869) |
|
19 |
275-4753
|
24V solution pump |
1 |
(after SN 10403556) |
|
20 |
997-2009
|
Hose clamp |
1 |
(after SN 10403556) |
|
