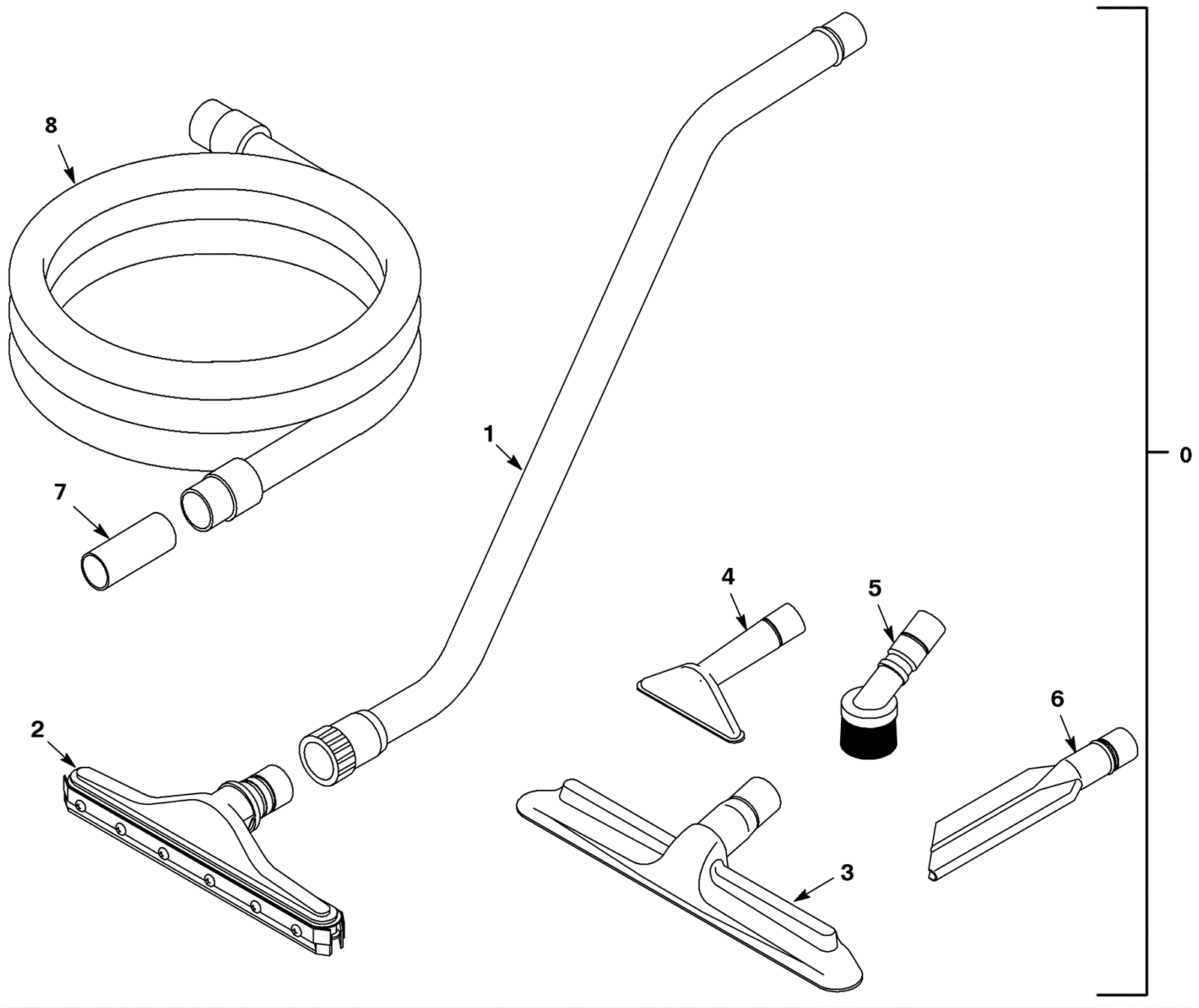

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
175-1501
|
Wet/dry carpet tool assembly |
1 |
(includes 1a, 1c-1d, 2a-2b, 3b, 4-6) (wet/dry) |
|
0b |
175-1506
|
Standard carpet tool assembly |
1 |
(includes 1b-1d, 2a-2b, 3b) (standard) |
|
0c |
175-2632
|
Wet pick-up carpet tool assembly |
1 |
(includes 1a, 1c-1d, 2a-2b, 7-8) |
|
1a |
175-2633
|
Aluminum double bend wand |
1 |
(includes 1c-1d) (wet/dry) |
|
1b |
175-5761
|
Coupling nut |
1 |
(includes 1c-1d) (standard) |
|
1c |
175-5760
|
Locking ring |
1 |
(includes 1c-1d) (wet pickup) |
|
1d |
175-5761
|
Coupling nut |
1 |
|
|
2a |
175-2634
|
14 inch squeegee floor tool |
1 |
(includes 2b) |
|
2b |
175-5762
|
Squeegee blade (pkg of 4) |
1 |
|
|
3a |
175-1505
|
15 inch floor and rug tool |
1 |
(wet/dry) |
|
3b |
175-1508
|
14 inch scalloped carpet tool |
1 |
(standard) |
|
4 |
175-1503
|
5 inch upholstery tool |
1 |
(wet/dry) |
|
5 |
175-1502
|
3 inch round dusting brush |
1 |
(wet/dry) |
|
6 |
175-1504
|
11 inch crevice tool |
1 |
(wet/dry) |
|
7 |
175-8758
|
Connector |
1 |
(wet pickup) |
|
8 |
175-2635
|
Vacuum hose 1 1/2 x 10 foot |
1 |
(wet pickup) |
|
