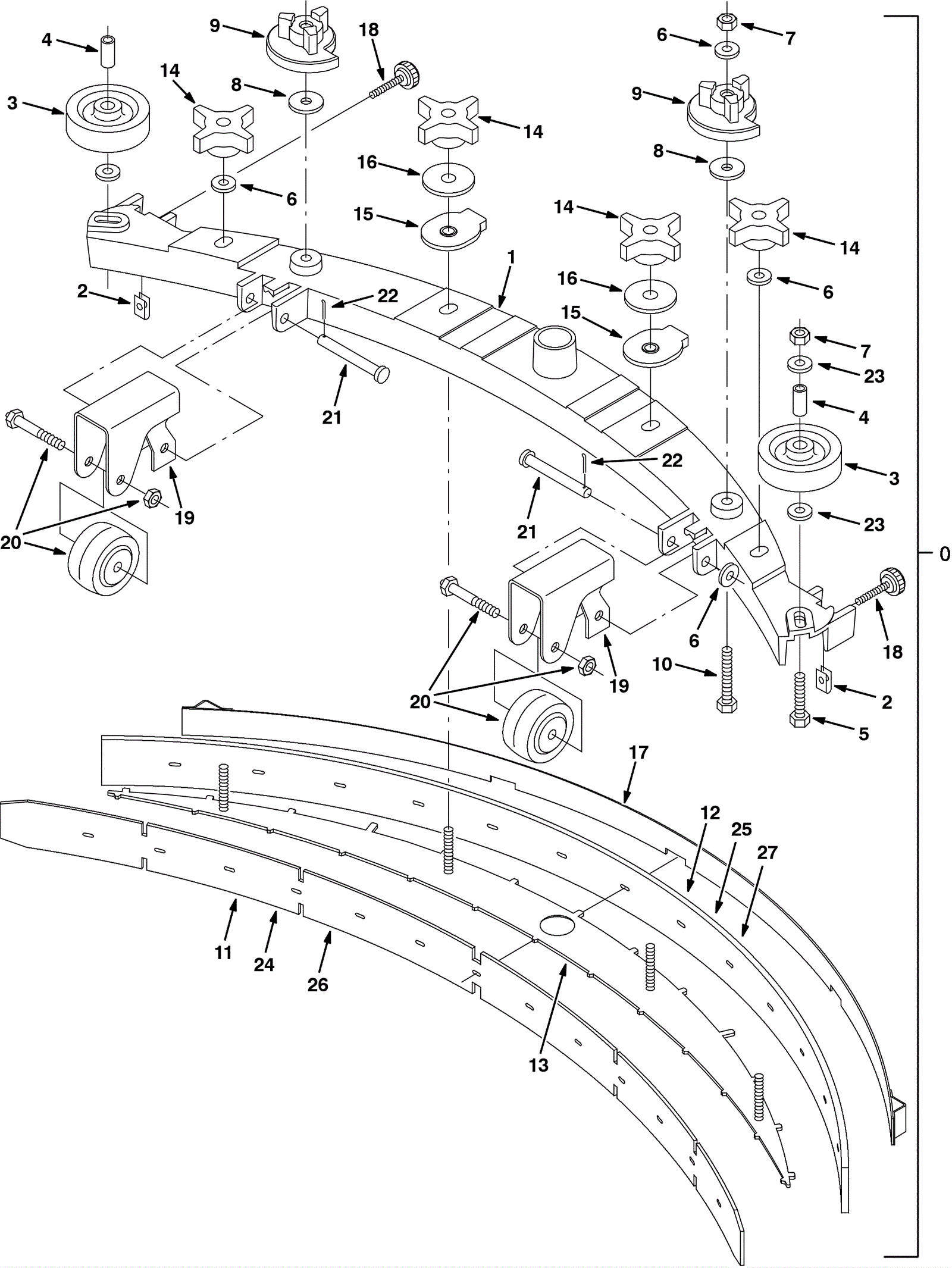

7080 Rear Squeegee Assembly - 32 inch

#PartDescriptionPriceReqNotesAvailability
0 175-5442 Squeegee assembly kit rear 32 inch (800mm) $1,497.54 1 (includes 1-23) usually ships 1-5 days
1 175-5443 Squeegee casting frame 32 inch $279.84 1 usually ships 10-16 days
2 175-2291 Nut 1/4-20 speed clip $3.96 2 ships same day
3a 175-7919 Guide wheel $5.50 2 ships same day
3b 991-8570 Bumper wheel $2.97 2 (NON-OEM) ships same day
4 175-2249 Sleeve $3.83 2 ships same day
5 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
6 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 6 ships same day
7 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 4 ships same day
8 175-2309 Washer $4.88 2 ships same day
9 175-2183 Adjustment cam $8.36 2 ships same day
10 999-0909 Bolt M8-1.25 x 70mm hex head stainless steel $3.83 2 ships same day
11a 175-5385 Squeegee blade 32 in kit (rear gum rubber/front linatex) $79.97 1 (includes 11b-12) ships same day
11b 175-3592 Squeegee blade 32 inch linatex front $25.30 1 ships same day
11c 991-1266 SQUEEGEE KIT, 800MM, GUM $50.95 1 (NON-OEM) ships same day
11d 991-9241 SQUEEGEE KIT, 800MM, URE $87.31 1 (NON-OEM) usually ships 14-21 days
12 175-3593 Squeegee blade 32 inch gum rubber rear (tan) $27.50 1 ships same day
13 175-5444 Squeegee blade retainer plate 32 inch $259.05 1 usually ships 10-16 days
14 175-2208 Plastic star knob $4.88 4 ships same day
15 175-3469 Squeegee mounting ring $13.31 2 ships same day
16 175-3470 Washer .53b 1.88d .12 steel plated $4.88 2 usually ships 10-16 days
17 175-5445 Squeegee retainer weldment $62.92 1 ships same day
18 175-2180 Knob $6.05 2 ships same day
19 175-5297 Squeegee wheel bracket $32.23 2 usually ships 10-16 days
20 175-5298 Squeegee wheel assembly $97.68 2 ships same day
21 173-1595 Clevis pin (OBSOLETE) $4.88 2 usually ships 10-16 days
22 175-6176 Cotter pin $3.04 2 ships same day
23 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
24a 175-5382 Squeegee blade 32 inch kit urethane $166.54 1 (includes 24b-25) ships same day
24 175-5383 Squeegee blade 32 inch urethane front $73.92 1 ships same day
25 175-5384 Squeegee blade 32 inch urethane rear $106.15 1 ships same day
26a 175-5446 Squeegee replacement kit linatex 32 inch $118.80 1 (includes 26b-27) usually ships 1-5 days
26b 175-3592 Squeegee blade 32 inch linatex front $25.30 1 ships same day
27 175-5381 Squeegee blade 32 inch linatex rear (red) $34.43 1 ships same day
