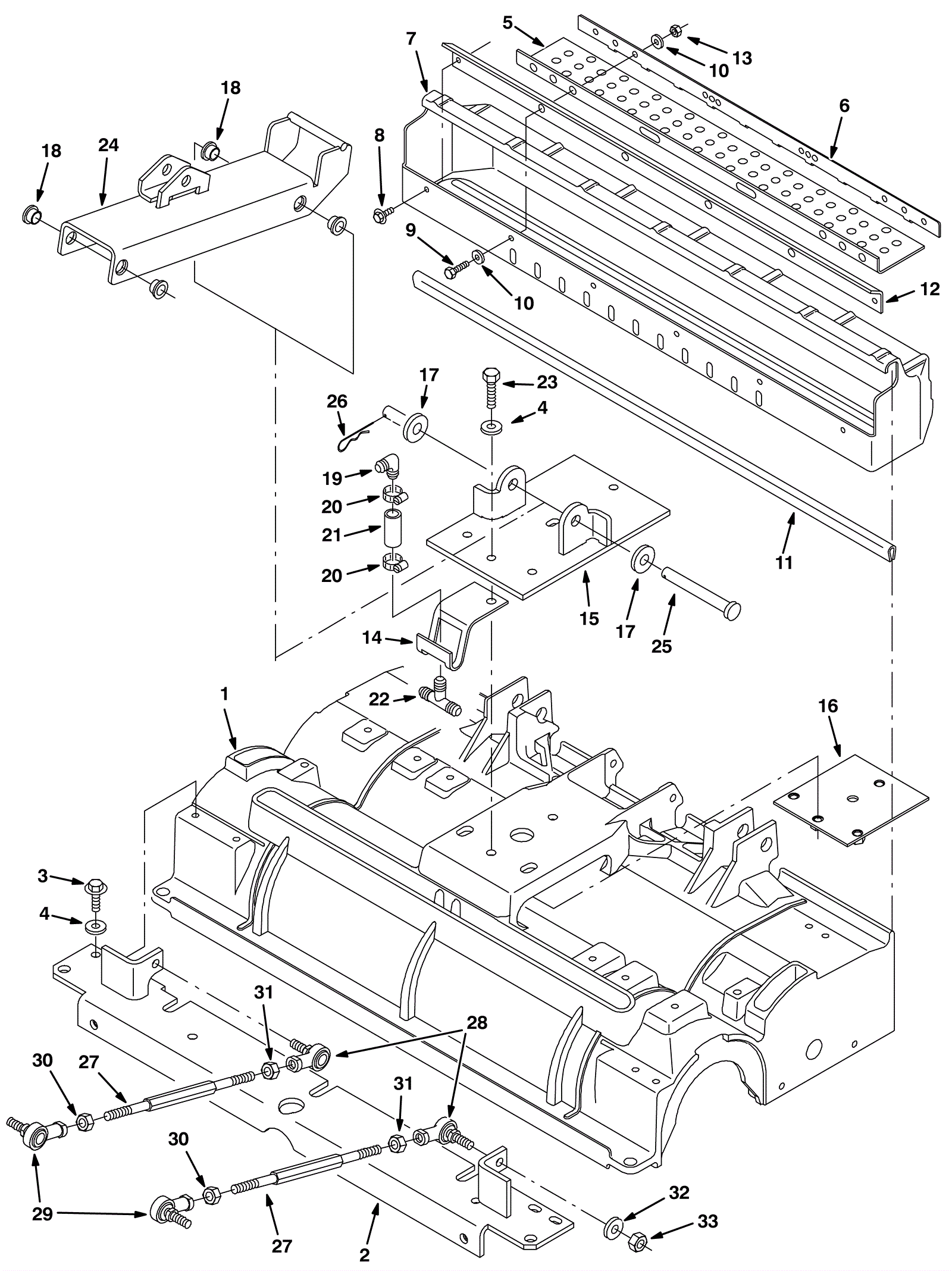

7080 Frame Assembly - Cylindrical - 32 inch

#PartDescriptionPriceReqNotesAvailability
1 275-1252 32 inch (800mm) cylindrical housing $1,835.79 1 usually ships 1-5 days
2 175-5404 32 in cylindrical lift tool angle weldment $551.98 1 usually ships 1-5 days
3 175-2888 Bolt M8-1 1/4 x 25mm hex head $5.28 4 usually ships 10-13 days
4 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 3 ships same day
5a 175-2504 32 inch debris tray kit $413.60 1 (includes 5b-13) usually ships 10-13 days
5b 175-2517 Skirt $38.17 1 usually ships 10-13 days
6 175-2399 Debris tray skirt $47.41 1 usually ships 10-13 days
7 175-2505 32 inch debris tray $295.02 1 usually ships 1-5 days
8 175-3298 Bolt M6-1 x 12mm hex head $4.49 2 ships same day
9 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 4 ships same day
10 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
11 175-2507 Channel $31.68 1 usually ships 1-5 days
12 175-2506 32 inch debris tray lip $40.81 1 usually ships 1-5 days
13 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 4 ships same day
14 175-2521 Hose guide bracket $24.86 1 usually ships 10-13 days
15 175-5397 Cylce lift tool plate weldment $131.01 1 usually ships 1-5 days
16 175-5398 Tool lift mounting plate $39.05 1 usually ships 10-13 days
17 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
18 175-3335 Flanged bushing $16.94 4 usually ships 10-13 days
19 175-5233 Plastic fitting $8.14 1 usually ships 10-13 days
20 175-6081 Hose clamp $4.84 2 ships same day
21 175-5399 Clear pvc hose 1/2 x 11/16 x 1 1/2 $5.28 1 usually ships 10-13 days
22 175-3329 Plastic tee fitting $6.49 1 usually ships 10-13 days
23 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.24 4 ships same day
24 175-5400 Lift tool channel weldment $169.73 1 usually ships 1-5 days
25 175-5401 Clevis pin 1/2 x 4 1/2 $5.50 1 usually ships 10-13 days
26 175-5402 Cotter hair pin $8.80 1 usually ships 1-5 days
27 175-3319 Threaded rod $66.99 2 ships same day
28 175-3320 Rod end left side $45.76 2 usually ships 10-13 days
29 175-3321 Rod end right side $45.76 2 usually ships 10-13 days
30 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
31 999-0319 Nut 3/8-24 hex left hand plain finish $1.98 2 ships same day
32 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
33 175-3322 Nut 3/8-24 hex lock $5.94 2 usually ships 10-13 days
