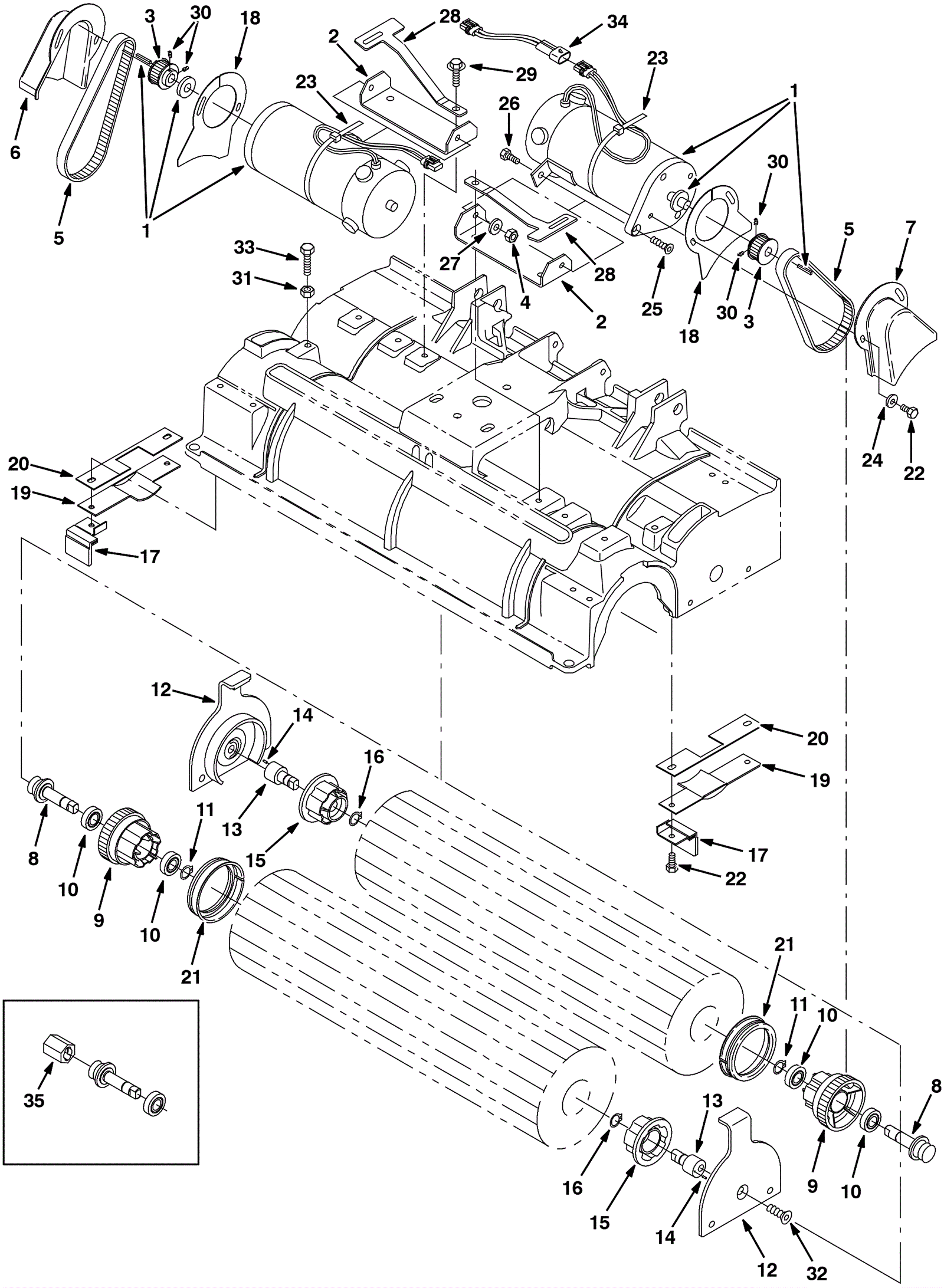

7080 Drive Motor Assembly - Cylindrical - 28 inch

#PartDescriptionPriceReqNotesAvailability
1a 175-2056 Brush motor assembly $1,643.92 2 (after SN 10355468) ships same day
1b 175-2056 Brush motor assembly $1,643.92 2 (before SN 10355469) ships same day
2 175-2464 Mounting motor bracket $19.58 2 usually ships 5-16 days
3 175-2465 Drive sprocket $67.87 2 usually ships 5-16 days
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 ships same day
5 175-2034 Cogged drive belt $102.74 2 usually ships 5-16 days
6 175-2490 Right belt guard $58.85 1 usually ships 5-16 days
7 175-2491 Left belt guard $58.85 1 ships same day
8a 175-2468 Brush drive plug assembly $214.83 2 (includes 8b-11) usually ships 5-16 days
8b 175-2469 Shaft drive plug $95.70 1 ships same day
9 175-2470 Brush drive plug $100.32 1 ships same day
10 175-2471 Ball bearing $18.81 2 ships same day
11 175-2472 Retaining ring $2.42 1 usually ships 5-16 days
12 175-2474 Brush door $52.91 2 ships same day
13a 175-2475 Idler plug assembly $107.36 2 (includes 13b-16) usually ships 5-16 days
13b 175-2476 Idler plug shaft $73.15 1 usually ships 5-16 days
14 175-2477 Roll pin $2.42 1 usually ships 5-16 days
15 175-2478 Brush idler plug $28.27 1 ships same day
16 175-2472 Retaining ring $2.42 1 usually ships 5-16 days
17 175-2486 Water deflector $41.69 2 usually ships 5-16 days
18 175-2489 Belt shield $12.87 2 usually ships 5-16 days
19 175-2487 Shield bracket $30.26 2 usually ships 5-16 days
20 175-2488 Shield gasket $4.29 2 usually ships 5-16 days
21 175-2495 Seal ring $56.54 2 ships same day
22 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 8 ships same day
23 175-2226 Nylon wire tie $3.30 2 ships same day
24 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
25 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 2 ships same day
26 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
27 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
28 175-2482 Door spring $26.07 2 usually ships 5-16 days
29 175-2888 Bolt M8-1 1/4 x 25mm hex head $3.96 4 usually ships 5-16 days
30 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish $0.99 4 ships same day
31 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
32 175-2863 Screw M10-1.5 x 20mm flat head stainless steel nylok $3.96 2 usually ships 5-16 days
33 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
34 175-5395 Jumper reverse wire assembly $43.34 1 usually ships 1-5 days
35 275-1209 Shaft removal tool $302.83 1 usually ships 5-16 days
