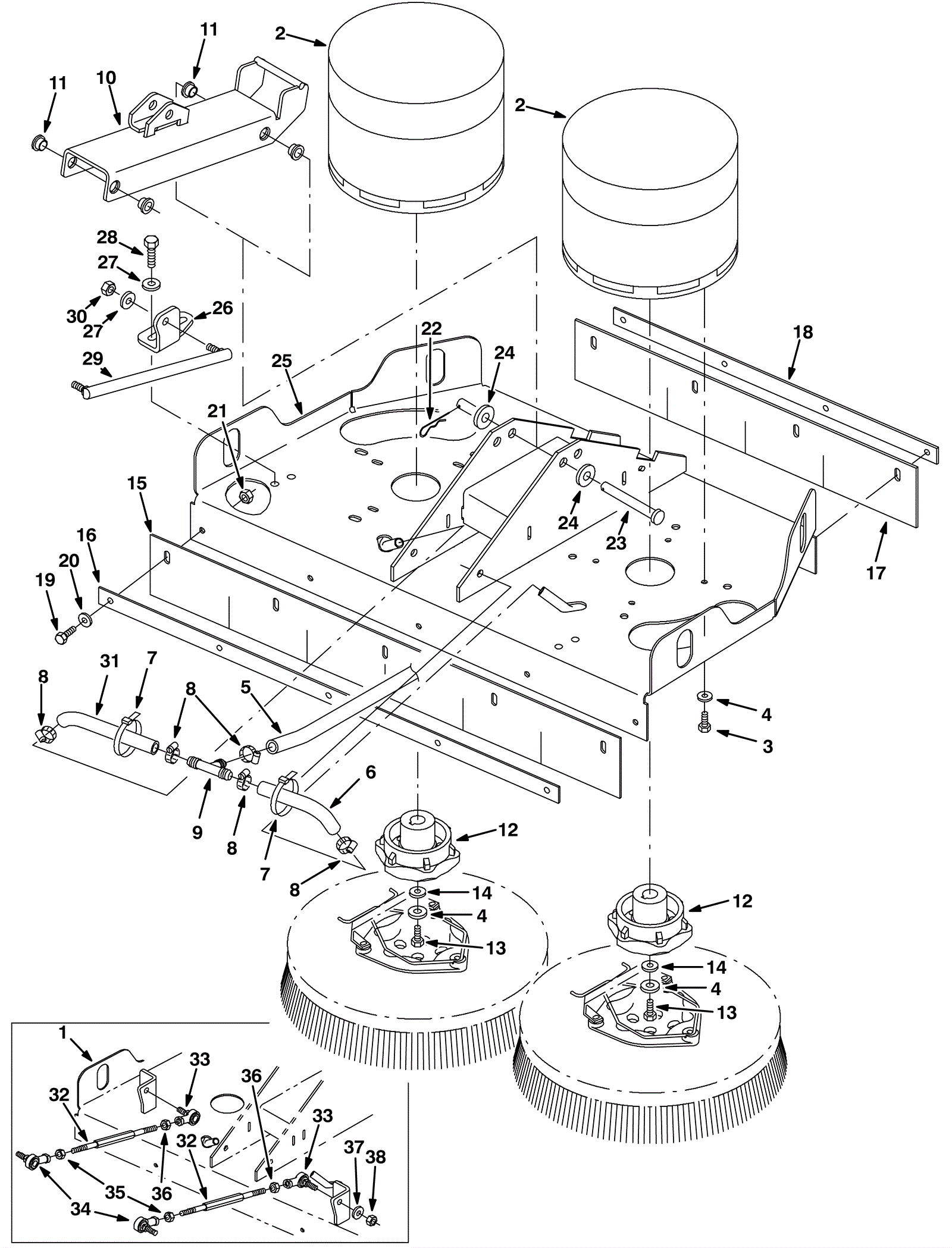

7080 Drive Motor Assembly - Disk - 32 inch - before SN 10214061

#PartDescriptionPriceReqNotesAvailability
1 175-5344 Scubhead kit 800mm (OBSOLETE) Call for price 1 (before SN 10188433) usually ships 1-5 days
2 175-3325 Brush motor kit $1,404.26 2 usually ships 5-16 days
3 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 8 ships same day
4 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 10 ships same day
5 175-3326 Vinyl hose $92.29 25 in usually ships 1-5 days
6 175-5249 Hose 1/2 x 1 foot (Tennant Industrial) $29.23 7 in usually ships 5-16 days
7 175-2226 Nylon wire tie $3.30 2 ships same day
8 175-6081 Hose clamp $4.84 5 ships same day
9 175-3329 Plastic tee fitting $5.83 1 usually ships 5-16 days
10 175-4977 Lifting weldment $254.10 1 usually ships 1-5 days
11 175-3335 Flanged bushing $15.40 4 usually ships 1-5 days
12 275-1171 Brush drive hub $174.35 2 ships same day
13 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
14 999-1407 Washer 5/16 belleville $3.04 2 ships same day
15 175-5345 Front skirt $32.78 1 usually ships 5-16 days
16 175-5346 Front skirt retainer strap $144.87 1 usually ships 1-5 days
17 175-5347 Rear skirt $21.89 1 usually ships 1-5 days
18 175-5348 Rear skirt retainer strap $124.19 1 usually ships 1-5 days
19 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 9 ships same day
20 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 9 ships same day
21 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 9 ships same day
22 175-2117 Cotter pin $3.96 1 ships same day
23 175-2116 Clevis pin $5.83 1 usually ships 5-16 days
24 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
25 675-9445 Head kit 800mm Call for price 1 (between SN10188433 and SN 10214060) usually ships 5-16 days
26 175-4988 Linkage bracket $33.44 2 (between SN10188433 and SN 10214060) usually ships 1-5 days
27 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 6 (between SN10188433 and SN 10214060) ships same day
28 175-4989 Screw 10 x 1 1/2 x 20 stainless steel $6.93 4 (between SN10188433 and SN 10214060) usually ships 1-5 days
29 175-5392 Balljoint link 10 x 1 1/2 $90.20 2 (between SN10188433 and SN 10214060) usually ships 1-5 days
30 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 2 (between SN10188433 and SN 10214060) ships same day
32 175-5249 Hose 1/2 x 1 foot (Tennant Industrial) $29.23 7 in usually ships 5-16 days
32 175-3319 Threaded rod $61.27 2 (before SN 10188433) ships same day
33 175-3320 Rod end left side $41.80 2 (before SN 10188433) usually ships 5-16 days
34 175-3321 Rod end right side $41.80 2 (before SN 10188433) usually ships 5-16 days
35 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 (before SN 10188433) ships same day
36 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 (before SN 10188433) ships same day
37 999-0319 Nut 3/8-24 hex left hand plain finish $1.98 2 (before SN 10188433) ships same day
38 175-3322 Nut 3/8-24 hex lock $5.39 4 (before SN 10188433) usually ships 5-16 days
